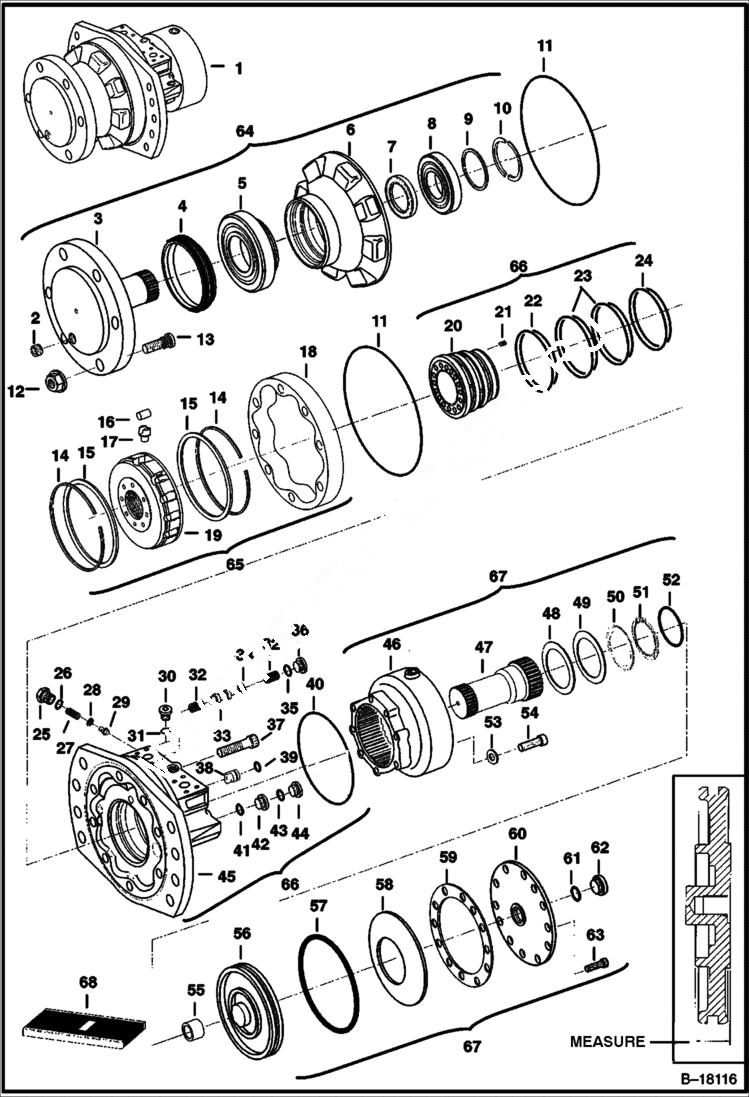

Запчасти Bobcat 800s HYDROSTATIC MOTOR & BRAKE HYDROSTATIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290 - NLA - model 5840-003-063 and 80674432 - Order either 6690156 or 6690156REM motor & 7107787 sprocket - Was 6674888 - A
1
MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290 - NLA - model 5840-003-065 - W/twin distributor seals - Order either 6690156 or 6690156REM motor & 7107787 sprocket - Was 6675586 - A
1
MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290 - NLA - model 5840-003-075 - Order either 6690156 or 6690156REM motor & 7107787 sprocket - Was 6679858 - A
1
MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290 - NLA - model 5840-003-079 - Order either 6690156 or 6690156REM motor & 7107787 sprocket - Was 6680250 - A
2
6674063
PLUG for models 5840-003-063 & 5840-003-065
2
6680019
PLUG for models 5840-003-075 & 5840-003-079
3
SHAFT NLA - Order 6681620 & 6681621 housing - Was 6674709 - A
3
6681620
SHAFT
4
6674727
SEAL, OIL
5
6674725
BEARING 70mm x 110mm x 19mm
5
6684933
BEARING 70mm x 110mm x 25mm - for model 5840-003-079
6
HOUSING NLA - Order Ref. 64 (6681585 housing assy) - Was 6674717 - A
6
6681621
HOUSING for models 5840-003-075 & 5840-003-079
7
6691212
SEAL Was 6674056 - D
8
6660018
BEARING, MOTOR DRIVE
9
WASHER NLA - preload - .025'' (1,9mm) thick - Was 6674057 - A
9
WASHER NLA - preload - .083'' (2,1mm) thick - Was 6674058 - A
9
WASHER NLA - preload - .091'' (2,3mm) thick - Was 6674059 - A
9
WASHER NLA - preload - .098'' (2,5mm) thick - Was 6689116 - A
9
WASHER NLA - preload - .108'' (2.75mm) thick- Was 6674061 - A
9
WASHER NLA - preload - .157'' (4,0mm) thick - Was 6674062 - A
10
6660016
RING, SPLIT
11
6676597
O-RING Was 6660044 - A
13
6674706
STUD
14
SNAP RING NSS - Order Ref. 19 - Was 6675233 - A
15
RETAINER NSS - Order Ref. 19 - Was 6675377 - A
16
ROLLER NSS - Order Ref. 19 - Was 6674031 - A
17
PISTON NSS - Order Ref. 19 - Was 6674032 - A
18
6674065
CAM Was 6675234 - A
19
BLOCK NLA - Order 6690156 or 6690156REM - W/Ref. 14-17 - Was 6676907 - A
20
DISTRIBUTOR NLA - For model 5840-003-063 - Order 6690156REM (Motor) & 7107787 (Sprocket) - Was 6674855 - A
20
6676909
DISTRIBUTOR for models 5840-003-065, 5840-003-075 & 5840-003-079
21
6660033
SPRING
22
6660034
SEAL W/ O-ring - Was 6674848 - A
23
6674847
SEAL W/ O-ring - for model 5840-003-063 - Was 6660035 - A
23
6676910
SEAL W/ O-ring - for models 5840-003-065, 5840-003-075 & 5840-003-079
24
6660037
SEAL W/ O-ring - Was 6674846 - A
25
6674345
PLUG
26
6674851
O-RING
26
6675869
O-RING for models 5840-003-075 & 5840-003-079
27
6674344
SPRING
28
6674343
SHIM .024'' (0,6mm) thick
29
6674853
POPPET
30
6674839
PLUG W/Ref. 31 - for model 5840-003-063
30
6676952
PLUG W/Ref. 31 - for models 5840-003-065 & 5840-003-075
30
6678115
PLUG W/Ref. 31 - for model 5840-003-079
30
SHEAR PLUG NSS
31
O-RING NSS
32
6674841
SPRING
33
6675866
SPOOL for model 5840-003-063 - Was 6674337 - A
33
6675866
SPOOL for models 5840-003-065, 5840-003-075 & 5840-003-079
34
6675867
WASHER
35
6671749
O-RING for model 5840-003-063
35
6676023
O-RING 5840-003-065
35
6685456
O-RING for models 5840-003-075 & 5840-003-079
36
6676952
PLUG W/Ref. 35 - Was 6674852 - A
38
6660032
PIN
39
6674850
O-RING some machines may not have this o-ring, it is not needed
40
6674066
SEAL
41
6671758
O-RING
42
6666364
PLUG W/Ref. 41
43
O-RING NSS - Order Ref. 44
44
6674017
PLUG W/Ref. 43
45
6674842
HOUSING for model 5840-003-063
45
6676908
HOUSING for model 5840-003-065
46
HOUSING NLA - Order 6678779 housing & Ref. 52 6677828 seal - Was 6674721 - A
46
6678779
HOUSING
47
6674718
SHAFT for models 5840-003-063 & 5840-003-065
47
6681622
SHAFT for models 5840-003-075 & 5840-003-079
48
6674722
SHIM .004'' (0,1mm) thick
49
6674723
SHIM .012'' (0,3mm) thick
50
6674714
DISC outer brake
50
6674714
DISC outer brake - for model 5840-003-079
51
6674713
DISC inner brake
51
6674713
DISC inner brake - for model 5840-003-079
52
6674715
SEAL green W/ step
52
6677828
SEAL green W/ metal washer
53
6674708
WASHER
54
6691238
BOLT Was 6689127 - A
55
6674734
BUSHING
56
6674712
THERMOSTAT brake - 30,05mm thick - See Insert
56
6681638
PISTON brake - 28,15mm thick - See Insert - for model 5840-003-079
57
6674728
SEAL Was 6691237 - A
57
6674066
SEAL for Model 5840-003-079
58
6674726
WASHER
58
6678780
WASHER
59
6674720
GASKET, MOTOR HYD
60
6674716
COVER
61
6674705
O-RING
62
6674707
PLUG
63
3GM820
SCREW Was 6674702 - A
64
HOUSING ASSY NLA - front - Ref. 2-10 - Order housing assy. 6689067, also Order sprocket 7107787 - Was 6681585 - A
64
7024981
OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 6682546 - A
65
ROTATING GROUP NLA - Ref. 14 - 19 - Order Ref. 1 - Was 6675375 - A
66
HOUSING ASSY NLA - rear - Ref. 20 - 45 - for model 5840-003-063 - Order Ref. 1 - Was 6674844 - A
66
HOUSING ASSY NLA - rear - Ref. 20 - 45 - for models 5840-003-065 & 5840-003-075 - Order Ref. 1 - Was 6676905 - A
66
HOUSING ASSY NSS- for model 5840-003-079 - Order Ref. 1
67
6674735
BRAKE ASSY Ref. 46-63 - models 5840-003-063 & 5840-003-065
67
6678777
BRAKE ASSY Ref. 46-63 - 5840-003-075
67
6681637
BRAKE, HYD MOTOR Ref. 46-63 - for model 5840-003-079
68
SEAL KIT NLA - W/Ref. 7, 11, 22-24, 26, 30, 34, 35, 39-41, 52, 57 & 59 - for model 5840-003-063 - Order 6678778 - Was 6674845 - A
68
SEAL KIT NLA - W/Ref. 7, 11, 22, 23 (2) (6676910 ), 24, 26, 30, 34, 35, 39-41, 52, 57 & 59 - for model 5840-003-065 - Order 6678778 , also Order 6674715 seal - Was 6676906 - A
68
6678778
KIT, SEAL W/Ref. 7, 11, 22, 23 (2) (6676910 ), 24, 26, 30, 34, 35, 39-41, 52, 57 & 59 - for model 5840-003-065
68
6678778
KIT, SEAL W/Ref. 4,7,11,22, 23(6676910), 24,26,35(6685456),40,52,57(6674728) & 59 - for models 5840-003-075 - & 5840-003-079
