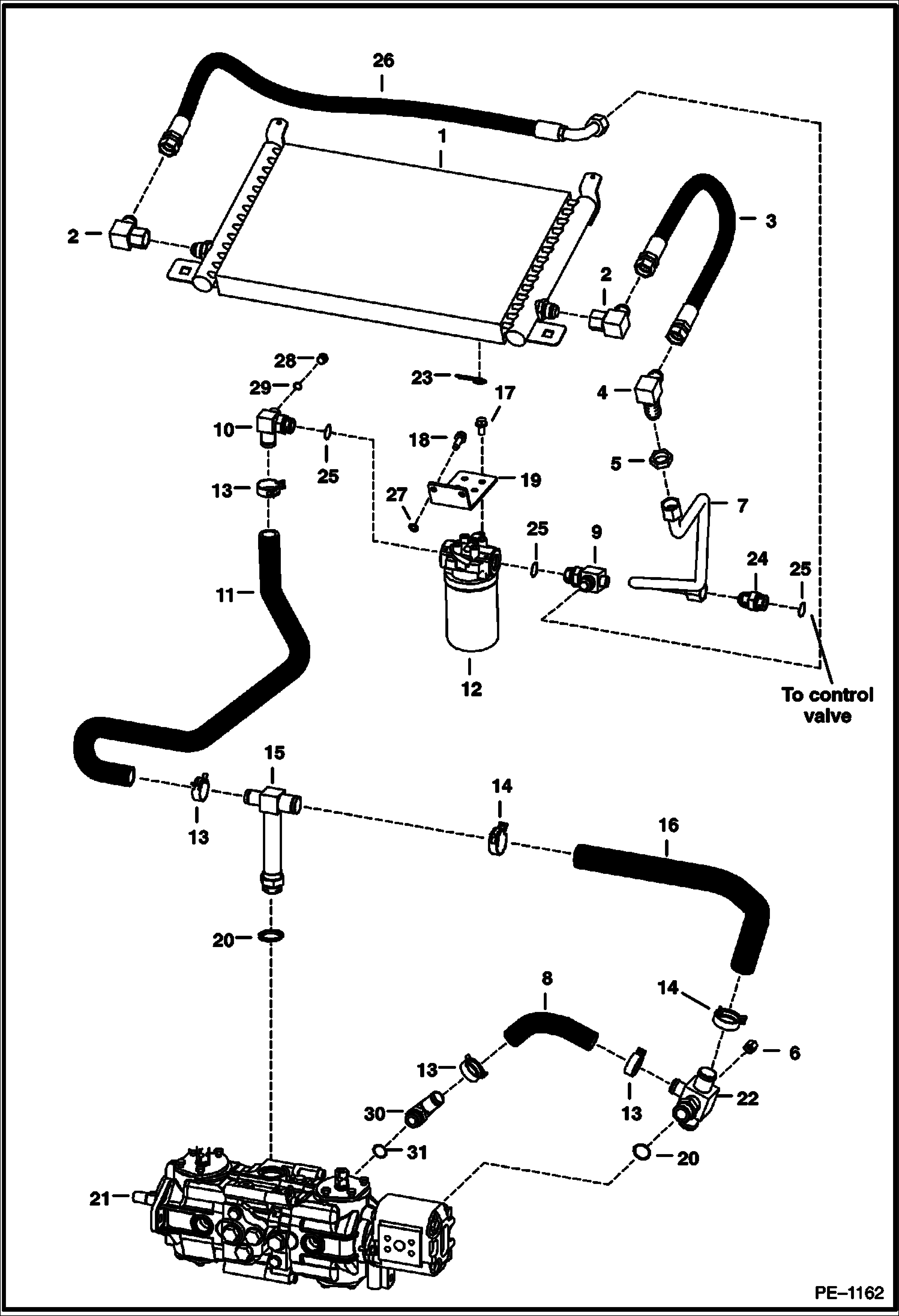

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5189 13532, 5168 12025, 5175 12042 & Below) HYDROSTATIC SYSTEM

1

6667896

EXCHANGER, OIL COOLER

2

11K8

ELBOW Was 11KN00008B - A

3

6719267

HOSE

4

88F8

FITTING Was 88FN00008B - A

5

86F8

NUT 5

6

36K5

CAP

7

6719286

TUBELINE

8

6718885

HOSE

9

6700599

ELBOW flat boss face - W/Ref. 25 - Was 6715714 - B,D

10

6725032

ELBOW W/Ref. 25 - Tapered boss face - Was 6715718 - B

11

6718773

HOSE

12

6661247

FILTER

12

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

13

5HM35

HOSECLAMP

14

5HM42

HOSECLAMP

15

6716471

TEE W/Ref. 20

16

6716176

HOSE

17

35C612

BOLT

18

84G3716

SCREW 5

19

6719446

MOUNT

20

99K16

O-RING

21

PUMP

22

6718882

TEE W/Ref. 20

22

97K6

O RING flared end

23

1318565

COTTER PIN

24

ADAPTER NLA - W/Ref. 25 - tapered boss face - Order 15KB-1212 - Was 15KN00008B - B

24

97K12

O'RING flared end

24

15KB1212

FITTING, HYD CONNECTOR W/Ref. 25 - flat boss face - Was 6812646 - A

25

99K12

O RING tapered boss face

25

79K12

O RING 10 flat boss face

26

6719268

HOSE

27

6E6

WASHER

28

90KV5

PLUG W/Ref. 29

29

95K6

O'RING

30

6715718

ELBOW W/Ref. 31

31

99K12

O RING
