Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5189 11354, 5168 11037, 5175 11033 & Above) HYDROSTATIC SYSTEM

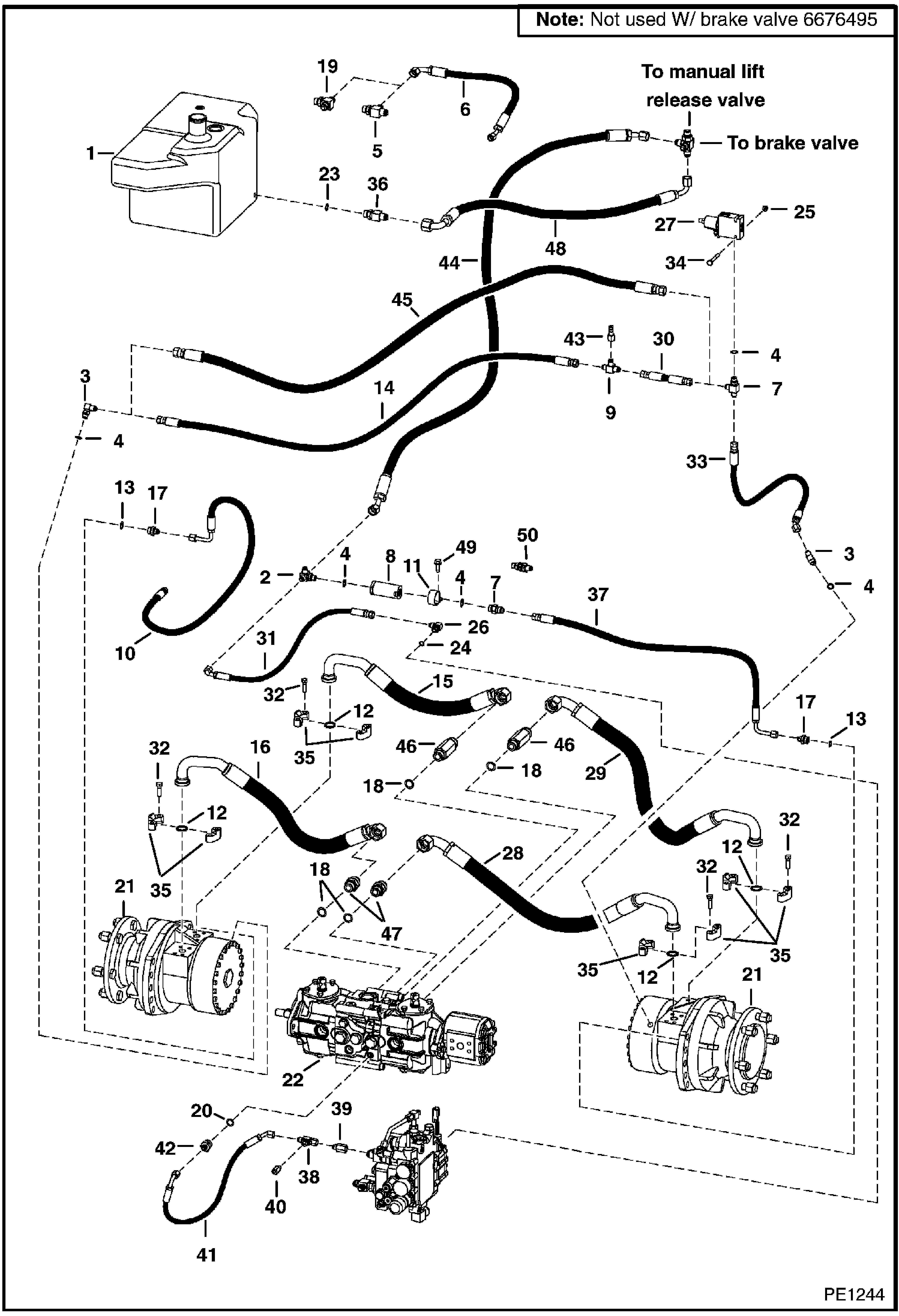

Схема запчастей Bobcat 800s - HYDROSTATIC CIRCUITRY (S/N 5189 11354, 5168 11037, 5175 11033 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE1242 - hydraulic oil

2

18KB0606

FITTING, HYD ELBOW W/Ref. 4 - Was 18KV00005B - A

2

97K6

O RING flared end

3

17KB0606

FITTING tapered boss face - W/Ref. 4 - Was 17KV00005B - A

3

97K6

O RING flared end

3

17KB0606

FITTING W/Ref. 4 - Flat boss face

4

99K6

O RING tapered boss face

4

79K6

O RING 10 Flat boss face

5

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 23 - tapered boss face - Was 21KN00006B - A

5

97K8

O-RING flared end

6

6726453

HOSE 18'' (457,2 mm) long

7

TEE NLA - tapered boss face - Was 19KV-5 - A

7

97K6

O RING flared end

7

19KB0606

TEE W/Ref. 4 - Flat boss face

7

6725497

CROSS W/Ref. 4 - Flat boss face - W/Port

8

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

9

10K5

TEE 37 degree flared - SEE NOTE - Was 10KN00005B - A

9

97K6

O RING flared end

10

6726682

HOSE 30 in. (762 mm) Long - 290 Degrees ends

10

6730326

HOSE 29.5 in. (749 mm) long - 190 Degrees straight - goes to front aux inline filter

11

30H79

CLAMP Was 30H000060B - B

12

55K214

O-RING

13

79K8

O RING 10

14

6719107

HOSE 60'' (1,524 mm) long - SEE NOTE

15

6718782

HOSE

16

6718783

HOSE

17

743108

FITTING W/Ref. 13

18

75K12

O'RING 10 tapered boss face

18

79K12

O RING 10 flat boss face

19

19KB0808

Fitting Hydraulic Branch Tee W/Ref. 23 - Was 19KN00006B - A

20

99K10

O'RING tapered boss face

20

79K10

O RING 10 flat boss face

21

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B18116

22

PUMP See Illustration HYDROSTATIC PUMP/ B18119

23

99K8

O-RING tapered boss face

23

79K8

O RING 10 flat boss face

24

79K6

O RING 10

25

83D4

NUT 10

26

17K5

ELBOW W/Ref. 35

26

97K6

O RING flared end

27

VALVE See Illustration BRAKE VALVE/ MS1144 - brake

28

6685339

HOSE, HYD ASSY Was 6718781 - B

29

6718780

HOSE

30

6704630

HOSE 6'' (152 mm) long - SEE NOTE

31

6725431

HOSE

32

17C620

BOLT

33

6736814

HOSE Was 6719460 - A

34

17C432

BOLT

35

20J12

FLANGE

36

ADAPTER NLA - W/Ref. 23 - tapered boss face - Was 15KN-6 - A

36

97K8

O-RING flared end

36

15KB0808

FITTING, HYD CONNECTOR W/Ref. 23 - flat boss face

37

6725442

HOSE

38

6718660

TEE

38

97K6

O RING flared end

39

6672766

CHECK VALVE

40

6718948

SNUBBER assy W/ filter - .375 in. UNF thread

40

6675278

FILTER

41

6725090

HOSE

42

REDUCER NLA - W/Ref. 20 - tapered boss face - Was 6717173 - A

42

97K10

O-RING 10 flared end

42

15KB0610

FITTING, HYD CONNECTOR W/Ref. 20 - flat boss face

43

6661753

PLUG diagnostic - SEE NOTE

44

6734101

HOSE Was 6732547 - A

45

6718154

HOSE

46

6716243

ADAPTER W/Ref. 18

47

CONNECTOR NLA - W/Ref. 18 - flat boss face - 2.16 in. (55 mm long) - Was 6715878 - A

47

15KB1612

FITTING, HYD CONNECTOR W/Ref. 18 - flat boss face - 2.38 in. (60 mm long)

48

6731897

HOSE

49

84G3716

SCREW 5

50

15KB0606

FITTING, HYD CONNECTOR W/Ref. 4 - flat boss face
