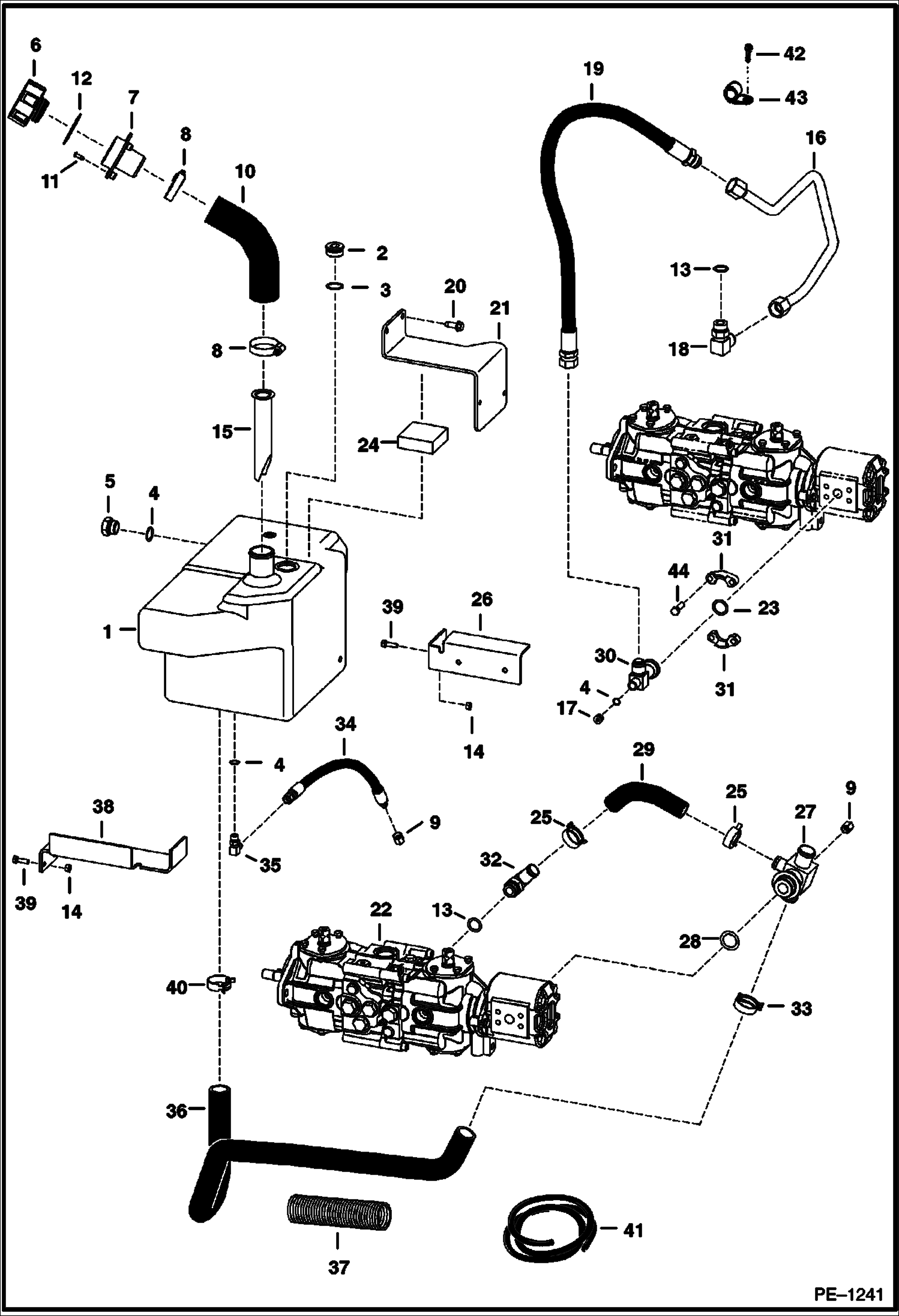

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5189 11353, 5168 11036, 5175 11032 & Below) HYDROSTATIC SYSTEM

1

TANK NLA - hydraulic oil - Order 6731209 tank & 6727175 tee, also Order 6727475 cap, 6727354 inlet, 6727318 hose, 6727313 fitting, 23 in. of 6586251 hose, 5HM00015B (2) clamp, 6731906 BPV mount & 6731

2

47K10

PLUG W/Ref. 3

3

79K16

O RING 10

4

99K6

O RING tapered boss face

4

79K6

O RING 10 flat boss face

5

6665915

GAUGE sight - W/Ref. 4

5

6734563

WASHER KIT

5

6734561

WASHER

5

25K30118

O RING 10

6

6727475

CAP, OIL HYD breather & fill - also Order Ref. 12 - Was 6577785 - A

7

INLET See BTI412 - NLA - Was 6706354 - A

8

42HL250

CLAMP Was 6513595 - A

9

36K5

CAP

10

6718576

HOSE

11

6706517

SCREW

12

6700631

GASKET

13

99K12

O RING tapered boss face

13

79K12

O RING 10 flat boss face

14

83D5

NUT 5 Was 61D000005B - B

15

7120881

SCREEN, FILLER Was 6569219 - A

16

6716506

TUBELINE

17

PLUG NLA - W/Ref. 4 - tapered boss face - Was 24KN-5 - A

17

24K5

PLUG W/Ref. 4 - Flat boss face

18

ELBOW NLA - W/Ref. 13 - tapered boss face - Order 6812141 - Was 17KV00008B - A

18

97K12

O'RING flared end

18

17KB1212

FITTING, HYD ELBOW W/Ref. 13 - flat boss face - Was 6812141 - A

19

6737341

HOSE Was 6736043 - A

20

17C632

BOLT 5

21

6718726

MOUNT

22

PUMP See Illustration HYDROSTATIC PUMP/ B18119

23

55K214

O-RING

24

6716449

PAD

25

5HM35

HOSECLAMP

26

6718851

BRACKET front

27

6718882

TEE W/Ref. 28

28

75K16

O RING 10

29

6718885

HOSE

30

7103953

TEE W/Ref. 12 - 4-bolt flange - Was 6717662 - A

30

97K12

O'RING flared end

31

19J12

CLAMP W/Ref. 44

32

6715718

ELBOW W/Ref. 13 - flat boss face

33

5HM42

HOSECLAMP

34

6530859

HOSE tank drain

35

18KB0606

FITTING, HYD ELBOW 45 degree - W/Ref. 4 - Was 18KN00005B - A

36

6718503

HOSE

37

SHIELD NLA - Order Ref. 41 - 10'' (254 mm) long

38

6718850

BRACKET rear

39

35C616

BOLT 5 Was 35C000512B - B

40

6672281

CLAMP constant tension

41

6705749

SHIELD bulk - sold per foot

42

84G3712

BOLT 5

43

30H46

CLIP

44

17C620

BOLT
