Запчасти Bobcat 800s BRAKE (S/N 518912999, 516811999, 517511999 & Below) DRIVE TRAIN

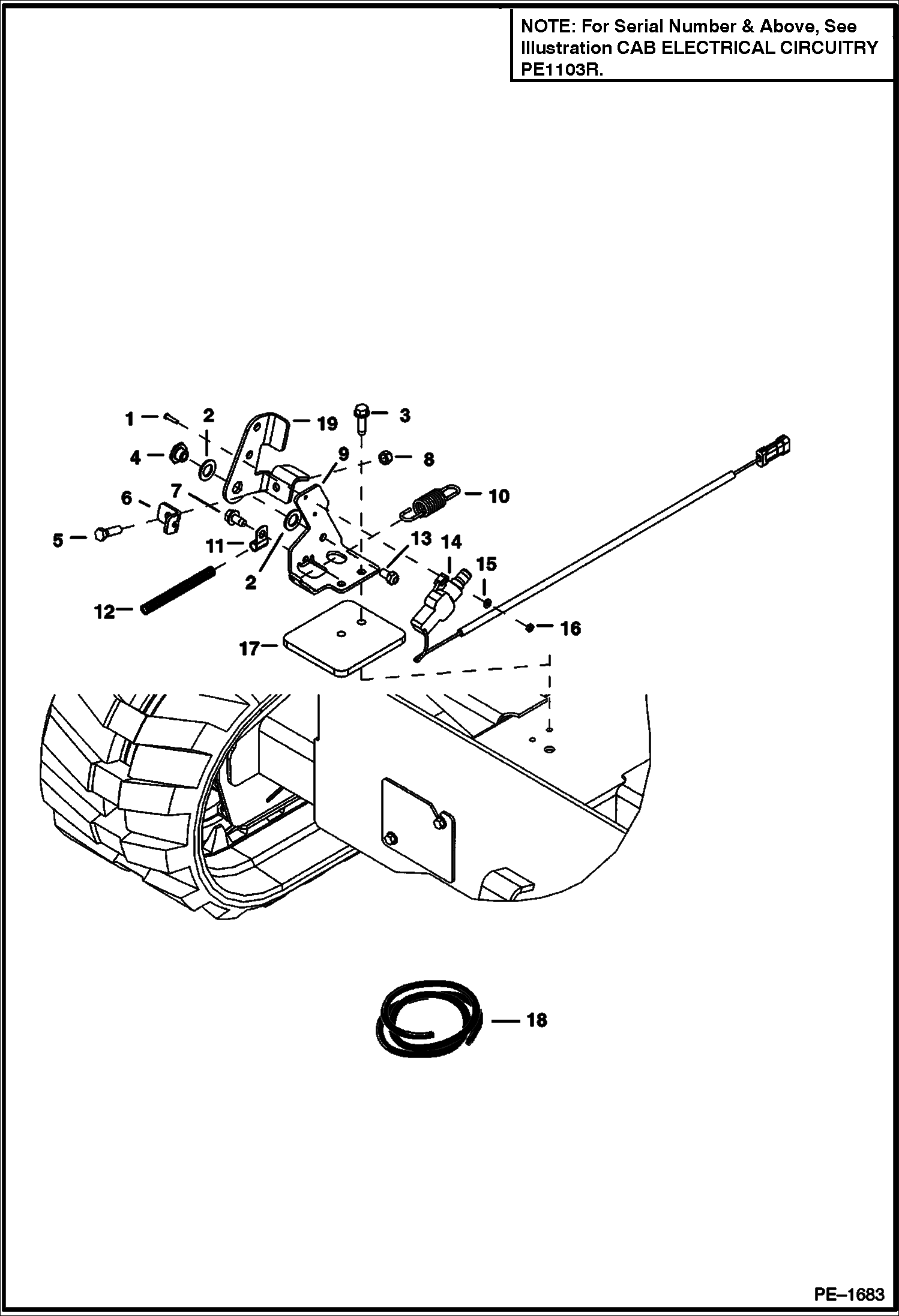

Схема запчастей Bobcat 800s - BRAKE (S/N 518912999, 516811999, 517511999 & Below) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

23G812

SCREW

2

6700170

WASHER

3

84G3720

BOLT

4

6559479

NUT retaining

5

17C620

BOLT

6

6707315

ANGLE

7

84G3712

BOLT 5

8

95D6

NUT Was 91D000006B - A

9

6707313

PEDAL MOUNT

10

6585860

SPRING

11

30H23

CLAMP

12

CONDUIT NLA - 5'' (127 mm) long - Order Ref. 18

13

17C610

BOLT

14

6707337

SWITCH, LOCK TRACTION

15

25E8

WSHR

16

12D8

NUT

17

6716858

SPACER

18

6584978

CONDUIT bulk - sold per foot

19

6707314

PEDAL traction

Выбрано товаров: 19
