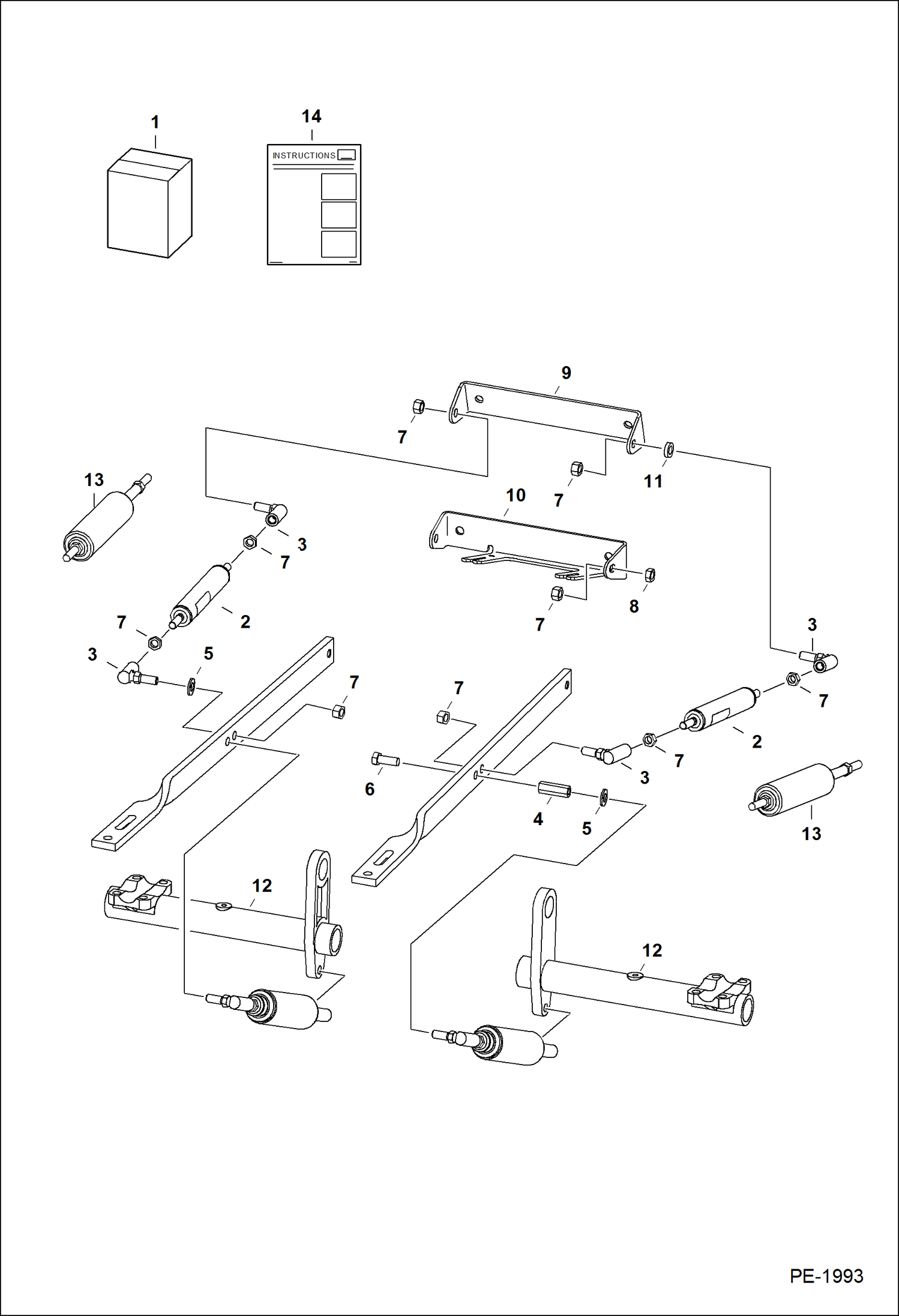

Запчасти Bobcat 800s STEERING DAMPENING KIT ACCESSORIES & OPTIONS

1

6737490

KIT dual dampener - Ref. 2-9 & 14 - Also order (2) each 7110573 bellcrank, 10H35 grease zerk, 6685060 bushing & 619021 washer

2

GAS SPRING NLA - Japan Option - Order Ref. 3 - Was 6649551 - A

3

7188108

GAS SPRING

4

6599744

BALL JOINT

5

6737444

SPACER coupling

6

25E17

WASHER 5

7

18C616

BOLT 5

8

62D8

NUT

9

8D6

NUT 5

10

6706106

MOUNT damper - not in kit

11

7147580

MOUNT damper - W/mount for backup alarm switch - not in kit - Was 7100795 - A

12

SPACER NLA - not in kit - Order Ref. 8 - Was 7110945 - A

13

7110573

BELLCRANK not in kit

14

6902619

INSTRUCTIONS
