Запчасти Bobcat 800s REAR AUXILIARY HYDRAULICS KIT ACCESSORIES & OPTIONS

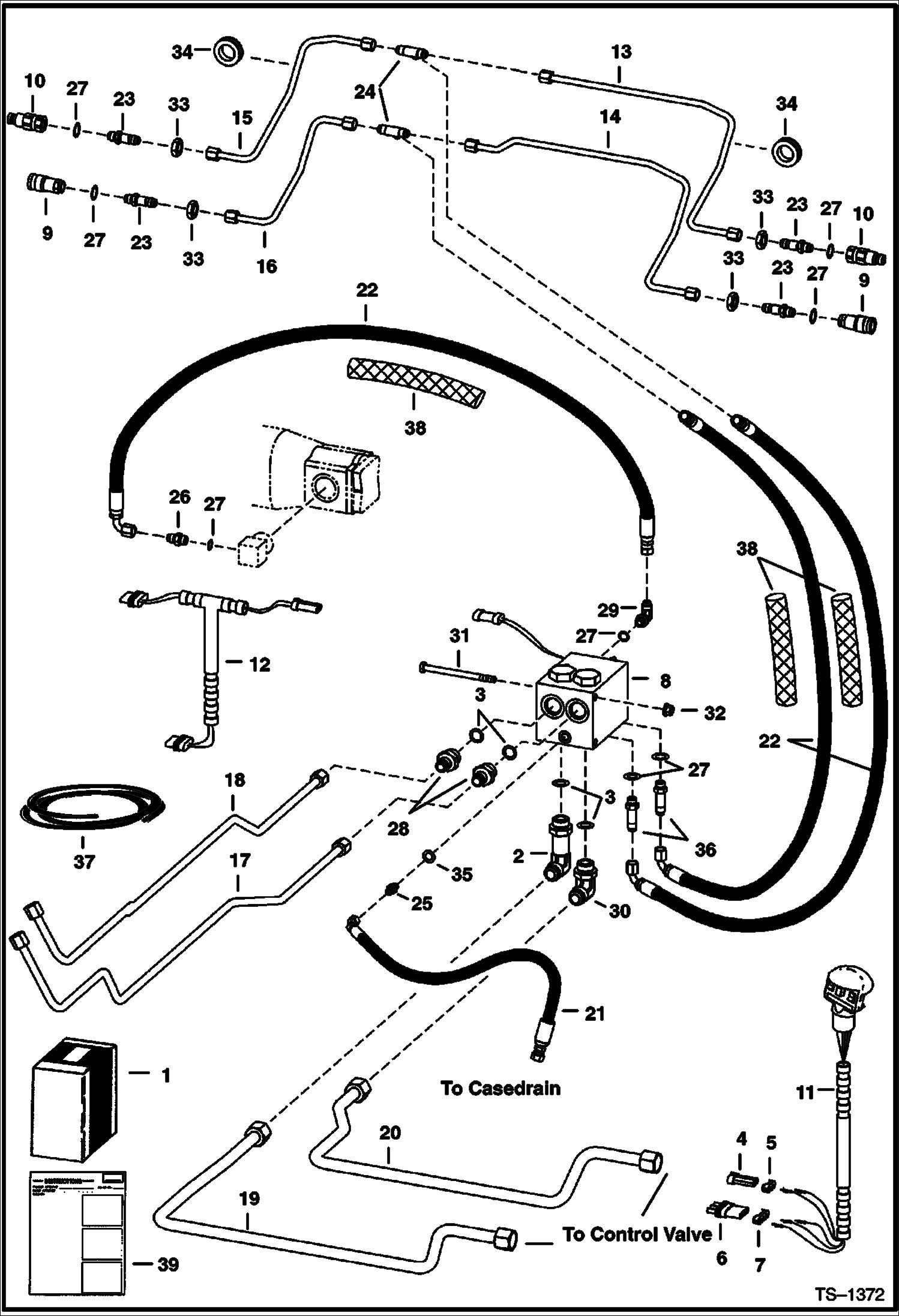

Схема запчастей Bobcat 800s - REAR AUXILIARY HYDRAULICS KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6711823

KIT Ref. 2-39 - Was SALES - A

2

6519187

ELBOW W/Ref. 3 - flat boss face

2

6716443

ELBOW tapered boss face

2

97K12

O'RING flared end

3

79K12

O RING 10 flat boss face

3

99K12

O RING tapered boss face

4

6640699

CONNECTOR

5

6640700

LOCK

6

6641179

CONNECTOR 2-pin

7

6641180

LOCK Use W/ 2-pin connector

8

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 diverter

9

6667803

COUPLER, FF FEMALE

10

6667804

COUPLER, FF MALE

10

6669657

SEAL KIT

11

6680414

HANDLE ASSY.

12

6710435

HARNESS adapter

13

6717952

TUBELINE Was 6711647 - A

14

6713255

TUBELINE Was 6711648 - A

15

6717953

TUBELINE Was 6711649 - A

16

6713256

TUBELINE Was 6711650 - A

17

6712597

TUBELINE

18

6712598

TUBELINE

19

6711791

TUBELINE

19

6718440

TUBELINE

20

6711792

TUBELINE

21

6711812

HOSE

22

6714879

HOSE Was 6712241 - A

23

45K5

FITTING flat boss face

23

6716089

CONNECTOR tapered boss face - Was 45KN00005B - A

23

97K6

O RING flared end

24

10K5

TEE flat boss face

24

TEE NLA - tapered boss face - Was 10KN00005B - A

24

97K6

O RING flared end

25

15K3

CONNECTOR W/Ref. 35 - flat boss face

25

15KB0404

FTG HYD S Connector W/Ref. 35 - flat boss face

25

97K4

O'RING flared end

26

15K5

FITTING W/Ref. 27 - flat boss face

26

ADAPTOR NLA - W/Ref. 27 - tapered boss face - Was 15KV00005B - A

26

97K6

O RING flared end

26

15KB0606

FITTING, HYD CONNECTOR W/Ref. 27 - flat boss face

27

79K6

O RING 10 flat boss face

27

99K6

O RING tapered boss face

28

15K8

FITTING W/Ref. 3 - flat boss face

28

FITTING, HYD CONNECTOR NLA - W/Ref. 3 - tapered boss face - Was 15KN00008B - A

28

97K12

O'RING flared end

28

15KB1212

FITTING, HYD CONNECTOR W/Ref. 3 - flat boss face

29

17K5

ELBOW W/Ref. 27 - flat boss face

29

FITTING NLA - W/Ref. 27 - tapered boss face - Was 17KV00005B - A

29

97K6

O RING flared end

29

17KB0606

FITTING W/Ref. 27 - flat boss face

30

17K8

FITTING W/Ref. 3 - flat boss face

30

FITTING, HYD ELBOW NLA - W/Ref. 3 - tapered boss face - Was 17KV00008B - A

30

97K12

O'RING flared end

30

17KB1212

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

31

17C680

BOLT

32

83D6

NUT 5

33

86F5

NUT

34

6515603

GROMMET

35

79K4

O RING 10 flat boss face

35

99K4

O'RING tapered boss face

36

16K5

FITTING W/Ref. 27 - flat boss face

36

16KB0606

FTG HYD L CONNECTOR NLA - W/Ref. 27 - tapered boss face - Was 16KN00005B - A

36

97K6

O RING flared end

36

16KB0606

FTG HYD L CONNECTOR W/Ref. 27 - flat boss face

37

6665878

SHIELD Bulk - sold per foot - 1.35'' (34mm) I.D.

38

SHIELD NLA - 61'' (1550 mm) long - Order Ref. 37

39

6724504

INSTRUCTIONS

Выбрано товаров: 67
