Запчасти Bobcat 800s HAND CONTROL KIT (W/ Push Button Float) (F-Series) ACCESSORIES & OPTIONS

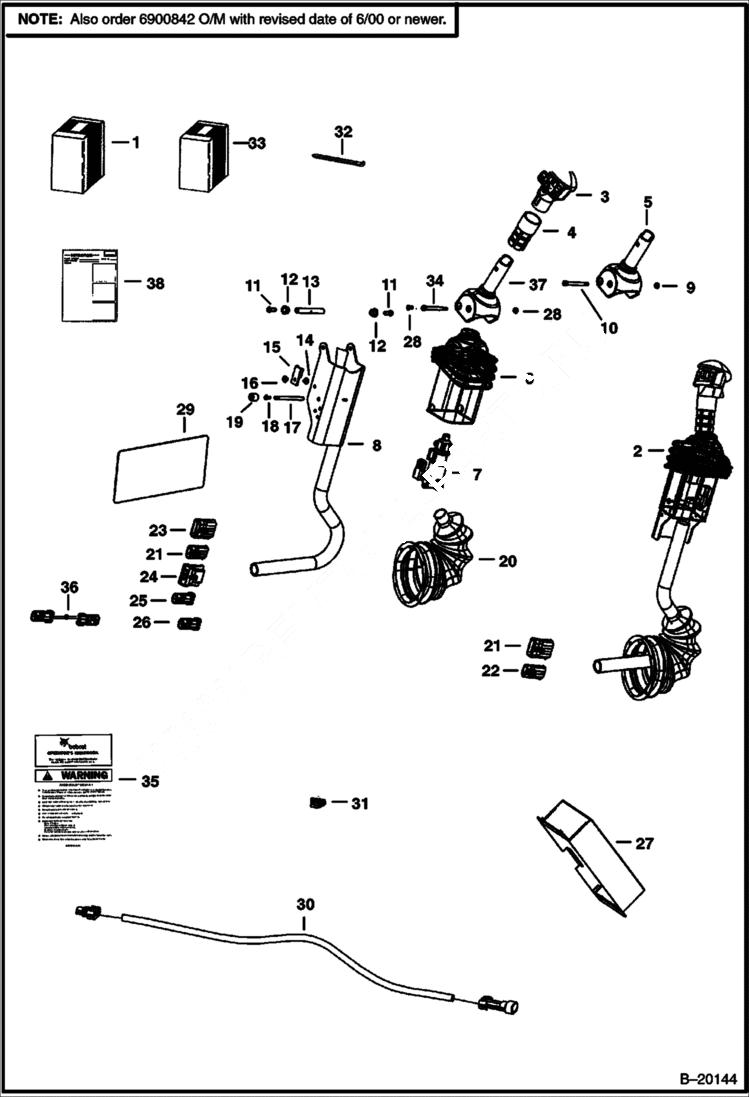

Схема запчастей Bobcat 800s - HAND CONTROL KIT (W/ Push Button Float) (F-Series) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - Order 6727297 AHC kit, 6728608 operator handbook & 6727243 decal - Was 6728609 - A

2

6684919

LEVER tilt - R.H. - Was 6675748 - A

2

6684918

LEVER lift - L.H. - Was 6675747 - A

3

6680459

HNDL/TILT AHC lift - R.H. - Was 6675515 - A

3

6680461

HANDLE lift - L.H. - Was 6675746 - A

4

GRIP NLA - Order 6702621 grip & cut to 2.8'' long - Was 6713349 - A

5

HANDLE NLA - R.H. - Order Ref. 28, 34 & 37 - Was 6597774 - A

5

HANDLE NLA - L.H. - Order Ref. 28, 34 & 37 - Was 6717163 - A

6

6680471

COVER Was 6713898 - A

7

6684910

SENSOR, ELEC AHC Was 6680422 - A

7

6670706

CONNECTOR

7

6670715

PIN

7

6670710

LOCK

8

6680481

CHANNEL RH - Was 6719712 - A

8

6680480

CHANNEL LH - Was 6719711 - A

9

12D10

NUT Use W/Ref. 10

10

6716826

BOLT shoulder - 2.55'' long

11

25GT410

SCREW

12

6702990

BUSHING

13

6713043

SPACER

14

6665321

RIVET male

15

6665000

CLIP

16

6665322

RIVET female

17

6719834

SPACER threaded

18

6727065

BOLT

19

6719835

SLEEVE

20

6532127

BOOT

21

6640696

CONNECTOR 8-pin

21

6661183

LOCK

22

6641173

CONNECTOR 6-pin

22

6641181

LOCK 6-pin

23

6641179

CONNECTOR 2-pin

23

6661180

LOCK

24

6640699

CONNECTOR 3-pin

24

6640700

LOCK

25

6641178

CONNECTOR 2-pin

25

6641180

LOCK Use W/ 2-pin connector

26

6630838

CONNECTOR 1-pin

27

6676442

CONTROLLER, AHC FLOAT

28

6727065

BOLT

29

6727243

DECAL

30

6727327

HARNESS

31

6670707

CONNECTOR 3-pin

31

6670715

PIN

31

6670711

LOCK

32

6610510

TIE

33

6728608

HANDBOOK, OPERATOR'S W/WIRE ROPE

34

6680469

SPACER 2.285'' - threaded at both ends - Was 6729600 - A

35

6900626

OM, 864 864H LDR operator

36

6730272

HARNESS W/ capacitor

37

6729594

HANDLE RH

37

6729595

HANDLE LH

38

6901099

INSTRUCTIONS

Выбрано товаров: 53
