Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

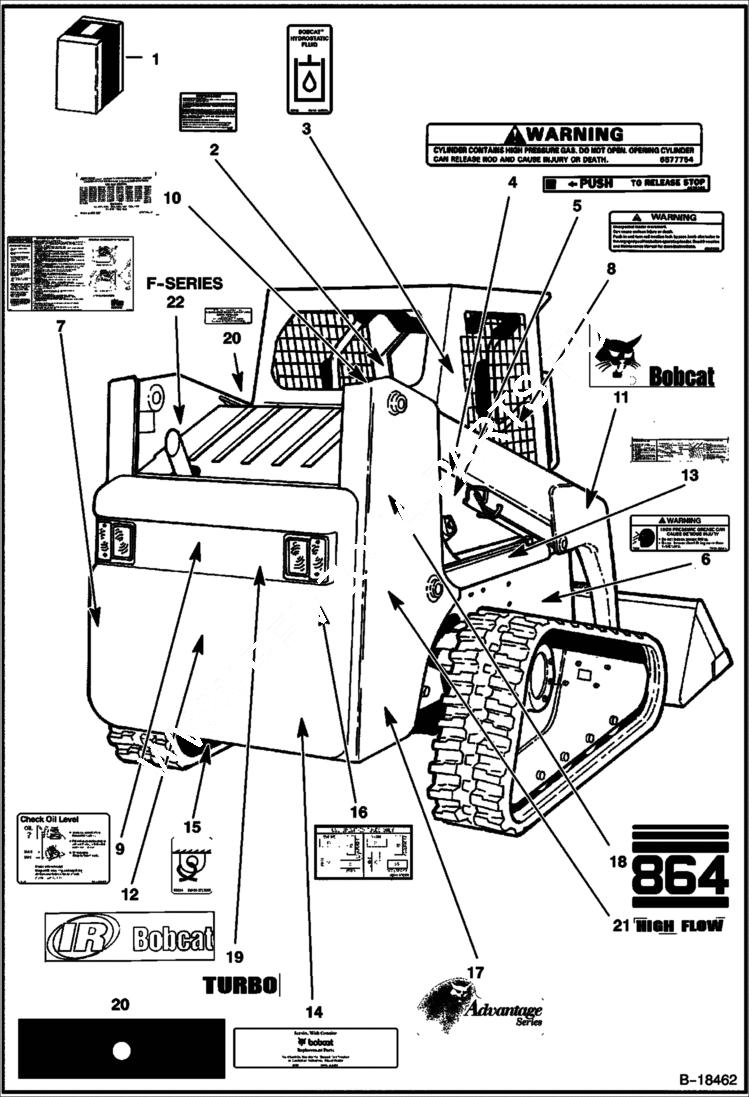

Схема запчастей Bobcat 800s - DECALS ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6713266

KIT See Illustration DECALS/ B18461 decal - Ref. 2-16 on this page & Ref. 2-18 on illustration B18461 - model decal not included

2

6560573

DECAL spark arrestor - Was 6708937 - A

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

7

6734534

DECAL, SERVICE service/warning/filters - Was 6718398 - A

8

6803932

DECAL warning

9

6717679

DECAL check oil

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH R.H. - Bobcat head

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head

12

DECAL NLA - Bobcat Logo - Was 6727307 - A

12

DECAL NLA - Logo - one piece door 10.3'' (262mm) x 28.5 (723mm) - Was 6727311 - A

13

6706558

DECAL, OPERATION lift arm support

14

6565200

DECAL, FILTER

15

6727595

DECAL Was 6595014 - B

16

6715991

DECAL fuse

17

6718272

DECAL advantage series - R.H. - Not in Kit

18

6717233

DECAL model no. 864

19

6727912

DECAL turbo - for one piece door

20

6714242

DECAL tailgate - for one piece door

21

6727913

DECAL high-flow - not in kit

22

6714858

DECAL ''F'' series

Выбрано товаров: 24
