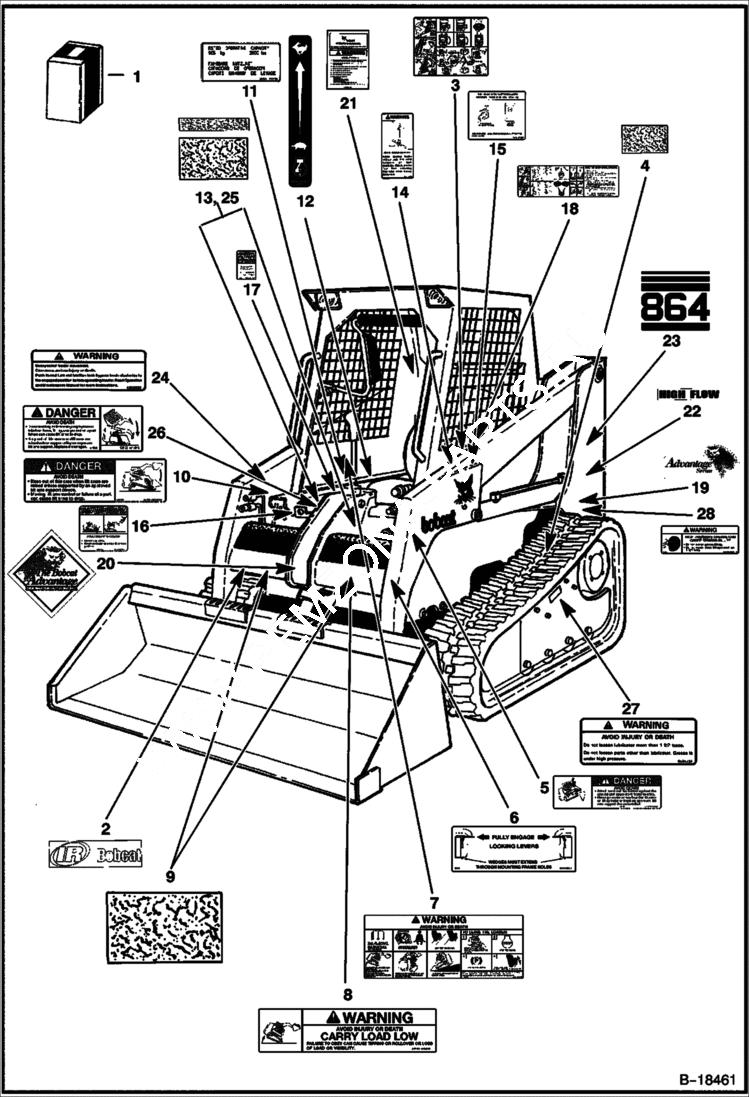

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6713266

KIT See Illustration DECALS/ B18462 decal - Ref. 2-18 on this page & Ref. 2-16 on illustration B18462 - model decal not included

2

DECAL NLA - Ingersoll Rand - Was 6727310 - A

3

6718394

DECAL operating

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6718392

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728540

DECAL, WARNING warning - Was 6718390 - A

8

6718391

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6718393

DECAL, DANGER

11

6717799

DECAL capacity - 2000 lbs.

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8'' x 8.75'' - (172,7 mm x 222,3 mm)

14

6705720

DECAL lock shield

15

6713715

DECAL pre heat

16

6718396

DECAL, WARNING no riders

17

6711840

DECAL lift lock

18

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

18

6717639

DECAL seat & seat bar operating - AHC - W/O seat sensor

19

6718271

DECAL advantage series - L.H. - not in Kit

20

6718275

DECAL Bobcat advantage

21

6728608

HANDBOOK, OPERATOR'S W/WIRE ROPE

21

HANDBOOK NSS - for AHC & STD machines - Order 6728608 kit

21

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

21

6558310

SLEEVE wire rope

21

17C512

BOLT 5

21

61D5

NUT

21

84G3112

BOLT 5

22

6727913

DECAL high flow - Not in kit

23

6717233

DECAL model no. 864

24

6803932

DECAL warning - lift lock valve

25

6710746

SAFETY TREAD 1.5'' x 15'' (38,1mm x 381 mm)

26

6717343

DECAL, DANGER Was 6718399 - A

27

7168039

DECAL, WARNING Track Adjustment Warning - Was 6589742 - A

28

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A
