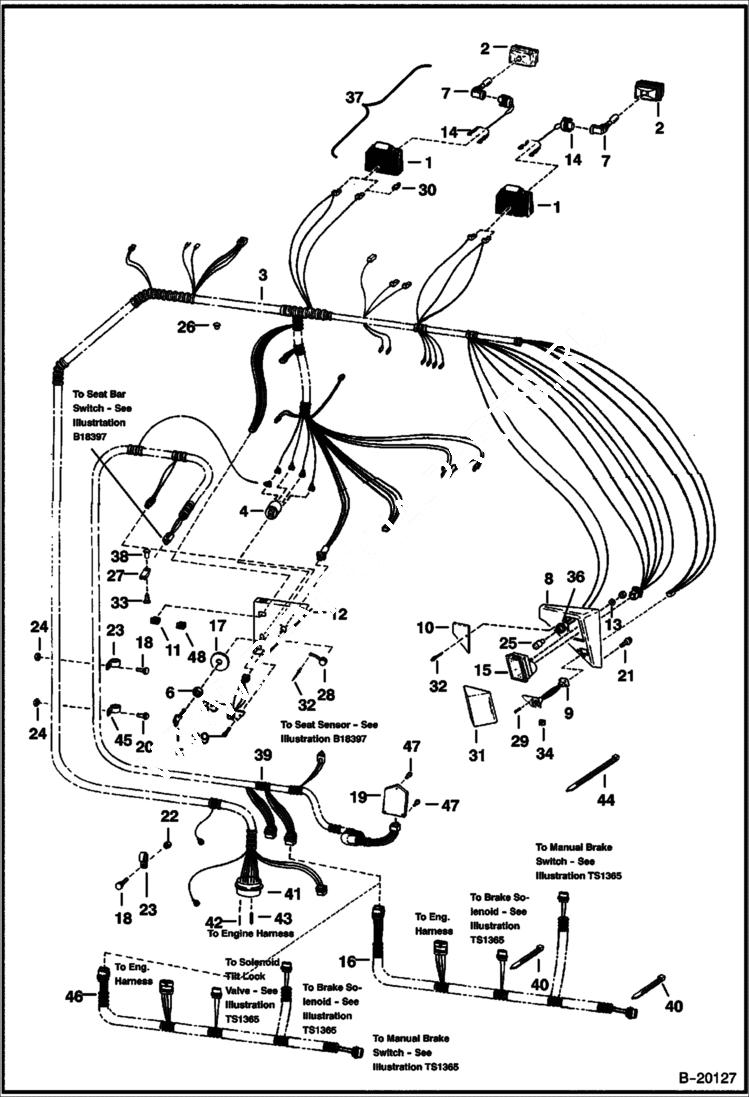

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6578824

HOUSING rubber

2

6649478

BULB HOUSING

3

6707671

HARNESS

3

6711774

HARNESS for side console

3

6710483

HARNESS for boss export option

4

6665606

SWITCH ignition - W/Ref. 9 & 10

5

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6674202

NUT Was 6598721 - B,D

7

6667934

BULB

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX 4 pin - aux. controls module - W/Ref. 34

9

6667904

SWITCH 5 pin - aux. controls module - W/Ref. 34

10

6702678

PLATE service codes

11

6665410

SWITCH light

12

6708427

PANEL L.H.

13

17E8

WASHER

14

6578528

HARNESS light

15

DISPLAY NLA - LCD monitor - mounted w/nuts - order 7131641 kit - Was 6665923 - A

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6710313

HARNESS 91'' (2311 mm) long - 5 connecters

17

6709027

PLATE brake start

18

10C412

BOLT

19

CONTROLLER See Illustration PUSH TO OPERATE/ B15147 See Illustration PUSH TO OPERATE KIT/ B15147A NLA - Order Kit 6717700 or 6717702 - Was 6668767 - A

19

CONTROLLER See Illustration PUSH TO OPERATE/ B15147 See Illustration PUSH TO OPERATE KIT/ B15147A NLA - traction lock override/seat sensor override - Order Kit 6717700 or 6717702 - Was 6673003 - A

19

6680411

CONTROLLER traction lock override/push to operate - Was 6674222 - A

19

6674223

CONTROLLER push to operate

19

6680444

CONTROLER For AHC Option - Was 6674225 - A

20

35C410

BOLT 5

21

6702642

SCREW

22

61D4

NUT 5

23

30H56

CLIP

24

83D4

NUT 10

25

6578357

BULB

26

6707674

PLUG round - plugs 1.25'' (32,5mm) dia. hole in cab

27

6665000

CLIP

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6519548

CONNECTOR

31

6700487

SHIELD snap in place

32

6704892

RIVET

33

6665321

RIVET plastic male

34

6660594

BUTTON on/off

35

6667905

SWITCH traction override

35

SWITCH NLA - traction/seat sensor override - Order 6674420 - Was 6673005 - A

35

6674220

SWITCH, OVERRIDE TRACTION push to operate

36

6649331

SOCKET light - W/ 6'' leads

37

6577801

LIGHT Ref. 1, 2, 7 & 14

38

6665322

RIVET plastic female

39

6710312

HARNESS

39

6712134

HARNESS, CONTROLLER

39

6712135

HARNESS

39

6713932

HARNESS

39

6713933

HARNESS

40

6665527

TIE never modify

41

6664584

CONNECTOR Also Order Ref. 42 & 43 - Was 6665683 - A

42

6664827

PIN

43

6664040

PIN

44

6610510

TIE

45

30H29

CLAMP

46

6712523

HARNESS 70'' (1778 mm) long - 5 connecters - 2 connecters at same end

47

91G412

SCREW cross recess pan head - Was 17C000410B - B

47

25G412

CAPSCRW10 hex socket button head

48

6668814

SWITCH bucket positioning on-off
