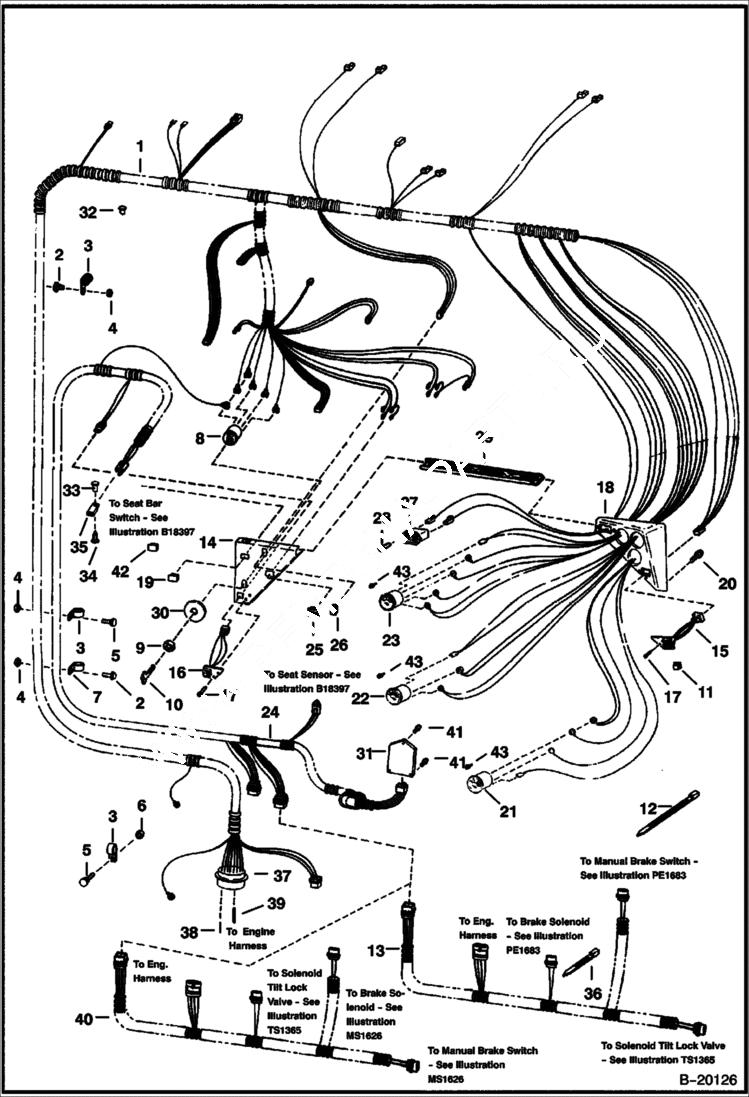

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6707665

HARNESS

1

6711767

HARNESS, CAB BASE for side console

1

6710482

HARNESS for non-boss export option

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

6665606

SWITCH ignition - W/Ref. 9 & 10

9

6674202

NUT Was 6598721 - B,D

10

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6710313

HARNESS See Ref. 40

14

6708425

PANEL L.H.

14

6712152

PANEL L.H. - for side console

15

6667903

SWITCH, AUX 4 pin - aux. controls module - W/Ref. 11 - Was 6700603 - B

15

6667904

SWITCH 5 pin - aux. controls module - W/Ref. 11

16

6667905

SWITCH traction override - Was 6706995 - A

16

SWITCH NLA - traction / seat sensor override - Order 6674220 - Was 6673005 - A

16

6674220

SWITCH, OVERRIDE TRACTION push to operate

17

6669225

BOLT Was 58G000408B - A

18

6706896

PANEL R.H.

19

6665314

PLUG Was 6719038 - A

20

6702642

SCREW

21

6669662

GAUGE engine temp. - Was 6666594 - A

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6710312

HARNESS Was 6706828 - B

24

6712134

HARNESS, CONTROLLER

24

6712135

HARNESS

24

6713932

HARNESS

24

6713933

HARNESS

25

6665318

SWITCH glow plug

25

6668927

SWITCH glow plug

26

6636018

LIGHT indicator - engine oil & charge pressure

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6709027

PLATE brake start

31

CONTROLLER See Illustration PUSH TO OPERATE/ B15147 See Illustration PUSH TO OPERATE KIT/ B15147A NLA - traction lock override - Order kit 6717700 or 6717702 - Was 6668767 - A

31

CONTROLLER See Illustration PUSH TO OPERATE/ B15147 See Illustration PUSH TO OPERATE KIT/ B15147A NLA - traction lock override/seat sensor override - Order kit 6717700 or 6717702 - Was 6673003 - A

31

6680411

CONTROLLER push to operate - Was 6674222 - A

31

6680446

CONTROLLER push to operate - Was 6674223 - A

31

6680444

CONTROLER AHC - Was 6674225 - A

32

6707674

PLUG round - plugs 1.25'' (32,5mm) dia. hole in cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 38 & 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6712523

HARNESS See Ref. 13

41

91G412

SCREW cross recess pan head - Was 17C000410B - B

41

25G412

CAPSCRW10 hex socket button head

42

6668814

SWITCH bucket positioning on-off

43

6599696

SOCKET & BULB assy.

43

895771

#161 BULB
