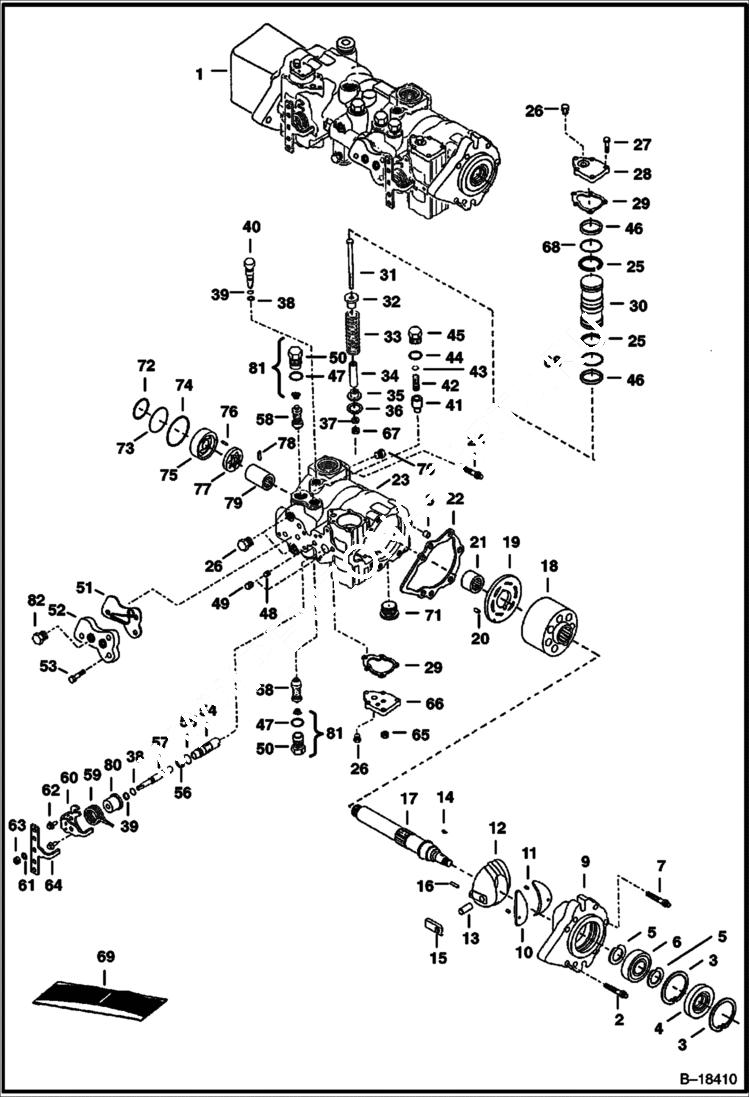

Запчасти Bobcat 800s HYDROSTATIC PUMP (M46 - Servo Assisted Steering) (Left Half) (S/N 5144 25001, 5145 25001, 5146 25001 & Above) HYDROSTATIC SYSTEM

1

PUMP NLA - M91-46742 - complete with boss thread gear pump - standard flow - Order 6673915 pump, also Order 6717662 tee, 19J000012B (2) clamp, 58K000214B O-ring & 17C000620B (4) bolt - Was 6673760 - A

1

PUMP NLA - Order 6673915REM - M91-46746 - complete W/4-bolt flange gear pump - standard flow - Order 6673915REM - Was 6673915 - A

1

6673915REM

PUMP, HYD COMPLETE, W/O GEAR PUMP

1

PUMP NLA - M91-46741 - complete with double gear pump - high horsepower option - Order 6673917 pump, also Order 6717662 tee, 19J000012B (2) clamp, 58K000214B O-ring & 17C000620B (4) bolt - Was 6673759

1

6673917REM

PUMP, HYD TANDEM, W/O GEAR PUMP M91-46747 - complete W/4-bolt flange gear pump - high horsepower option - Was 6673917 - A

2

6666220

SCREW

3

669863

RING, SNAP

4

6687191

SEAL, OIL Was 6645090 - A

5

658128

RING, SNAP

6

654299

BEARING

7

6666219

BOLT

8

6634592

PIN

9

6656076

COVER front

10

6634613

BEARING journal

11

791355

ROLL PIN

12

6634382

SWASHPLATE W/Ref. 13 & 16

13

6632464

PIN

14

6J807

KEY, WOODRUFF

14

6682261

KEY hex

15

6631428

SLEEVE

16

6673049

PIN

17

6666221

SHAFT half moon

17

6682260

SHAFT hex

18

6670274

BLOCK

19

6665122

PLATE

20

6634553

PIN

21

6631022

BEARING

22

6640612

GASKET

23

6656074

HOUSING

24

93G832

BOLT Was 94G-832 - D

25

6659256

BEARING

26

6645086

PLUG

27

6660434

SCREW

28

6645072

COVER servo

29

6634425

GASKET

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6653728

NUT

38

6645079

O-RING

39

6631467

BACK-UP RING

40

6632462

VALVE bypass

41

6518656

VALVE charge relief

42

6670272

SPRING

43

6598058

SHIM KIT .005, .010, .020, .050, .100

44

79K10

O RING 10

45

6631465

PLUG

46

6634488

KIT W/Ref. 68

47

6645083

O-RING

48

6669257

ORIFICE 0.054

49

6518510

PLUG

50

6660418

PLUG With O-ring

51

6665850

GASKET

52

6665849

ADAPTER

53

6660780

SCREW

54

6657315

SLEEVE, WEAR Was 6672187 - A

55

25K20020

O RING 10

56

6631468

WASHER

57

6715125

SPOOL Was 6673945 - A

58

6669742

RELIEF VALVE 4712 PSI (325 Bar)

59

SPRING NLA - Order 6677905, 6677906, 6673046 & 6677907 - Was 6673947 - A

59

6677907

SPRING

60

BRACKET NLA - Order 6677905, 6677906, 6673046 & 6677907 - Was 6673948 - A

60

6677905

BRACKET

61

6653735

WASHER

62

6653733

SCREW

63

6653734

NUT

64

6673046

HANDLE

64

HANDLE NLA - Order 6677905, 6677906, 6677907 & 6673046

65

6631458

NUT

66

6645071

COVER

67

6673048

NUT locking

68

6653730

O-RING

69

6664371

KIT, SEAL

70

6645085

PLUG

71

24K9

PLUG

72

6657322

O-RING

73

6657323

O-RING

74

6655042

O-RING

75

6661788

COVER gerotor

76

6660435

PIN

77

6661633

ROTOR ASSY. assy.

78

6657325

PIN

79

6631438

COUPLING

80

SPRING GUIDE NLA - Order 6677905, 6677906, 6677907 & 6673046 - Was 6673946 - A

80

6677906

SPRING GUIDE

81

6672709

KIT plug, O-ring & spring

82

6645086

PLUG
