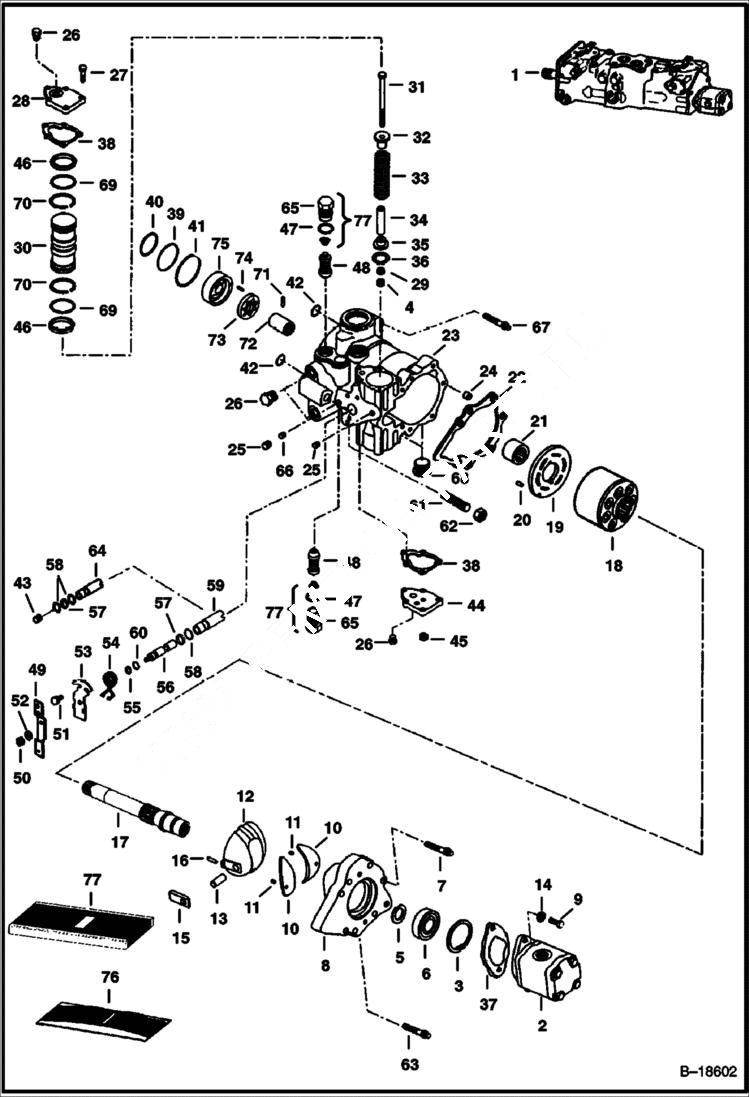

Запчасти Bobcat 800s HYDROSTATIC PUMP (M46 - Servo Assisted Steering) (Right Half) (5144 18904, 5145 20062, 5146 20146 & Below) HYDROSTATIC SYSTEM

1

PUMP NLA - M91-46598 - complete with gear pump - for standard flow - Order 6669719REM pump - Was 6669045 - B

1

PUMP NLA - M91-46627 - complete with gear pump - for standard flow - Order 6669719REM - Was 6669719 - A

1

6669719REM

PUMP, HYD COMPLETE, W/O GEAR PUMP

1

PUMP NLA - M91-46616 - complete with double gear pump - for high horsepower option - Order 6669989 pump or 6669989REM pump & gear pump - Was 6669564 - A

1

6669989

PUMP M91-46628 - complete with double gear pump - for high horsepower option

1

6669989REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

GEAR PUMP See Illustration GEAR PUMP/ MS1666 for standard flow

2

GEAR PUMP See Illustration HIGH HORSEPOWER HYDRAULICS/ MS1665 for high horsepower option

3

669863

RING, SNAP

4

6648256

NUT

5

658128

RING, SNAP

6

654299

BEARING

7

6666219

BOLT

8

6657317

COVER, FLANGE

9

6645088

BOLT

10

6634613

BEARING journal

11

791355

ROLL PIN

12

6634382

SWASHPLATE W/Ref. 13 & 16

13

6632464

PIN

14

6518483

WASHER

15

6631428

SLEEVE

16

6673049

PIN Was 6670273 - A

17

6657316

SHAFT

18

6670274

BLOCK Was 6634311 - A

19

PLATE NLA - valve - R.H. - Order 6666596 & 6665122 plate - Was 6634471 - A

19

6666596

PLATE valve - R.H.

20

6634553

PIN

21

6631022

BEARING

22

6640612

GASKET

23

6664370

HOUSING

24

6634592

PIN spring

25

6518510

PLUG

26

6645086

PLUG

27

6660434

SCREW

28

6645072

COVER servo

29

6653728

NUT locking

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6660339

GASKET Was 6645080 - B

38

6634425

GASKET

39

6657323

O-RING

40

6657322

O-RING

41

6655042

O-RING

42

6653738

O-RING

43

6631471

WASHER

44

6645071

COVER

45

6631458

NUT

46

6634488

KIT W/Ref. 69

47

79K12

O RING 10

48

6669742

RELIEF VALVE 4712 PSI (325 Bar) - Was 6672535 - B,D

49

6657319

HANDLE

50

6653734

NUT

51

6653733

SCREW

52

6653735

WASHER

53

6631453

BRACKET

54

6631449

SPRING

55

6631467

BACK-UP RING

56

6666211

VALVE SPOOL

57

6631468

WASHER

58

25K20020

O RING 10

59

6657315

SLEEVE, WEAR

60

6645079

O-RING

61

6631642

STUD

62

61D8

NUT 5

63

6666220

SCREW

64

SLEEVE NLA - service - Was 6667897 - A

65

6660418

PLUG W/ O-ring - Was 6850006 - B

66

6669257

ORIFICE .054 - Was 6657320 - B

67

93G832

BOLT

68

24K9

PLUG

69

6653730

O-RING

70

6659256

BEARING

71

6657325

PIN

72

6631438

COUPLING

73

6661633

ROTOR ASSY. assy.

74

6660435

PIN

75

6661788

COVER geroler - Was 6666597 - A

76

6664371

KIT, SEAL See Illustration HYDROSTATIC PUMP/ B18601 37-42 - Also W/Ref. 4 & 44-53 - Was 6661039 - A

77

6672709

KIT for noisy reliefs - includes plug, O-ring & spring
