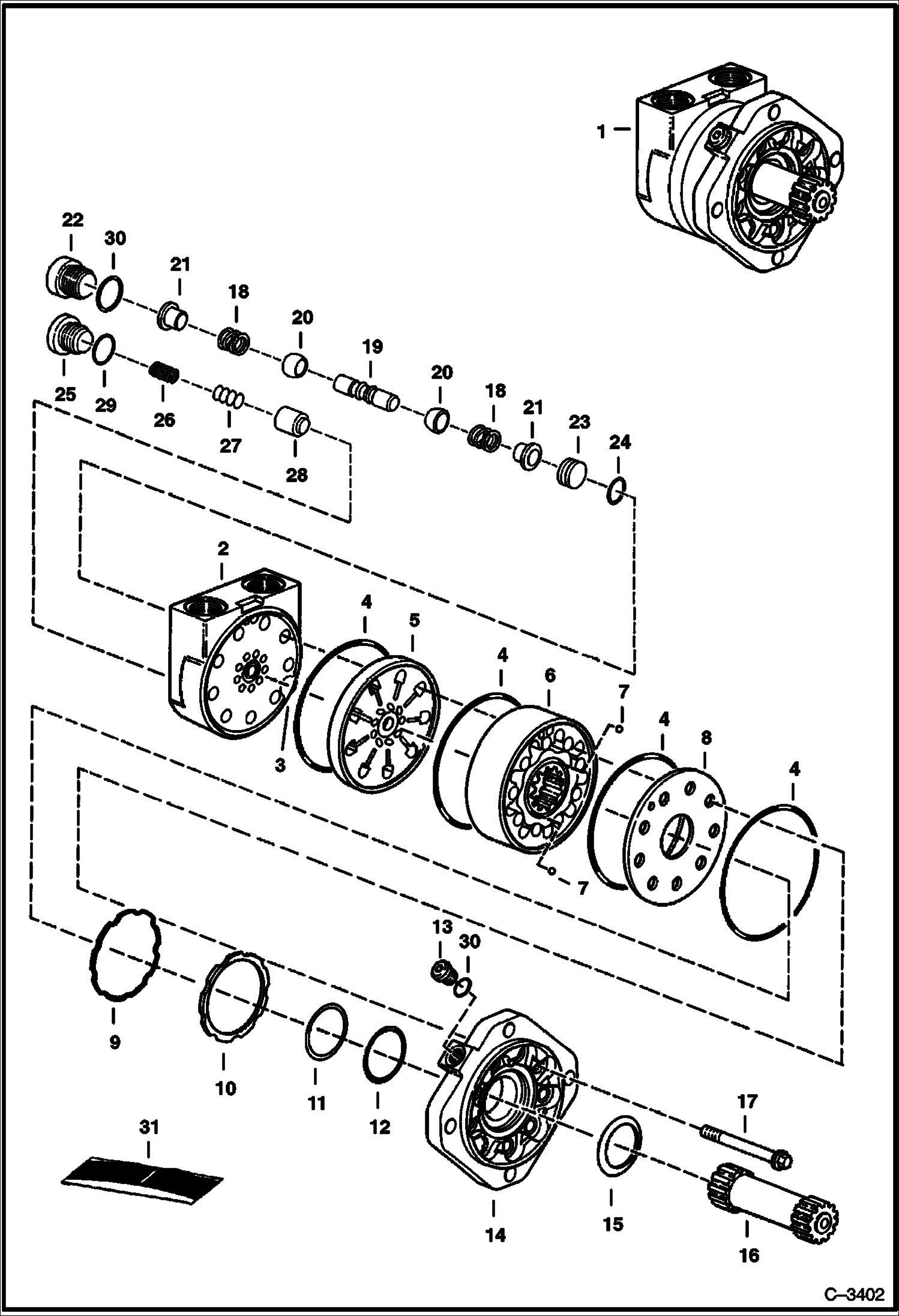

Запчасти Bobcat 800s HYDROSTATIC MOTOR (Eaton) (5144 24999, 5145 24999, 5146 24999 & Below) HYDROSTATIC SYSTEM

1

6662854

MOTOR, DRIVE HYD kit - Ref. 2-30

2

6668074

HOUSING

3

6668092

O-RING

4

6668075

SEAL square cut

5

6668091

PLATE valve

6

GEROLER NLA - Order 6662854 - Was 6668083 - A

7

6668084

BALL .219'' diameter

7

6651542

BALL, STEEL .188'' diameter

8

6668078

PLATE balance assy.

9

RING NLA - back-up - Was 6668094 - A

10

SEAL NLA - Was 6668093 - A

11

RING NLA - back-up - Was 6668076 - A

12

O-RING NLA - Was 6668077 - A

13

6632271

PLUG W/Ref. 30

14

HOUSING NLA - Was 6668085 - A

15

6513520

SEAL

16

6668086

SHAFT drive

17

BOLT NLA - Was 6668087 - A

18

6513533

SPRING

19

6668088

PISTON round

19

6668088

PISTON shuttle - W/flat - fast acting - Was 6685066 - A

20

6513532

POPPET

21

6561218

SHUTTLE

22

6668089

PLUG, MOTOR W/Ref. 30

23

PLUG NLA - Was 6513534 - A

24

6668090

O-RING

25

6668079

PLUG, MOTOR W/Ref. 29

26

6668081

SPRING

27

6668080

SHIM

28

6668082

POPPET

29

79K5

O RING 10

30

79K6

O RING 10

31

6668198

SEAL KIT Ref. 3, 4, 9-12, 15, 24, 29 & 30
