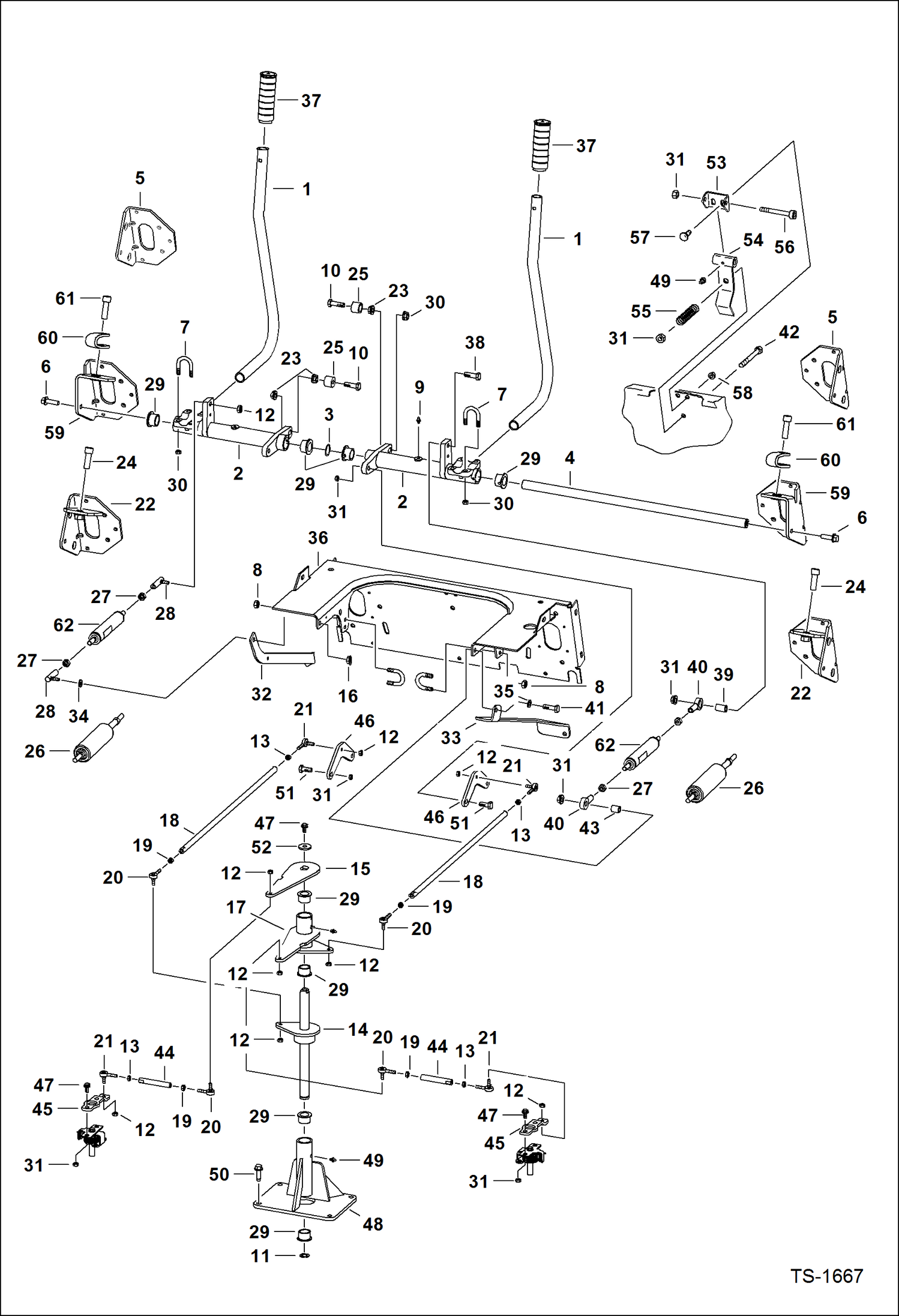

Запчасти Bobcat 800s HAND CONTROLS (Pedestal Steering - M46 Pump) (S/N 5144 18295, 18706-10, 18885-6) (18905-24999 5145 20063-24999 5146 20147-24999) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

6703881

BELLCRANK

3

6599741

WASHER wave

4

6716545

ROD

5

6577230

BRACKET

6

45C620

BOLT - Was 45C000624B - B

7

6732997

U-BOLT - Was 6700768 - A

8

85D5

NUT 5

9

6518200

FITTNG, GREASE 10

10

6705966

BOLT

11

9JM150

RETAINER

12

86D4

NUT

13

8D4

NUT

14

6715117

SHAFT controls

15

6715109

BRACKET linkage

16

86D6

NUT

17

6715121

SHAFT assy. controls

18

6715123

LINK

19

13D4

NUT L.H. thread

20

6715126

BALL JOINT L.H. thread

21

6578363

ROD END

22

BRACKET NLA - R.H. - Order Ref. 59-61 - Was 6733022 - A

22

BRACKET NLA - L.H. - Order Ref. 59-61 - Was 6733024 - A

23

57D6

NUT 5

24

93G824

BOLT - Was 73G824 - A

25

6704435

WEAR CAM

26

GAS SPRING NLA - Japan Option - Order Ref. 62 - Was 6649551 - A

27

8D6

NUT 5

28

6599744

BALL JOINT

29

6703879

BUSHING, PLASTIC W/tab

30

83D6

NUT 5

31

95D6

NUT - Was 91D000006B - A

32

6703551

BRACE L.H.

33

6708064

BRACE R.H.

34

59D6

NUT - Was 62D000006B - B

35

25E18

WASHER

36

6707475

PANEL See Illustration PANELS/ MS1675

37

6513963

GRIP not Use W/multi-switch handles

38

17C636

BOLT

39

6708314

BUSHING, SPACER

40

6512954

ROD END R.H. threads

41

17C632

BOLT 5

42

17C664

BOLT

43

6705484

BUSHING

44

6715124

LINK

45

6715967

LEVER pintle

46

6715110

MOUNT steering

47

45C620

BOLT

48

6716291

PEDESTAL

49

10H25

FITTING, GREASE 5

50

84G3720

BOLT

51

17C620

BOLT

52

619021

WASHER, 5

53

6701951

MOUNT

54

6701950

ARM

55

6505082

SPRING

56

38C836

BOLT

57

10C512

BOLT

58

59D5

NUT 5

59

7128600

BRACKET RH

59

7128601

BRACKET LH

60

7121779

PAD

61

73G828

BOLT

62

7188108

GAS SPRING
