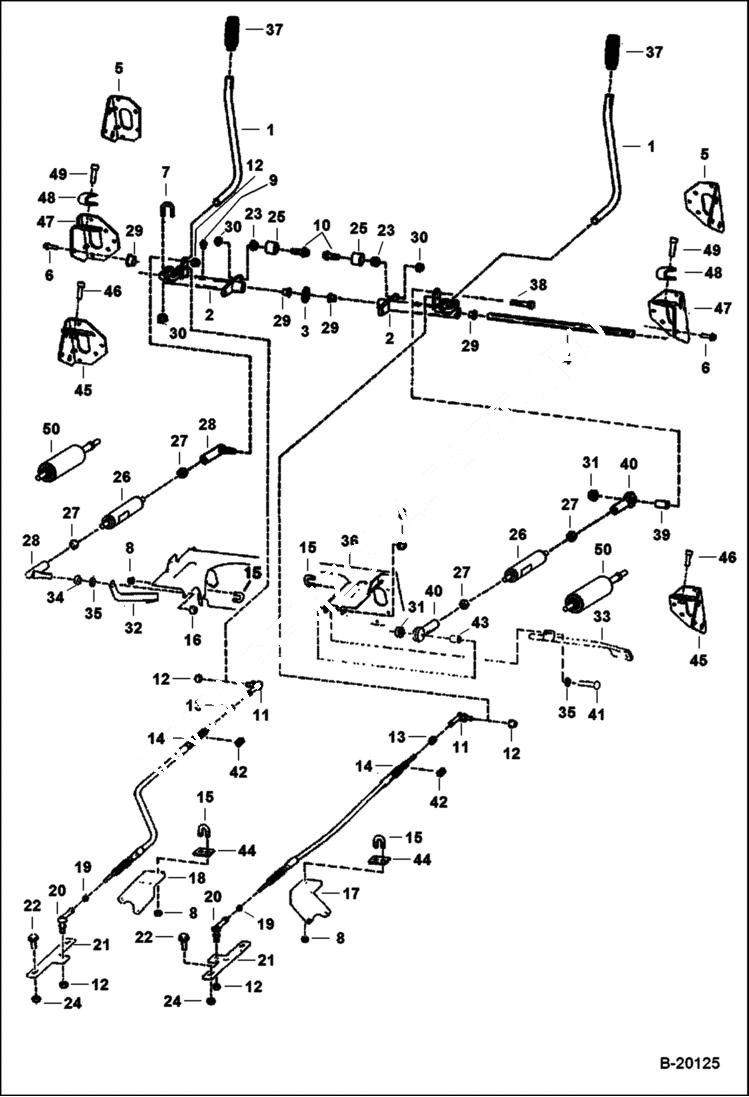

Запчасти Bobcat 800s HAND CONTROLS S/N 5144 18294, 18296-18705, 18711-18884 & 18887-18904 5145 20063 5146 20146 & Bel. HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

6703881

BELLCRANK

3

6599741

WASHER wave

4

ROD NLA - Use W/17C-616 bolt - Order 6716545 rod & 45C000620B (2) bolt - Was 6576250 - A

4

6716545

ROD Use W/ 45C000620B bolt

5

6577230

BRACKET

6

17C616

BOLT 5

6

45C620

BOLT Was 45C000624B - B

7

6732997

U-BOLT Was 6700768 - A

8

85D5

NUT 5

9

6518200

FITTNG, GREASE 10

10

6705966

BOLT

11

6631036

JOINT R.H. thread - I.D. only

12

86D4

NUT

13

8D4

NUT

14

6713905

CABLE W/Ref. 42 - Was 6667802 - A

15

6592766

U-BOLT

16

86D6

NUT

17

6703627

MOUNT

18

6703626

MOUNT

19

13D4

NUT L.H. thread

20

6652799

BALL JOINT L.H. thread - I.D. only

21

6704616

LEVER pintle

21

6713969

LEVER pintle

22

35C610

BOLT 5

23

57D6

NUT 5

24

85D6

NUT, 5

25

6704435

WEAR CAM

26

GAS SPRING NLA - Japan Option - Order Ref. 50 - Was 6649551 - A

27

8D6

NUT 5

28

6599744

BALL JOINT

29

6703879

BUSHING, PLASTIC W/tab

30

83D6

NUT 5

31

95D6

NUT Was 91D000006B - A

32

6703551

BRACE L.H.

33

6708064

BRACE R.H.

34

59D6

NUT Was 62D000006B - B

35

25E18

WASHER

36

6707475

PANEL See Illustration PANELS/ MS1675

37

6513963

GRIP not Use W/ multi-switch handles

38

17C636

BOLT

39

6708314

BUSHING, SPACER

40

6512954

ROD END R.H. threads

41

17C632

BOLT 5

42

6666534

SEAL

43

6705484

BUSHING

44

6713920

SHIM

45

BRACKET NLA - R.H. - Order Ref. 47-49 - Was 6733022 - A

45

BRACKET NLA -L.H. - Order Ref. 47-49 - Was 6733024 - A

46

93G824

BOLT Was 73G824 - A

47

7128600

BRACKET RH

47

7128601

BRACKET LH

48

7121779

PAD

49

73G828

BOLT

50

7188108

GAS SPRING
