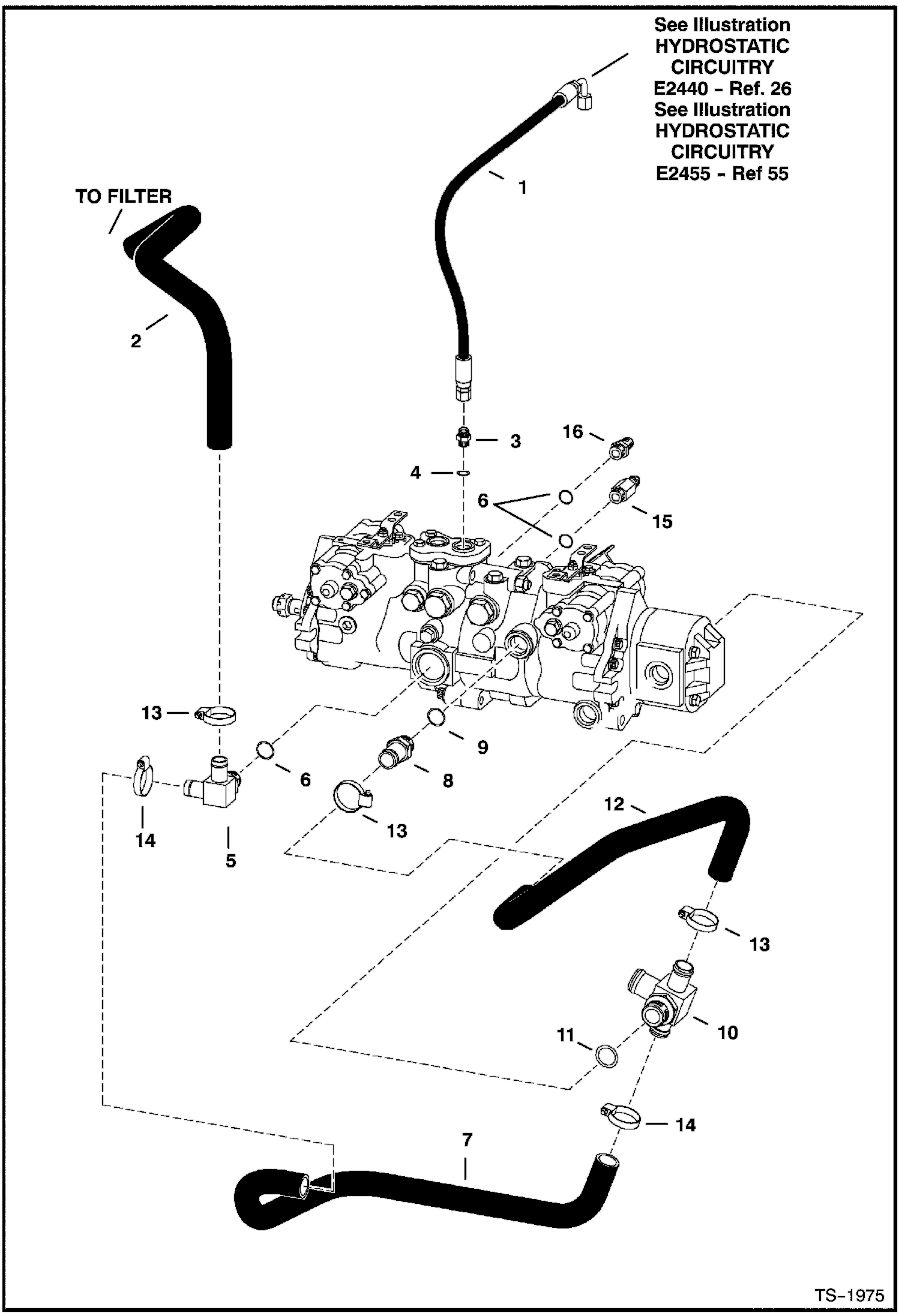

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (M46 Pump Option) (S/N 5144 25001, 5145 25001 & 5146 25001 & Above) HYDROSTATIC SYSTEM

1

6716656

HOSE

1

6716462

HOSE

2

6716655

HOSE

3

15KB0606

FITTING, HYD CONNECTOR W/Ref. 4

3

97K6

O RING flared end

4

99K6

O RING

5

6716653

ELBOW W/Ref. 6

6

99K16

O-RING

7

6708473

HOSE

8

6715715

FITTING W/Ref. 9

9

99K12

O RING

10

6716652

TEE W/Ref. 11 - tapered boss face

10

97K6

O RING flared end

11

99K16

O-RING Was 99K000014B - B

12

6716654

HOSE

13

5HM35

HOSECLAMP

14

5HM42

HOSECLAMP

15

6715868

CONNECTOR W/Ref. 6 - long

15

97K16

O-RING flared end

16

6628592

ADAPTER W/Ref. 6 - short

16

97K16

O-RING flared end
