Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5144 11001-24999, 5145 11001-24999 & 5146 11001-24999) HYDROSTATIC SYSTEM

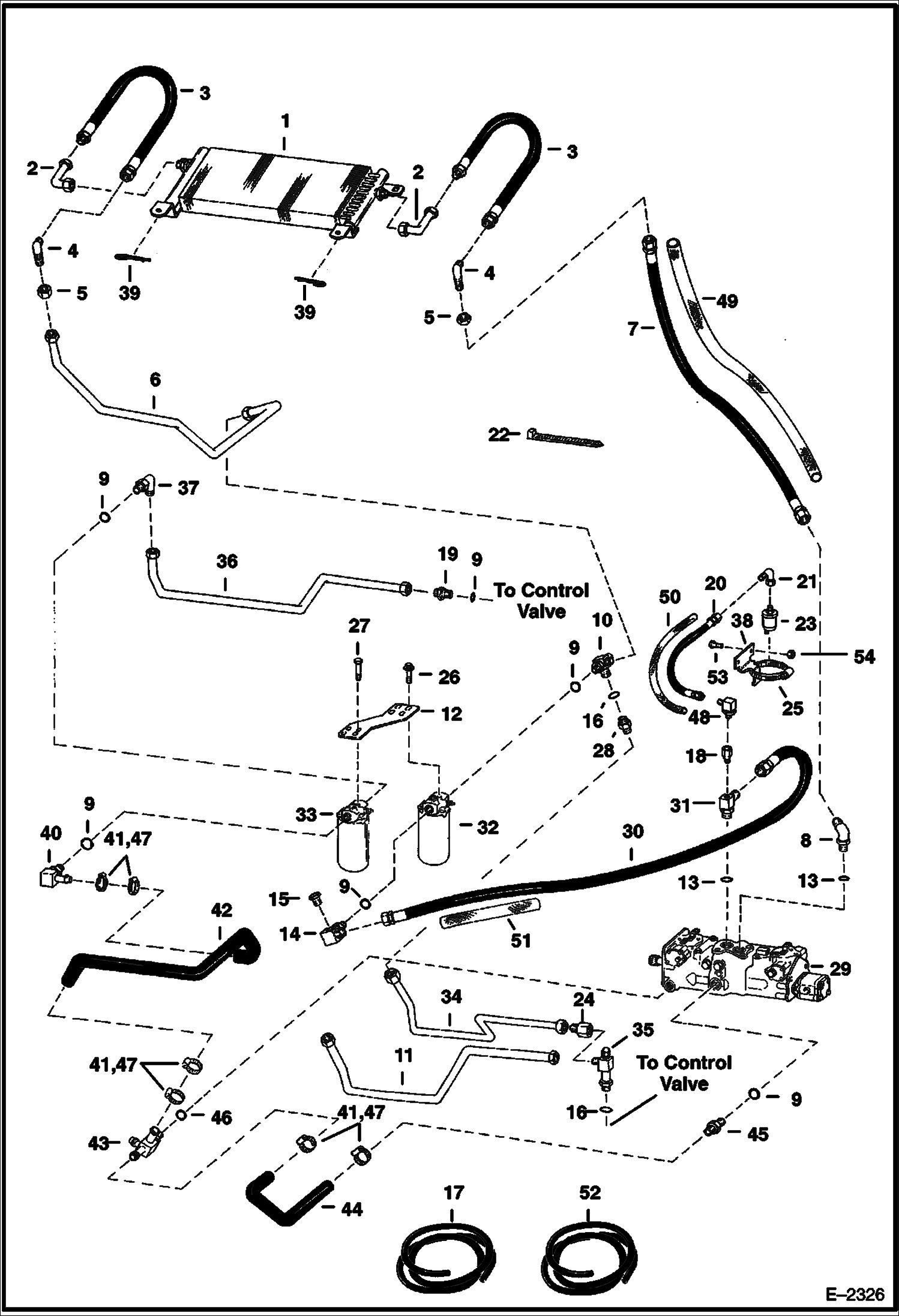

Схема запчастей Bobcat 800s - HYDROSTATIC CIRCUITRY (S/N 5144 11001-24999, 5145 11001-24999 & 5146 11001-24999) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667896

EXCHANGER, OIL COOLER oil

2

6703012

TUBE

2

11K8

ELBOW

3

6654205

HOSE 23.5'' (584mm) long - Use W/ tube 6703012

3

6714348

HOSE 27'' (686mm) long - Use W/ elbow 11K000008B

4

88F8

FITTING flat boss face

4

FITTING NLA - tapered boss face - Was 88FN00008B - A

4

97K12

O'RING flared end

5

86F8

NUT 5

6

6710807

TUBE

7

6714917

HOSE W/ 45 degree end & 1 straight end

7

6703461

HOSE W/ 2 straight ends

8

18K7

FITTING W/Ref. 9 - flat boss face

8

FITTING, HYD ELBOW NLA - W/Ref. 9 - tapered boss face - Was 18KN00007B - A

8

97K10

O-RING 10 flared end

8

17KB1010

FITTING, HYD ELBOW W/Ref. 9 - flat boss face

9

79K12

O RING 10 flat boss end

9

99K12

O RING tapered boss face

10

6706364

ADAPTER W/Ref. 9 - W/O BOSS Option

10

6706365

ADAPTER W/Ref. 9 - W/ BOSS Option

11

6710808

TUBE PN banded to tube

12

6710363

MOUNT

13

79K10

O RING 10 flat boss face

13

99K10

O'RING tapered boss face

14

6714783

ADAPTER W/Ref. 13 - flat boss face - Was 6706238 - A

14

6715189

TEE W/Ref. 13 - tapered boss face

14

97K12

O'RING flared end

15

24K5

PLUG W/Ref. 16 - flat boss face

15

PLUG NLA - W/Ref. 16 - tapered boss face - Was 24KN00005B - A

16

79K6

O RING 10

16

99K6

O RING tapered boss face

17

6665877

COVER bulk - Sold Per Foot - 1.66'' (42,2mm) I.D.

18

6563922

SNUBBER W/ filter

18

6563920

FILTER

19

15K8

FITTING W/Ref. 9 - flat boss face

19

FITTING, HYD CONNECTOR NLA - W/Ref. 9 - tapered boss face - Was 15KN00008B - A

19

97K12

O'RING flared end

19

15KB1212

FITTING, HYD CONNECTOR W/Ref. 9 - flat boss face

20

6714854

HOSE Was 6711169 - A

21

85F3

ELBOW

22

6610510

TIE

23

SENDER See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2261 hyd. chg. press.

24

6672766

CHECK VALVE See Illustration AUXILIARY RELIEF PRESSURE KIT/ TS1610 for kit

25

42H24

CLAMP-5

26

35C610

BOLT 5

27

17C614

BOLT

28

15K5

FITTING W/Ref. 16 - flat boss face

28

ADAPTOR NLA - W/Ref. 16 - tapered boss face - Was 15KV00005B - A

28

97K6

O RING tapered boss end

28

15KB0606

FITTING, HYD CONNECTOR W/Ref. 16 - flat boss face

29

PUMP See Illustration HYDROSTATIC PUMP/ B18601

30

6714853

HOSE W/O solid linkage steering - Was 6711164 - A

30

6715127

HOSE W/ solid linkage steering

31

6579651

ELBOW W/Ref. 13 - flat boss face

31

6715719

ELBOW W/Ref. 13 - tapered boss face

31

97K12

O'RING flared end

32

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818A W/BOSS option

32

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

32

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 W/O BOSS option - W/ internal check

32

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

33

6661282

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818A W/BOSS option - W/ internal check

33

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

33

6661335

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 W/O BOSS option - W/ internal check

33

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

34

6716003

TUBELINE Use W/Ref. 24

35

TEE NLA - W/Ref. 16 - W/O flared end O-rings - Was 6587889 - A

35

6805243

TEE W/Ref. 16 - W/ flared end O-rings

35

97K6

O RING flared end

36

6710806

TUBE

37

17K8

FITTING W/Ref. 9 - flat boss face

37

FITTING, HYD ELBOW NLA - W/Ref. 9 - tapered boss face - Was 17KV00008B - A

37

97K12

O'RING flared end

37

17KB1212

FITTING, HYD ELBOW W/Ref. 9 - flat boss face

38

6704319

MOUNT

39

1318565

COTTER PIN

40

1321499

FITTING W/Ref. 9 - flat boss face

40

6715718

ELBOW W/Ref. 9 - tapered boss face

41

44H16

CLAMP Was 6666865 - A

42

6710845

HOSE Was 6708473 - B,D

43

6706487

TEE W/Ref. 46

44

6706795

HOSE

45

1309919

CONECTOR W/Ref. 9 - flat boss face

45

6715715

FITTING WRef. 9 - tapered boss face

46

79K20

O RING 10

47

5HM35

HOSECLAMP constant tension

48

83F3

ELBOW 5

49

COVER NLA - 23'' (584mm) long - Order Ref. 52

50

COVER NLA - 22'' (559mm) long - Order Ref. 52

51

COVER NLA - 17'' (432mm) long - Order Ref. 17

52

6665875

COVER bulk - Sold Per Foot - 1.12 '' (28,4mm) I.D.

53

17C416

BOLT

54

85D4

NUT 5
