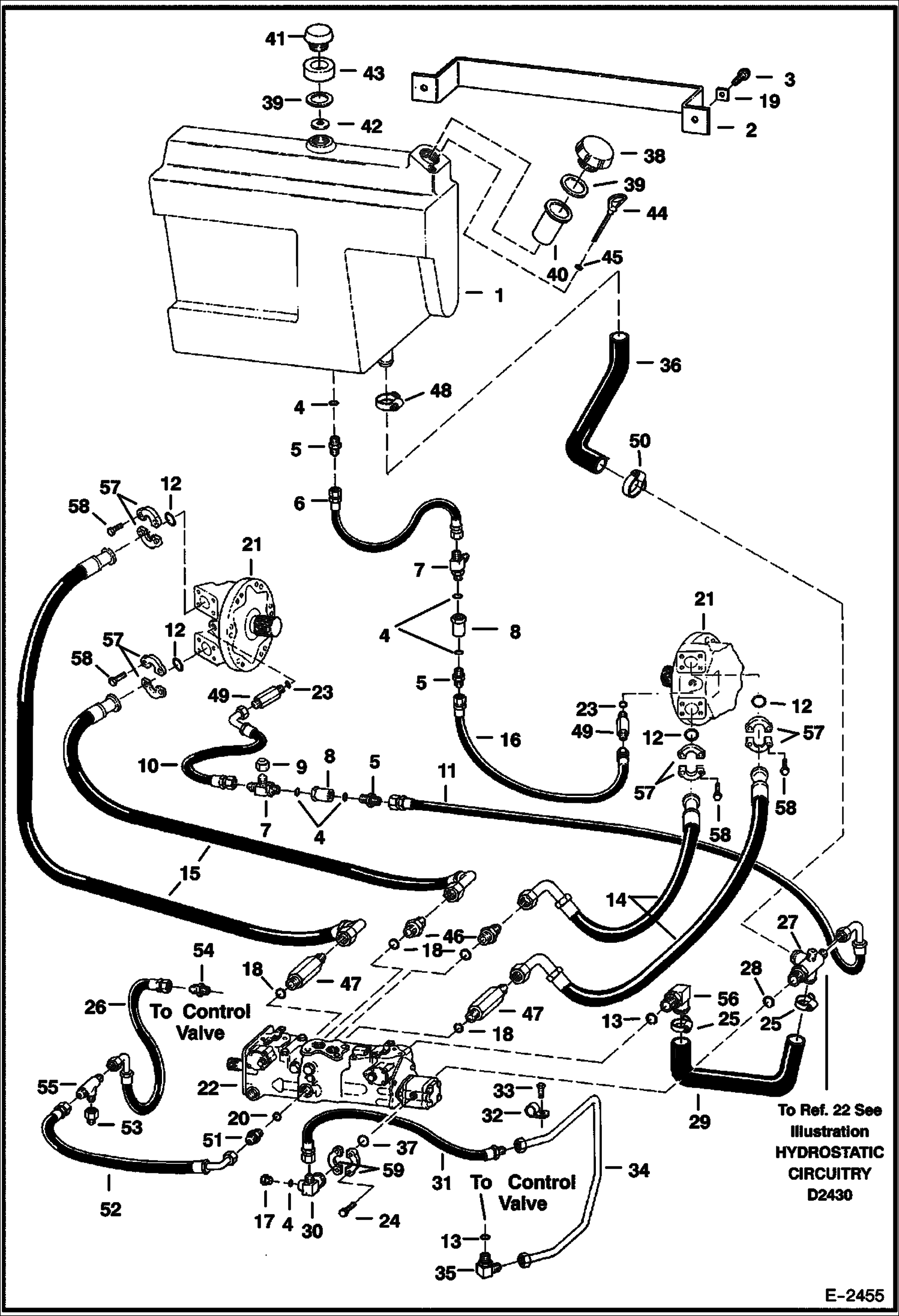

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5144 27762, 5145 25302, 5146 25304 & Above) HYDROSTATIC SYSTEM

1

6704551

TANK

2

6579939

BAND

3

84G3712

BOLT 5

4

99K6

O RING tapered boss face

4

79K6

O RING 10 flat boss face

5

ADAPTOR NLA - W/Ref. 4 - tapered boss face - Was 15KV00005B - A

5

97K6

O RING flared end

5

15KB0606

FITTING, HYD CONNECTOR W/Ref. 4 - flat boss face

6

6579946

HOSE

6

6716000

HOSE

7

FTG HYD STRAIGHT TEE NLA - W/Ref. 4 - tapered boss face - Was 21KV00005B - A

7

97K6

O RING flared end

7

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 4 - flat boss face

8

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

9

36K5

CAP

10

6728079

HOSE Was 6717332 - A

11

6716300

HOSE

12

55K219

O'RING Was 58K000219B - B

13

99K12

O RING tapered boss face

14

6673954

HOSE

15

6673955

HOSE

16

6717370

HOSE

17

PLUG NLA - W/Ref. 4 - tapered boss face - Was 24KN00005B - A

17

24K5

PLUG W/Ref. 4 - flat boss face

18

79K12

O RING 10 Was 75K000012B - B

19

6559447

WASHER

20

99K10

O'RING tapered boss face - Was 75K000010B - B

20

79K10

O RING 10 flat boss face

21

MOTOR See Illustration HYDROSTATIC MOTOR/ C3402

22

PUMP See Illustration HYDROSTATIC PUMP/ B18601

23

99K8

O-RING

24

17C620

BOLT

25

5HM35

HOSECLAMP

26

6716300

HOSE

26

6716248

HOSE

27

6716468

TEE W/Ref. 28

28

75K16

O RING 10

29

6716175

HOSE

30

7103953

TEE W/Ref. 37 - 4-bolt flange - Was 6717662 - A

30

97K12

O'RING flared end

31

6737341

HOSE 30.5'' (774.7 mm) long - one end male other female - A

32

30H46

CLIP

33

84G3712

BOLT 5

34

6716506

TUBELINE

35

17KB1212

FITTING, HYD ELBOW W/Ref. 13 - tapered boss face - Was 17KV00008B - A

35

97K12

O'RING flared end

36

6710846

HOSE

37

55K214

O-RING Was 58K000214B - B

38

6728149

CAP , HYD NON VENTED Fill - Also Order Ref. 39 - Was 6532508 - A

39

6700631

GASKET

40

7120881

SCREEN, FILLER Was 6569219 - A

41

6727475

CAP, OIL HYD breather - Also Order Ref. 39 - Was 6577785 - A

42

6701552

BAFFLE Use W/6577785

43

6703427

FOAM FILTER Use W/6577785

44

6577459

DIPSTICK

45

25K20010

O RING 10

46

15KB1612

FITTING, HYD CONNECTOR W/Ref. 18 - Was 6715878 - A

47

6716243

ADAPTER W/Ref. 18

48

6672281

CLAMP constant tension

49

6717306

ADAPTER W/Ref. 23

49

97K6

O RING flared end

50

5HM42

HOSECLAMP

51

ADAPTER NLA - W/Ref. 20 - tapered boss face - Was 6717173 - A

51

15KB0610

FITTING, HYD CONNECTOR W/Ref. 20 - flat boss face

52

6716299

HOSE

52

6717638

HOSE

53

6563922

SNUBBER assy.

54

6672766

CHECK VALVE

55

6716298

TEE

56

6715718

ELBOW

57

20J16

FLANGE

58

17C728

BOLT

59

19J12

CLAMP
