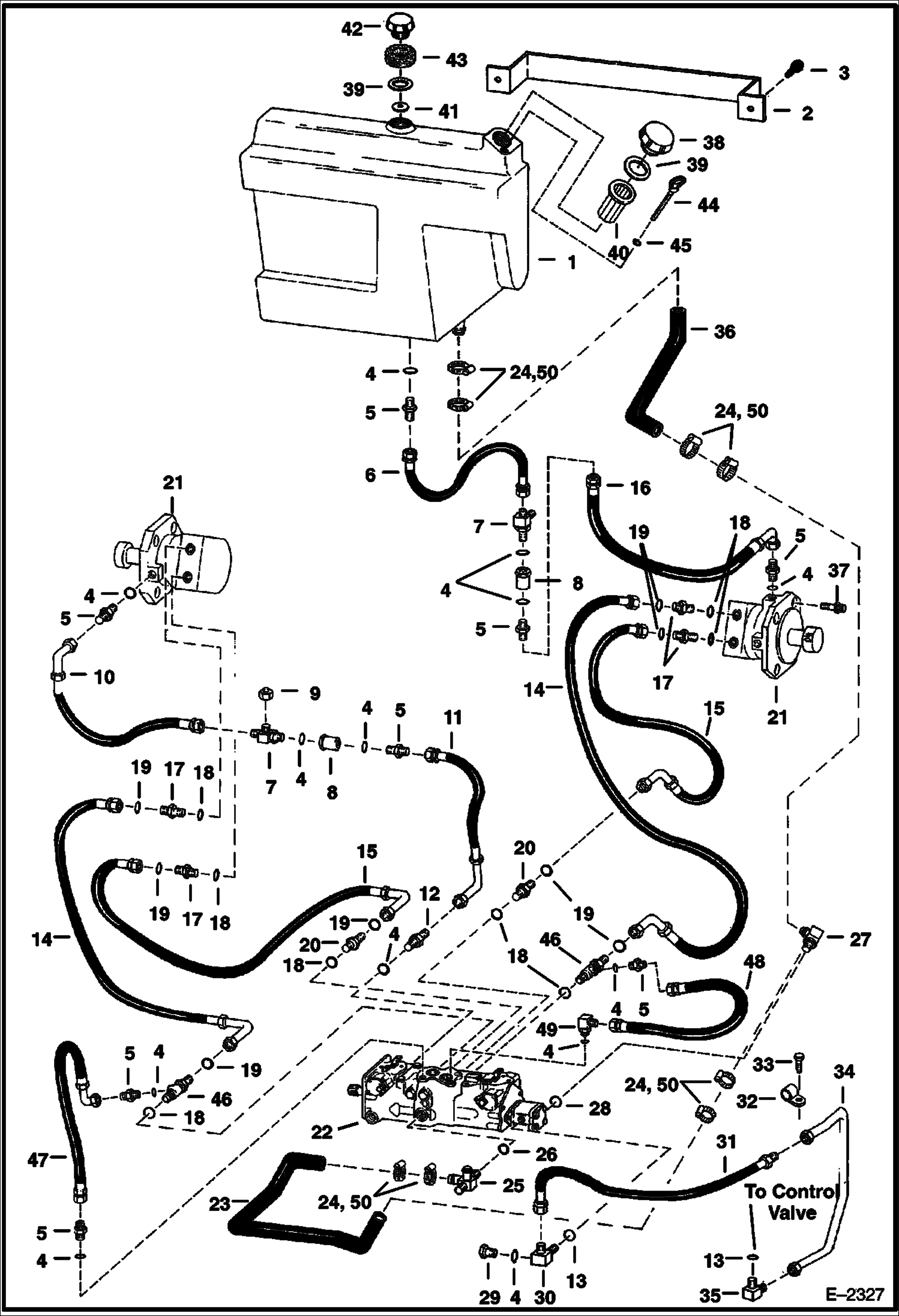

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5144 13792 & 5145 11082 & 5146 11076 & Below) HYDROSTATIC SYSTEM

1

6704551

TANK

2

6579939

BAND

3

84G3712

BOLT 5

4

79K6

O RING 10

5

15K5

FITTING W/Ref. 4

6

6579946

HOSE

7

21K5

TEE W/Ref. 4

8

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

9

36K5

CAP

10

6707234

HOSE

11

HOSE NLA - Order 6730769 Hose - 13.5'' (342,9 mm) long - Was 6712414 - A

11

6730769

HOSE 14.5'' (368,3 mm) long

12

6578812

ADAPTER W/Ref. 13

13

79K12

O RING 10 flat boss face

13

99K12

O RING tapered boss face

14

6713520

HOSE

14

6714540

HOSE Was 6711162 - A

15

6714541

HOSE Was 6711163 - A

16

6711166

HOSE Was 6712145 - D

17

6665206

ELBOW 45 degrees - W/Ref. 18 & 19 - Was 44E001616B - B

18

75K16

O RING 10

19

55K21

O RING 10

20

41E1616

ADAPTER

21

MOTOR See Illustration HYDROSTATIC MOTOR/ C3402

22

PUMP See Illustration HYDROSTATIC PUMP/ B18601

23

6708473

HOSE

24

44H16

CLAMP Was 6666865 - A

25

6706487

TEE W/Ref. 26

26

79K20

O RING 10

27

6706772

TEE W/Ref. 28

28

79K16

O RING 10

29

24K5

PLUG W/Ref. 4

30

6715189

TEE W/Ref. 13 - tapered boss face - Was 6714783 - C

30

97K12

O'RING flared end

31

6714773

HOSE Was 6713039 - C

32

30H46

CLIP Was 30H000042B - B

33

84G3712

BOLT 5

34

6714743

TUBELINE Was 6710809 - C

35

17K8

FITTING W/Ref. 13

36

6710846

HOSE

37

93G1032

BOLT

38

6728149

CAP , HYD NON VENTED fill - Also Order Ref. 39 - Was 6532508 - A

39

6700631

GASKET

40

7120881

SCREEN, FILLER Was 6569219 - A

41

6701552

BAFFLE

42

6727475

CAP, OIL HYD breather - Also Order Ref. 39 & 43 - Was 6577785 - A

43

6703427

FOAM FILTER

44

6577459

DIPSTICK

45

25K20010

O RING 10

46

6713448

ADAPTER shunt - W/Ref. 18 & 19

47

6669987

HOSE

48

6669988

HOSE

49

6558510

ELBOW W/Ref. 4

50

6672281

CLAMP constant tension - Was 5HM00042B - B
