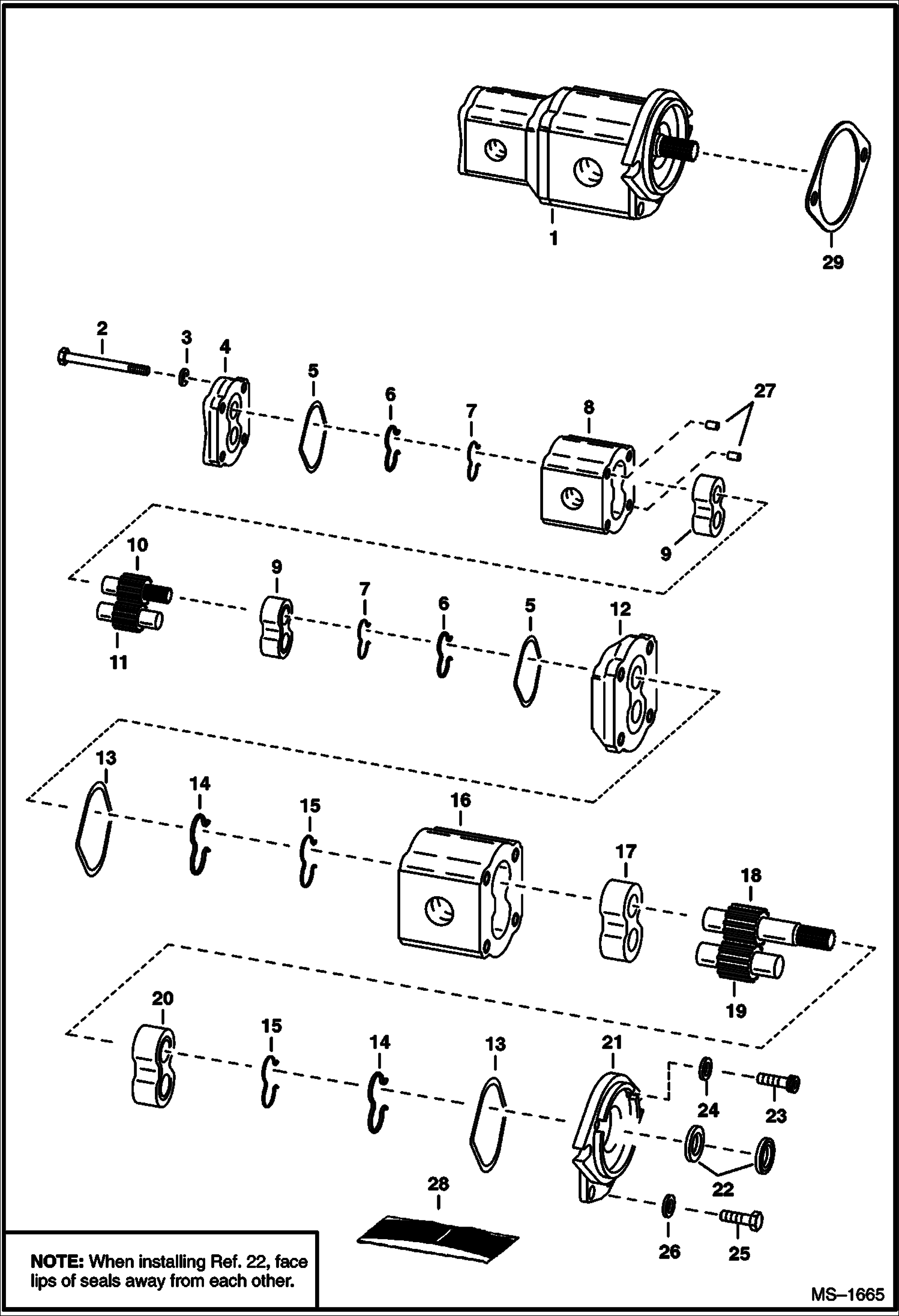

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Double Gear Pump) HIGH FLOW HYDRAULICS

1

PUMP NLA - B5501-36143 - boss thread - Ref. 2-27 - for M91-46616, M91-46628, M91-46142, M91-46741 & M91-46747 pump - Order 6673918 , also Order 6717662 tee, 19J000012B (2) clamp, 58K000214B O-ring & 1

1

6673918

PUMP B5501-37162 - 4-bolt flange - Ref. 2-27 - for M91-46747

1

PUMP NLA - B5501-36981 - boss thread - Ref. 2-27 - for 4445055 pump - Order 6673913 , also Order 6717662 tee, 19J000012B (2) clamp, 58K000214B O-ring & 17C000620B (4) bolt - Was 6672830 - A

1

6673913

PUMP B5501-37254 - 4-bolt flange - Ref. 2-27 - for 4445061

2

BOLT NSS

3

WASHER NSS - used on 6669563 & 6672830 pumps

4

COVER NSS

5

O-RING NSS - seal

6

SEAL NSS

7

RING NSS

8

BODY NSS

9

BEARING NSS

10

GEAR NSS - drive

11

GEAR NSS

12

COVER NSS

13

O-RING NSS - seal

14

SEAL NSS

15

RING NSS

16

BODY NSS

17

BEARING NSS

18

GEAR NSS - drive

19

GEAR NSS - idler

20

BEARING NSS

21

COVER NSS

22

SEAL NSS - used on 6669563 & 6672830 pumps

23

BOLT NSS

24

SEAL NSS

25

BOLT NSS

26

WASHER NSS - used on 6669563 & 6672830 pumps

27

DOWEL NSS

28

6674369

SEAL KIT for B5501-36143 & B5501-37162 - Ref. 5-7, 13-15 & 22

28

6674370

SEAL KIT for B5501-36981 & B5501-37254 - Ref. 5-7 & 13-15

29

6660339

GASKET
