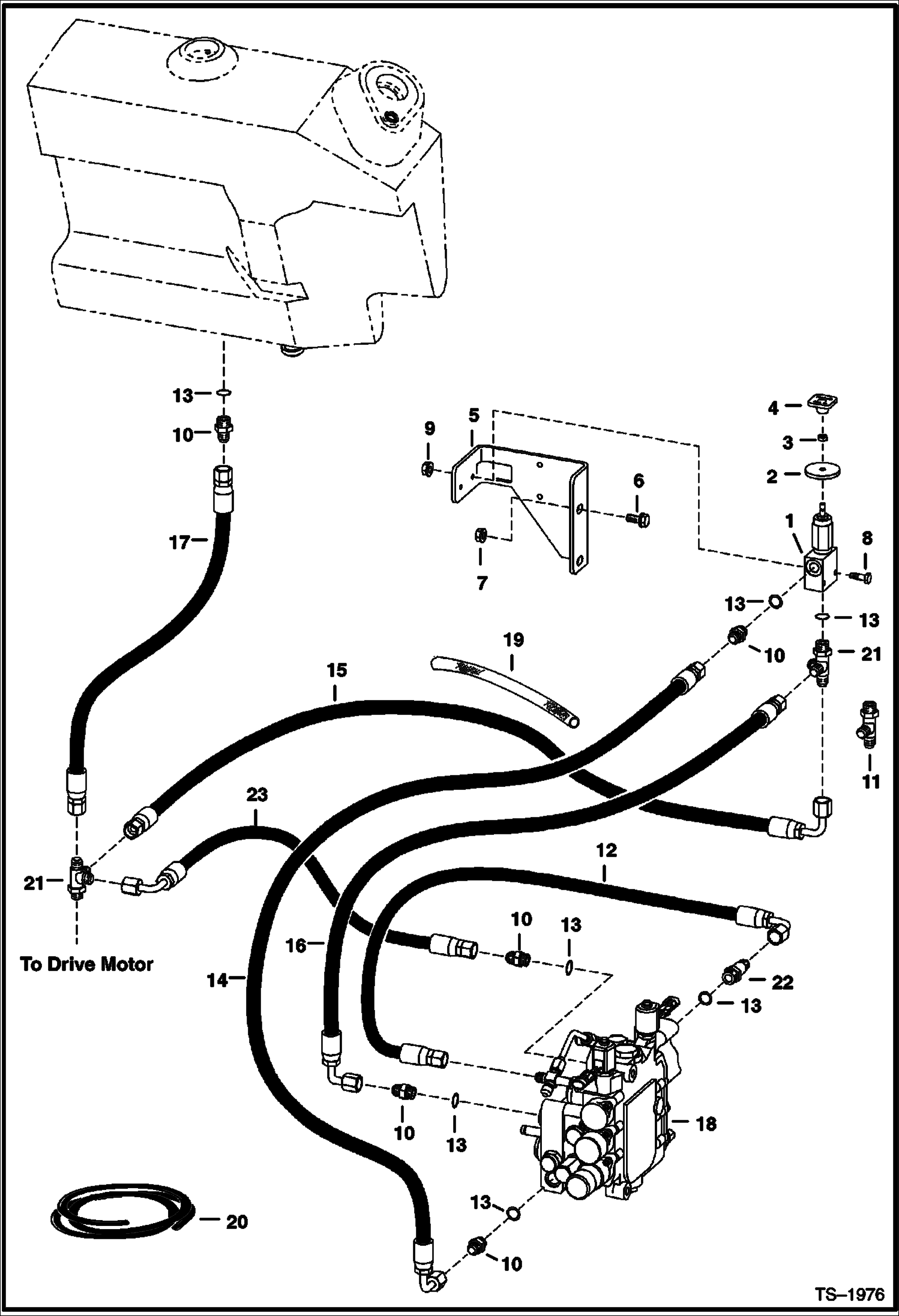

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Manual Lift Release System) (S/N 5144 28656, 5145 25337, 5146 25378 & Above) HIGH FLOW HYDRAULICS

1

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

2

6707101

SEAL neoprene

3

7D4

NUT for 6664858

4

6737524

KNOB red square - Was 6668913 - A

5

6718881

BRACKET Was 6716253 - A

6

35C620

BOLT 5

7

83D6

NUT 5

8

17C428

BOLT

9

83D4

NUT 10

10

ADAPTOR NLA - W/Ref. 13 - tapered boss face - Was 15KV00005B - A

10

97K6

O RING flared end

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

11

FTG HYD STRAIGHT TEE NLA - W/Ref. 13 - tapered boss face - Was 21KV00005B - A

11

97K6

O RING flared end

11

21KB0606

FTG HYD STRAIGHT TEE flat boss face

12

6801712

HOSE

13

99K6

O RING tapered boss face

13

79K6

O RING 10 flat boss face

14

6714856

HOSE 21'' (533mm) long

15

6716464

HOSE

16

6706790

HOSE

17

6716000

HOSE

18

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637

19

SHIELD NLA - 21'' (533mm) long - Order Ref. 20

20

6650108

HOSE COVER bulk - 1.35'' (34,3mm) I.D. - Sold Per foot

21

6718031

TEE

22

FTG HYD L CONNECTOR NLA - W/Ref. 13 - Was 16KN00005B - A

22

97K6

O RING flared end

22

16KB0606

FTG HYD L CONNECTOR W/Ref. 13 - flat boss face

23

6802851

HOSE
