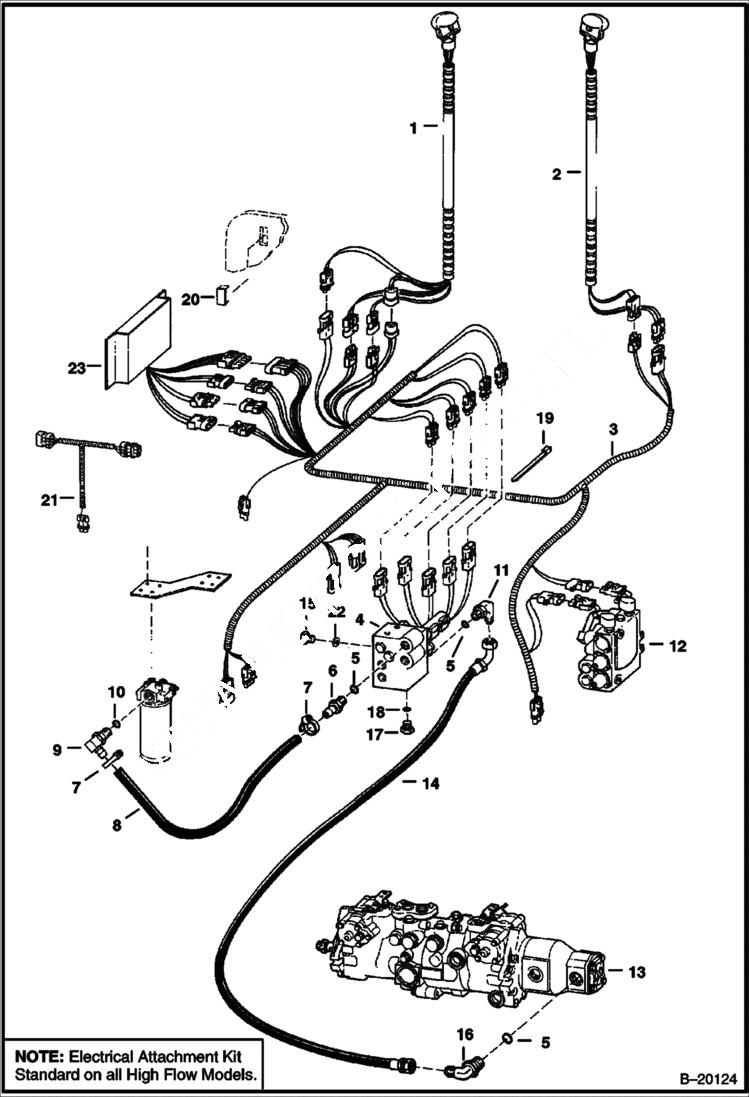

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS HIGH FLOW HYDRAULICS

1

6706568

KIT See Illustration ELECTRICAL CONTROLS CIRCUITRY/ E2277 L.H. multi-switch handle

2

6706735

KIT See Illustration ELECTRICAL CONTROLS CIRCUITRY/ E2277 R.H. multi-switch handle

3

6712524

HARNESS

4

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R

5

79K10

O RING 10 flat boss face

5

99K10

O'RING tapered boss face

6

1316263

ADAPTER W/Ref. 5

7

44H16

CLAMP worm gear

7

5HM29

HOSECLAMP constant tension

8

6715278

HOSE

9

6712977

TEE W/Ref. 10

10

79K5

O RING 10

11

17K7

ELBOW W/Ref. 5 - flat boss face

11

6714134

ELBOW W/Ref. 5 - tapered boss face

12

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637 control

13

PUMP See Illustration HYDROSTATIC PUMP/ B18601

14

6715459

HOSE Was 6712976 - A

15

17C612

BOLT 5

16

18K7

FITTING W/Ref. 5 - flat boss face

16

17KB1010

FITTING, HYD ELBOW W/Ref. 5 - tapered boss face - Was 18KN00007B - A

16

97K10

O-RING 10 flared end

17

24K5

PLUG W/Ref. 18 - flat boss face

17

90KV5

PLUG W/Ref. 18 - tapered boss face - Was 24KN00005B - B

18

79K6

O RING 10 flat boss face

18

99K6

O RING tapered boss face

19

6610510

TIE

20

6668813

SWITCH Was 6665320 - A

21

6710435

HARNESS adapter bleed

22

25E17

WASHER 5

23

6673757

CONTROLLER See Illustration ELECTRICAL CONTROLS CIRCUITRY/ E2277 PWM - Was 6668773 - A
