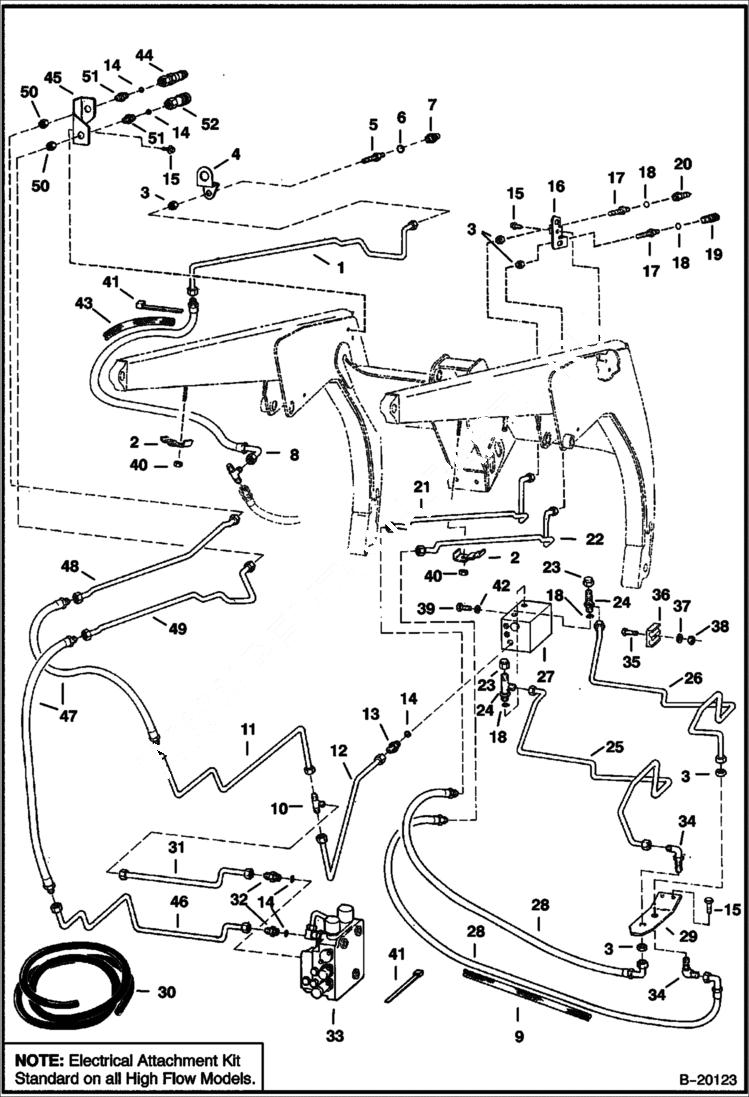

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Auxiliary Hydraulics) HIGH FLOW HYDRAULICS

1

6713011

TUBELINE

1

6716442

TUBELINE Was 6715767 - D

2

6703216

CLAMP Was 6703615 - A

3

86F5

NUT

4

6711913

BRACKET

5

6726479

ADAPTER W/Ref. 6 - Was 6711628 - A

6

79K8

O RING 10

7

6667806

COUPLER male - F.F.

7

6669659

O-RING

8

6716389

HOSE Was 6714878 - A

9

COVER NLA - 55'' (1397mm) long - Order Ref. 30

10

10K8

TEE flat boss face

10

10K8

TEE tapered boss face - Was 10KN00008B - A

10

97K12

O'RING flared end

11

6712963

TUBELINE

12

6712965

TUBELINE

13

6659459

CHECK VALVE inline check - Was 6655572 - A

14

79K12

O RING 10 flat boss face

14

99K12

O RING tapered boss face

15

84G3712

BOLT 5

16

6711674

MOUNT

17

45K5

FITTING flat boss face

17

6716089

CONNECTOR tapered boss face

17

97K6

O RING flared end

18

79K6

O RING 10 flat boss face

18

99K6

O RING tapered boss face

19

6667803

COUPLER, FF FEMALE

20

6667804

COUPLER, FF MALE

20

6669657

SEAL KIT Was 6669659 - B

21

6712997

TUBELINE

22

6712998

TUBELINE

23

36K5

CAP

24

21K5

TEE W/Ref. 18 - flat boss face

24

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 18 - tapered boss face - Was 21KV00005B - A

24

97K6

O RING flared end

25

6714061

TUBELINE Was 6712973 - A

25

6717206

TUBELINE

26

6712974

TUBELINE

27

6669203

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R - select

28

6714877

HOSE Was 6706423 - A

29

6713091

MOUNT

30

6665875

COVER Bulk - Sold Per Foot - 1.25'' (28,5mm) I.D. - Was 6651436 - A

31

6712964

TUBELINE

31

6716161

TUBELINE

32

15K8

FITTING W/Ref. 14 - flat boss face

32

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - tapered boss face - Was 15KN00008B - A

32

97K12

O'RING flared end

33

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637

34

88F5

ELBOW flat boss face

34

88F5

ELBOW tapered boss face - Was 88FN00005B - A

34

97K6

O RING flared end

35

31C420

BOLT 5

36

6578870

CLAMP

37

6579255

WASHER

38

57D4

NUT

39

17C612

BOLT 5

40

59D6

NUT

41

6624289

STRAP, TIE

42

25E17

WASHER 5

43

COVER NLA - 83'' (2108mm) long - Order Ref. 30

44

6674688

COUPLER, FF MALE straight - Was 6667808 - A

44

6679841

SEAL Was 6672026 - A

45

BRACKET See Illustration AUXILIARY HYDRAULICS/ TS2120

46

6712596

TUBELINE

47

6729152

HOSE Was 6714542 - A

48

6711919

TUBELINE

48

6716441

TUBELINE Was 6715768 - D

49

6711920

TUBELINE

49

6716440

TUBELINE

50

86F8

NUT 5

51

45K8

ADAPTOR W/Ref. 14 - flat boss face

51

CONNECTOR NLA - W/Ref. 14 - tapered boss face - Was 6716090 - A

51

97K12

O'RING flared end

51

6812823

ADAPTER W/Ref. 14 - flat boss face

52

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A
