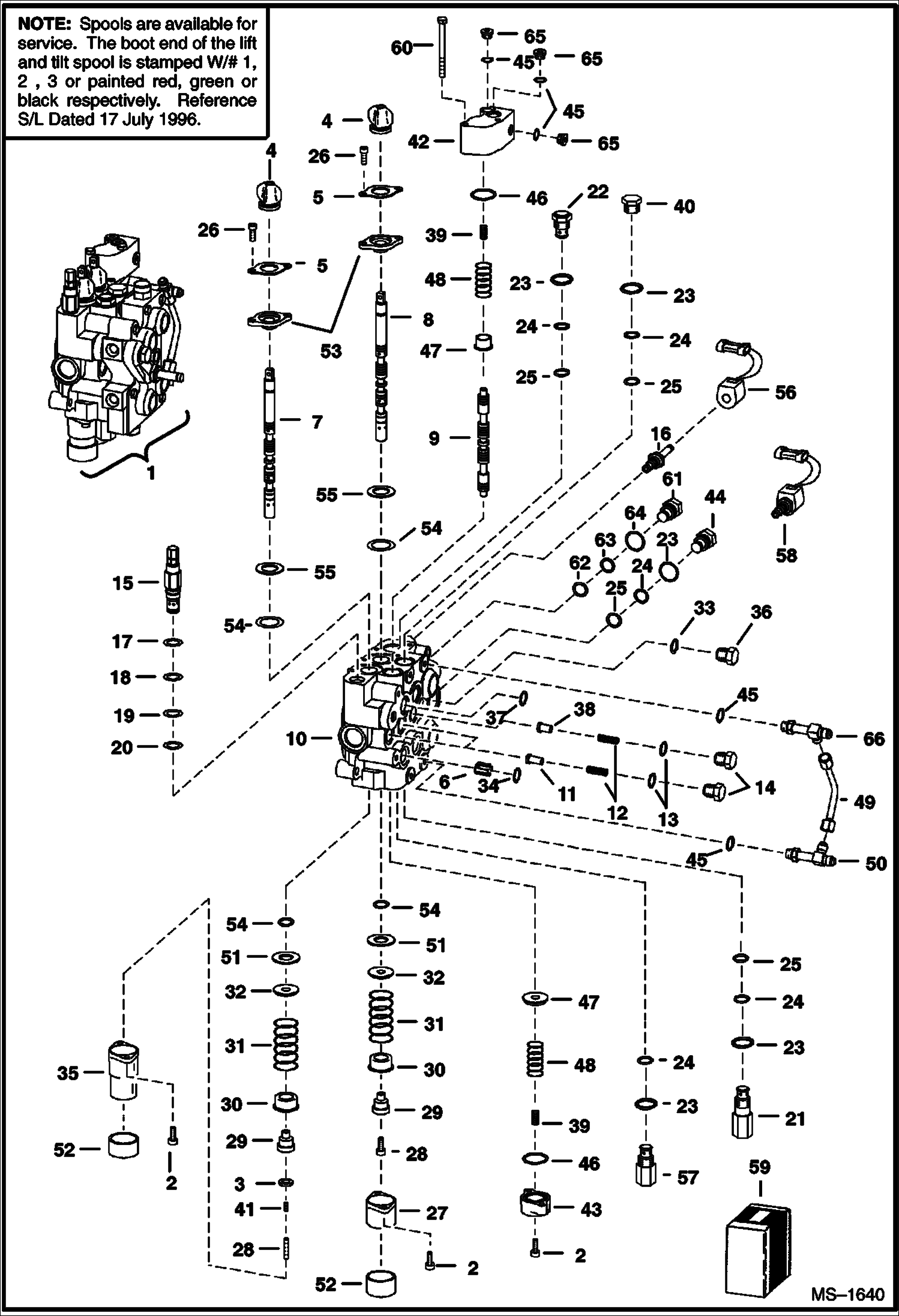

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (High Flow) (For AHC) (5144 28656, 5146 25378 & Above) HYDRAULIC SYSTEM

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

2

29G416

BOLT Was 29G000412B - B

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER flat

6

6800124

ORIFICE .183/.187

7

7222716

SPOOL, LIFT lift - #1 or red - SEE NOTE - Was 6674297 - A

7

7222717

SPOOL, LIFT lift - #2 or green - SEE NOTE - Was 6674298 - A

7

7222718

SPOOL, LIFT lift - #3 or black - SEE NOTE - Was 6674299 - A

8

6674300

SPOOL tilt - #1 or red - SEE NOTE

8

6674301

SPOOL tilt - #2 or green - SEE NOTE

8

6674302

SPOOL tilt - #3 or black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - main relief - W/Ref. 17-20 - 2800-2900 PSI (19305-19995 kpa) - Pressure preset at factory - Was 6676198 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6676249

STEM, VALVE SOLENOID Was 6666616 - B

16

6679961

NUT coil

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6599161

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25

22

6667549

VALVE anti-cavity check - W/Ref. 23-25

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING back-up washer NOT required

26

29G416

BOLT

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

28

30G416

BOLT

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

95K12

O-RING

34

55K212

O RING 10

35

6803092

BONNET

36

90K8

PLUG W/Ref. 33 - Was 90KV00008B - A

37

55K204

O RING 10

38

6596569

SEAT

39

6595131

SPRING

40

6678574

RELIEF VALVE Port relief - 3400-3600 PSI - W/Ref. 23-25 - Was 6673184 - A

41

6801167

PLUG plastic - 0.69'' long

42

6800790

END CAP

43

6588781

END CAP

44

6592720

PLUG W/Ref. 23-25

45

99K6

O RING for tapered boss face

46

58K124

O RING 10

47

7108780

SLEEVE Was 6595951 - A

48

6596332

SPRING

49

6577690

TUBE

50

6805243

TEE W/Ref. 45 - tapered boss face

50

97K6

O RING flared end

51

6595663

BUSHING

52

6662848

CAP

53

6589565

BUSHING seal

54

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

55

1K127

O-RING 10 Was 93K127 - A

56

6717706

COIL, 10 VOLT pwm - 10 volt - Was 6666547 - A

56

6676566

NUT

57

6678552

VALVE port relief & anti-cav. - W/Ref. 23 & 24 - 3500 PSI - use in tilt cylinder base end port - Was 6671632 - A

58

6653395

VALVE, SOLENOID solenoid - Ref. 16 & 56

58

6586459

SEAL KIT

59

6816250

KIT, SEAL Ref. 2-4, 54 & 55 - for one spool - Was 6803605 - A

59

6661328

SEAL KIT main relief - Ref. 17-20

59

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

59

6816715

KIT, SEAL See BTI374 - Ref. 2-4, 13, 17-20, 23-26, 45, 46, 54, 55 & 64 - Was 6596311 - A

60

29G436

BOLT

61

6805137

PLUG W/Ref. 62-64

62

58K11

O RING 10

63

58K012

O-RING 10

64

79K7

O RING 10

65

90K5

PLUG W/Ref. 45 - Was 90KV00005B - B

66

6817553

CROSS Was 6805241 - A
