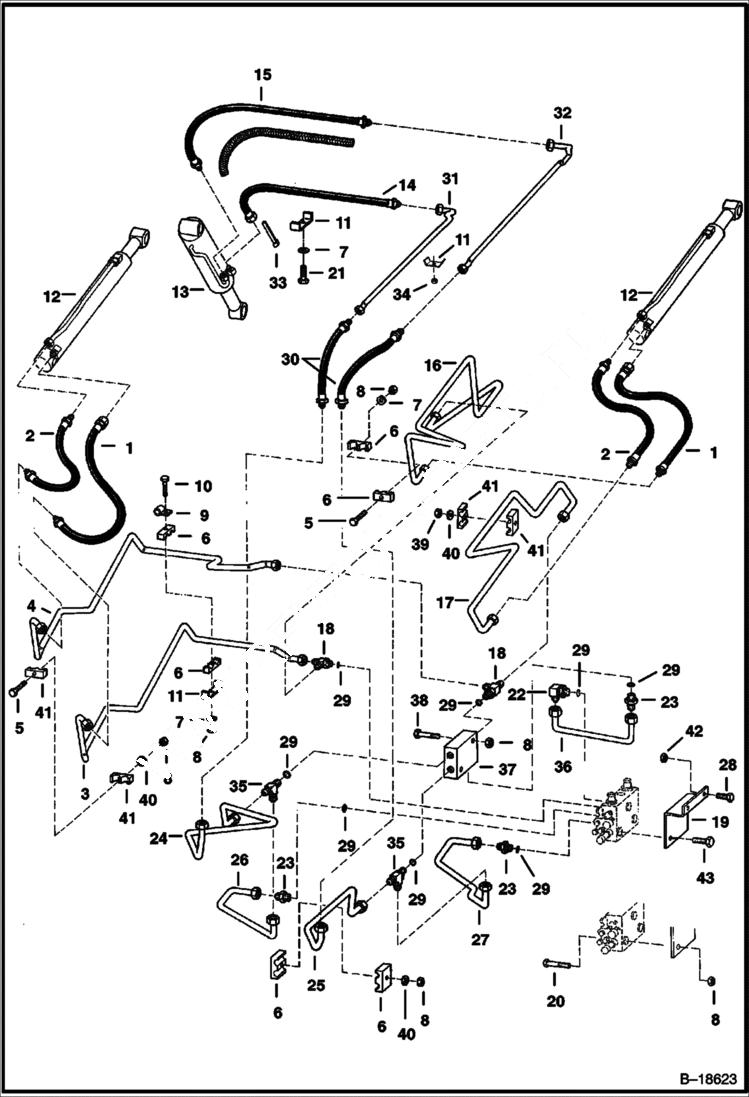

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (S/N 5144 28655, 5145 25336, 5146 25377 & Below) HYDRAULIC SYSTEM

1

6669460

HOSE Was 6707234 - B

2

6669461

HOSE Was 6707235 - B

3

6710793

TUBE

4

6710792

TUBE

5

10C528

BOLT

6

6701893

CLAMP

7

25E16

WSHR Was 872229 - B

8

85D5

NUT 5

8

85D5

NUT 5

9

30H46

CLIP

10

17C532

BOLT 5 Was 17C000544B - B

11

6502203

CLAMP

12

CYLINDER See Illustration LIFT CYLINDER/ TS1330 LIFT

13

CYLINDER See Illustration TILT CYLINDER/ TS1098 TILT

14

6578773

HOSE

15

6578774

HOSE

16

6710795

TUBE

17

6710794

TUBE

18

6578183

TEE flat boss face - Was 6710733 - D

18

TEE NLA - tapered boss face - Was 6715187 - A

18

21KB0810

FITTING, HYD TEE flat boss face

18

97K8

O-RING flared end

19

6710301

BRACKET

20

17C528

BOLT

20

17C528

BOLT

21

84G3728

BOLT

22

17K7

ELBOW W/Ref. 29

22

17KB1010

FITTING, HYD ELBOW W/Ref. 29 - tapered boss face - Was 17KV00007B - A

22

97K10

O-RING 10 flared end

23

15K7

FITTING W/Ref. 29 - flat boss face

23

15KB1010

FITTING, HYD CONNECTOR W/Ref. 29 - tapered boss face - Was 15KV00007B - A

23

97K10

O-RING 10 flared end

24

6710800

TUBE

25

6710801

TUBE

26

6710802

TUBE

27

6710803

TUBE

28

17C616

BOLT 5

29

79K10

O RING 10 flat boss face

29

99K10

O'RING tapered boss face

30

6669674

HOSE Was 6669462 - A

31

6710193

TUBE

32

6710194

TUBE

33

STA-STRAP

34

59D6

NUT

35

21K7

TEE W/Ref. 29 - flat boss face

35

21KB1010

FITTING, HYD TEE W/Ref. 29 - tapered boss face - Was 21KN00007B - A

35

97K10

O-RING 10 flared end

36

6710798

TUBELINE

36

6717656

TUBELINE

37

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA- Order 6673959 valve-if you don't have an on/off switch also order 6647784 plug, 79K8 o-ring, 6647785 spring, & 6647783 load check- Was 6666

38

17C540

BOLT

39

17C544

BOLT

40

872229

WASHER

41

6701892

CLAMP

42

85D6

NUT, 5

43

6717378

BOLT
