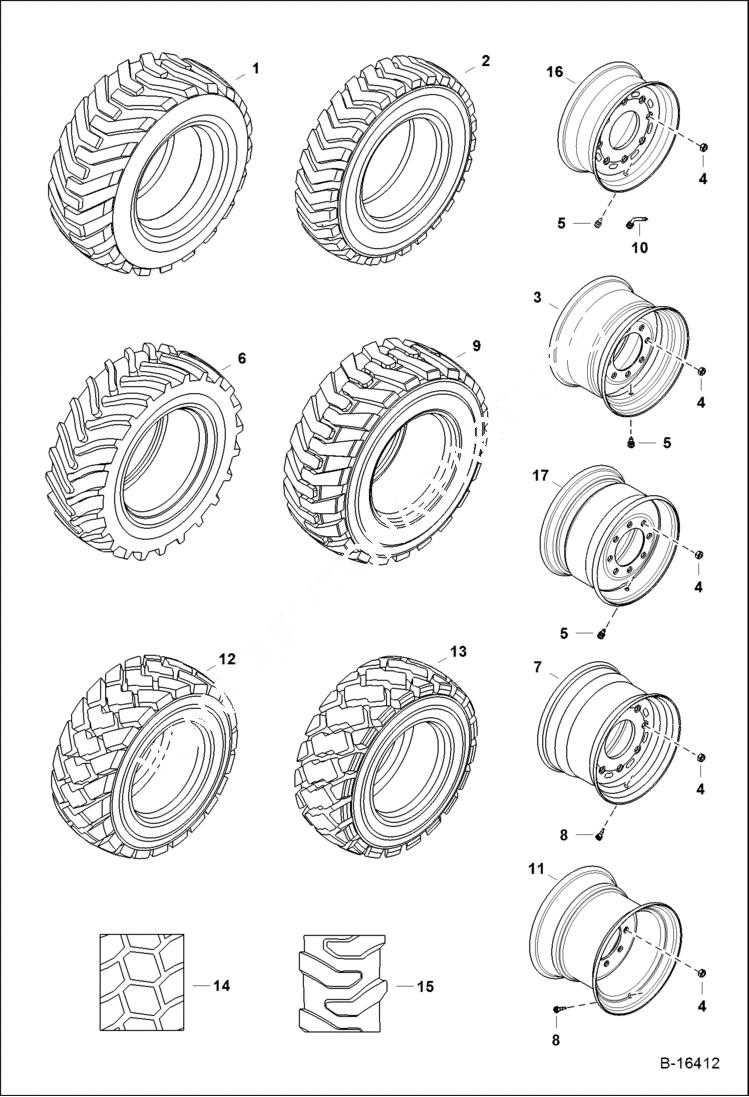

Запчасти Bobcat 800s TIRES & RIMS (Pneumatic Tire) ACCESSORIES & OPTIONS

1

TIRE NLA - 12 x 16.5 6 Ply - factory option - Goodyear - Order Ref. 9 (6729897 tire) - Was 6519249 - A

1

TIRE NLA - 12 x 16.5 8 Ply - factory option - Firestone - Order Ref. 9 (6729897 tire) - Was 6670145 - A

1

TIRE NLA - 12 x 16.5 8 Ply - factory option - Goodyear - Order Ref. 9 (6729897 tire) - Was 6590832 - A

1

TIRE NLA - 12 x 16.5 8 Ply - factory option - Trac 2 - Dico - Order Ref. 9 (6729897 tire) - Was 6662754 - A

2

TIRE NLA - 8.25 x 15 6 Ply IDT - factory option - Dico - Was 6665725 - A

3

7232567

WHEEL, RIM 16.5X9.75 See BTI197ldr - Use W/Ref. 1, 9 & 13 - Was 6565240 - Use W/Ref. 1, 9 & 13 - Was 6730772 - A

3

6561095

WHEEL, RIM 15X13 See BTI197ldr - Use W/Ref. 1

4

6564669

NUT, 10

5

1614765

VALVE STEM, TIRE Use on 6565240 & 6728991 rims

6

TIRE NLA - 31 x 15.5 8 Ply Terra Grip -factory option - purchase locally - Was 6513971 - A

6

TIRE NLA - 31 x 15.5 8 Ply Terra Grip - factory option - Dico - purchase locally - Was 6667892 - A

6

TIRE NLA - 31 x 15.5 8 Ply Ultra Grip - factory option - Goodyear - purchase locally - Was 6666668 - A

7

6658846

WHEEL, RIM 15X13 Use W/Ref. 6

8

6591447

VALVE STEM, TIRE Use W/Ref. 7

9

TIRE NLA - 12 x 16.5 10 Ply - factory option - Bobcat - Order 6729897 or 6729901 - Was 6661601 - A

9

6729897

TIRE, STANDARD 33X12X16.5, 10 PLY factory option - Bobcat

9

6729901

TIRE, HEAVY DUTY 33X12X16.5, 12 PLY factory option - Bobcat

9

6730109

TIRE, SUPER FLOAT 33X15.5X16.5, 12 PLY factory option - Galaxy

10

6669244

VALVE STEM, TIRE Use W/Ref. 3 (NLA/ 6669060 wheel, rim)

11

6728991

WHEEL, RIM 15.5X16.5 See BTI197ldr - Use W/Ref. 12

12

6677674

TIRE, BULKY HULK 33X15.5X16.5, 14PLY factory option - Galaxy - Was 6730110 - A

13

6730108

TIRE, SEVERE DUTY 33X12X16.5, 12 PLY factory option - Bobcat

14

6988144

TIRE, NON-DIRECTIONAL 12X16.5-14 PLY EF

15

6988501

TIRE, EARTHFORCE 12X16.5 - 10 PLY

15

7219732

TIRE, HEAVY DUTY 33X12X16.5, 10 PLY

16

6562498

WHEEL, RIM 15X6 See BTI197ldr - Use W/Ref. 2

17

WHEEL, RIM 16.5 X 9.75 NLA - Use W/Ref. 9 & 10 - for 67'' wide - inverted - Was 6669060 - A

17

6730776

WHEEL, RIM 16.5X9.75 See BTI197ldr - Use W/Ref. 9, 10, 14, & 15 - for 67'' wide - inverted - Also Order Ref. 10 - A
