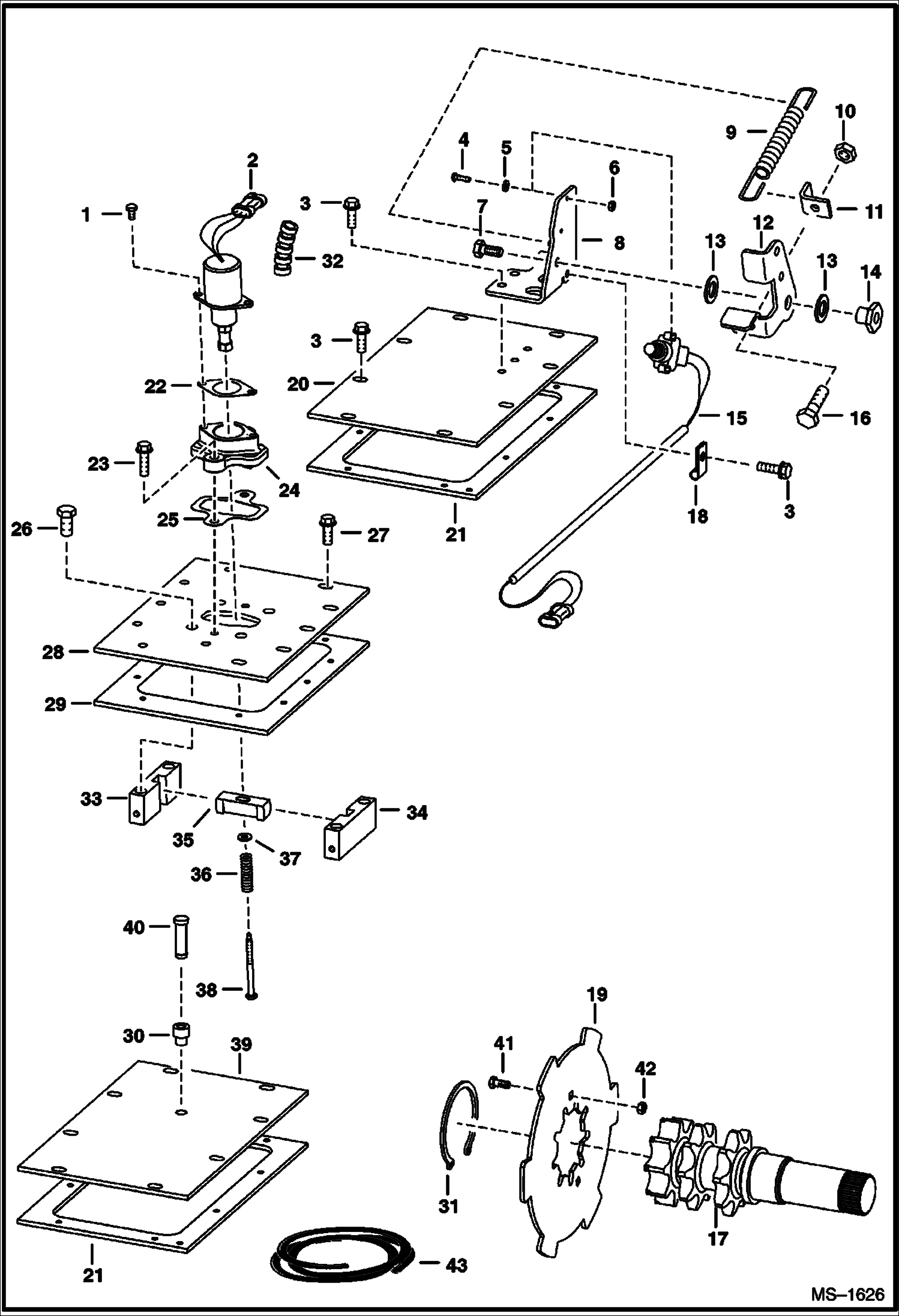

Запчасти Bobcat 800s DISC BRAKE DRIVE TRAIN

1

17C412

BOLT 5

2

6681512

SOLENOID Was 6667992 - A

3

84G3712

BOLT 5

4

23G812

SCREW

5

25E8

WSHR

6

12D8

NUT

7

17C610

BOLT

8

6707313

PEDAL MOUNT

9

6585860

SPRING

10

95D6

NUT Was 91D000006B - A

11

6707315

ANGLE

12

6707314

PEDAL brake

13

6700170

WASHER plastic

14

6559479

NUT

15

6707337

SWITCH, LOCK TRACTION W/ cover and connector

15

6664880

SWITCH

16

17C620

BOLT

17

SHAFT See Illustration MOTOR CARRIER/ TS1227 See Illustration MOTOR CARRIER/ TS1326

18

30H23

CLAMP

19

6710766

BRAKE disc - 4 lobe

19

6715630

BRAKE disc - 6 lobe

20

6578505

COVER

21

6703097

GASKET, TRANS COVER

22

6706737

GASKET

23

84G3720

BOLT

24

6706718

MOUNT

25

6708016

GASKET

26

47C820

BOLT

27

84G3716

SCREW 5

28

6706683

COVER

29

6708070

GASKET, COVER BRAKE

30

6553411

BUSHING

31

6662298

RING, RETAINER

32

CONDUIT NLA - 5'' (127mm) long - Order Ref. 43

33

6719056

BLOCK guide - LH - Was 6705898 - B

34

6719057

BLOCK guide - RH - Was 6705897 - B

35

6705896

GUIDE for 4 lobe disc brake

35

6714278

WEDGE, LOCK TRACTION for 6 lobe disc brake

36

6708018

SPRING

37

25E13

WASHER 5

38

6708267

BOLT

39

6700330

COVER

40

6680970

BREATHER See Illustration MAIN FRAME/ MS1673 Was 6670627 - A

41

37C512

BOLT

42

59D5

NUT 5

43

6584978

CONDUIT bulk - sold per foot
