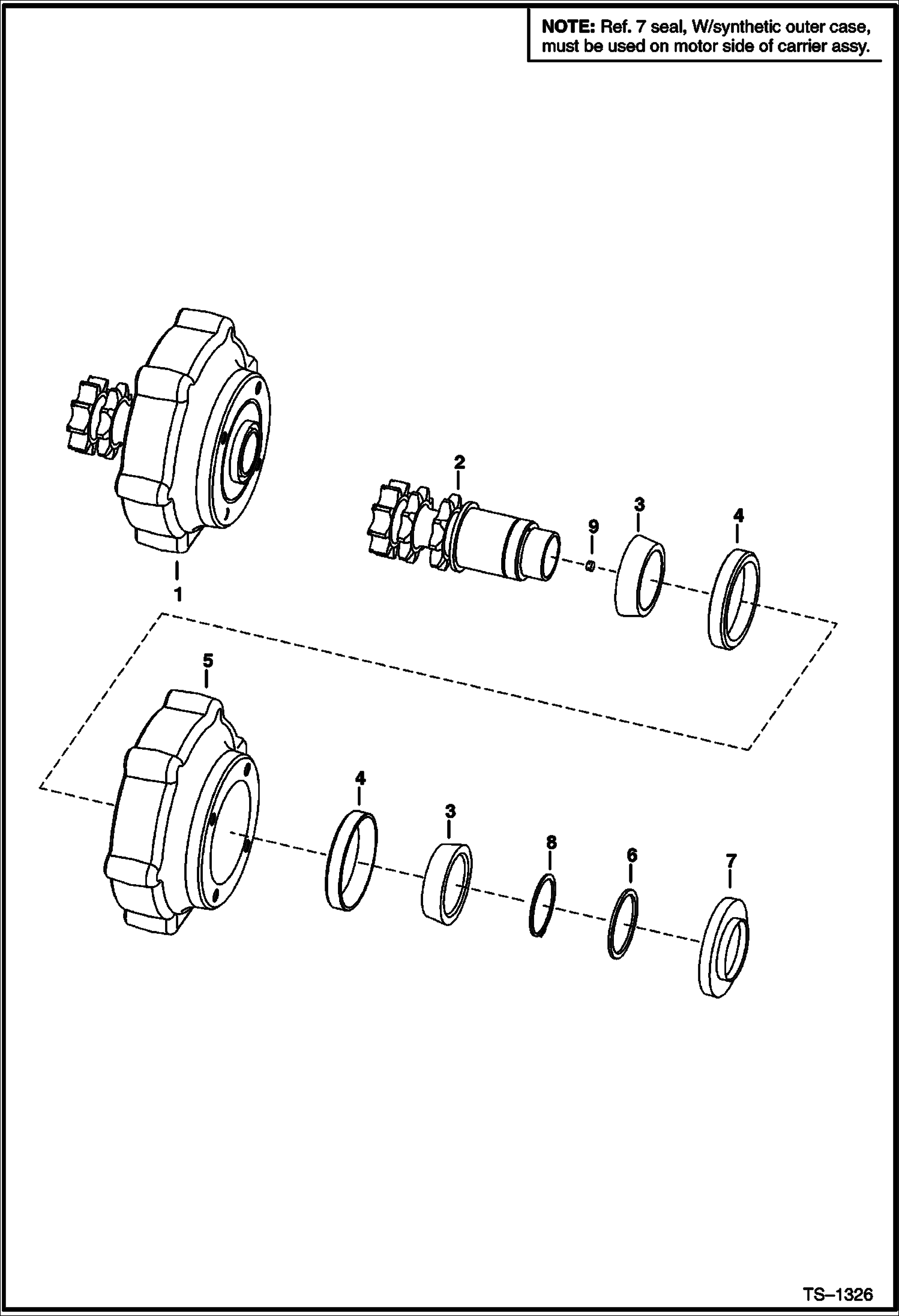

Запчасти Bobcat 800s MOTOR CARRIER (Drive Motor Mount Assy.) (S/N 5144 24999, 5145 24999, 5146 24999 & Below) DRIVE TRAIN

1

6706467

MOUNT ASSY. drive motor - Ref. 2-7

2

6714044

SHAFT, TRANS W/ snap ring groove - Was 6706310 - A

3

6661994

BEARING

4

6661995

CUP

5

6706433

HOUSING

6

6662076

RING .093'' (2,4mm) thick

7

6662304

SEAL SEE NOTE

8

6705462

WASHER .152'' (3,8mm) thick

8

6715426

WASHER .164'' (4,2mm) thick

9

PLUG NSS - Was 16F000006B - A
