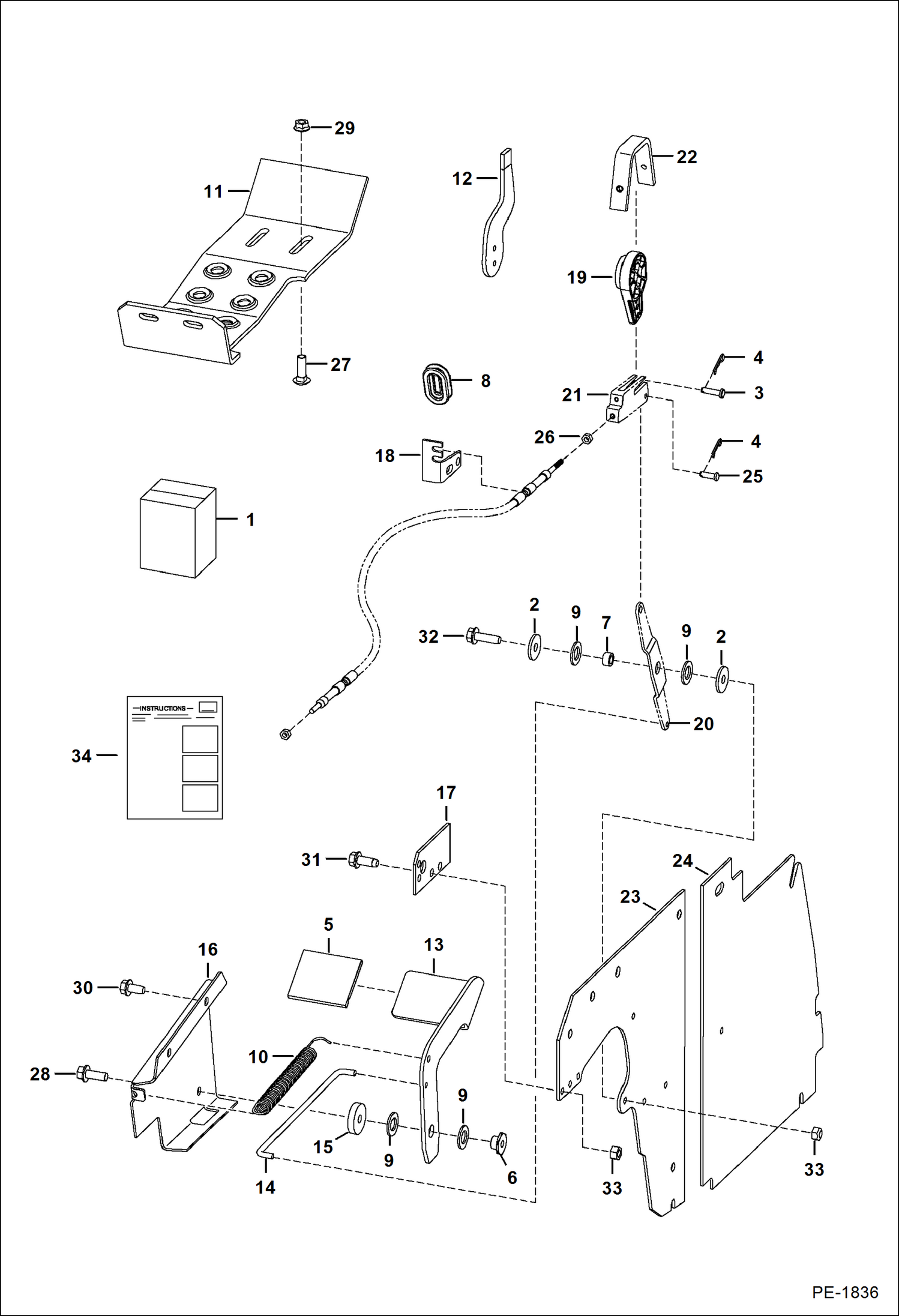

Запчасти Bobcat 800s FOOT THROTTLE KIT ACCESSORIES & OPTIONS

1

6733691

FOOT THROTTLE KIT Ref. 2-34

2

619021

WASHER, 5

3

1304227

PIN

4

6513495

COTTER PIN

5

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

6

6559479

NUT retaining

7

6564343

SPACER

8

6577961

GROMMET

9

6700170

WASHER plastic

10

6700743

SPRING

11

6729237

STEP

12

6730270

LEVER

13

6735680

FOOT PEDAL Was 6731898 - A

14

6731900

ROD

15

6732322

SPACER

16

6732323

BRACKET

17

6732449

PLATE cable

18

6732450

BRACKET

19

6734416

LEVER

20

6734417

LEVER Was 6729063 - B

21

6734503

CLEVIS Was 6731901 - A

22

6576261

COVER Was 6734520 - A

23

6734521

PANEL

24

6734602

PANEL

25

2F4051

PIN

26

8D4

NUT

27

37C620

BOLT carriage

28

45C616

BOLT

29

57D6

NUT 5

30

84G3712

BOLT 5

31

84G3716

SCREW 5

32

84G3720

BOLT

33

95D6

NUT

34

6901964

INSTRUCTIONS
