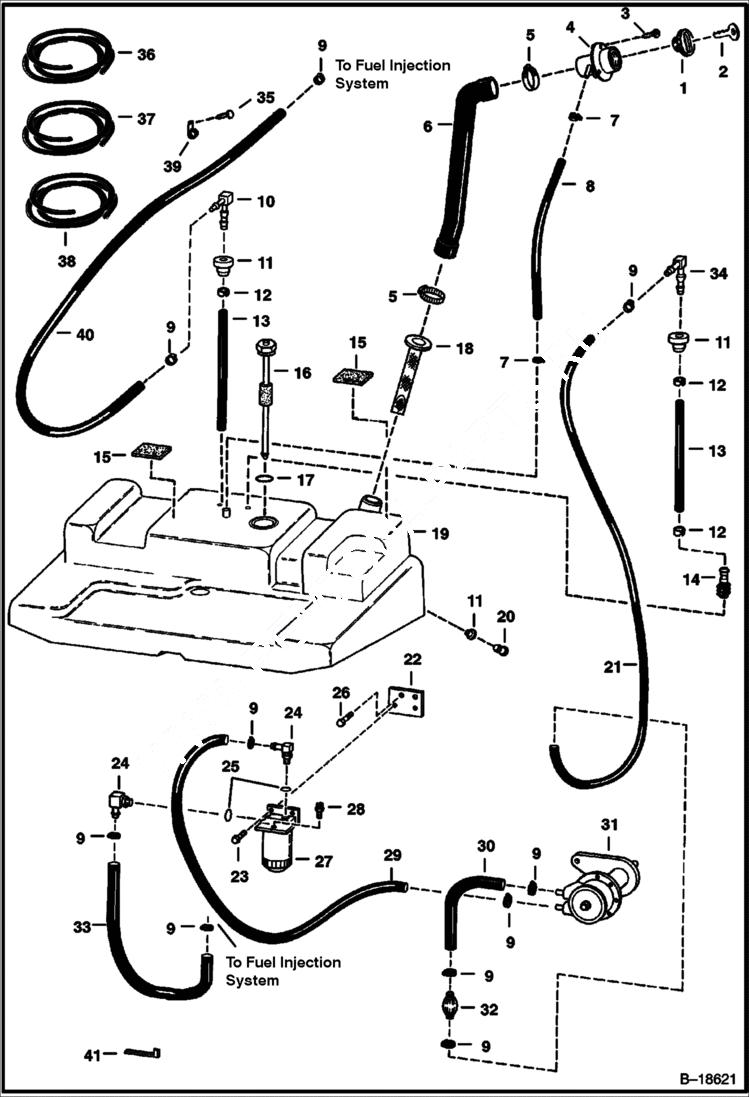

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

6661114

CAP. DIESEL green fuel fill - W/Ref. 2

1

6661696

CAP, FUEL LOCKING locking - W/Ref. 2 - Code PK510

2

6587458

KEY Code PK510

3

6706517

SCREW

4

6701449

FILLER TUBE

5

42H24

CLAMP-5

6

6728141

HOSE Was 6710277 - A

7

42H10

HOSECLAM5

8

HOSE NLA - 38'' (965mm) long - Order Ref. 36

9

42HS04

CLAMP, HOSE Was 6515575 - B

10

6598908

ELBOW Was 6681462 - A

11

6553411

BUSHING 0.38'' ID

11

6717402

BUSHING 0.54'' ID

12

6661213

RING, COMPRESSION

13

6569752

HOSE BULK/FT 13'' (330,2 mm) - Was 6579554 - A

14

6650239

SCREEN, FUEL PICKUP

15

6578278

PAD self adhesive one side

16

SENSOR See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2260 See Illustration ENGINE ELECTRICAL CIRCUITRY/ E2261 fuel - Was 6658958 - B

17

79K14

O RING 10 Was 79K000020B - B

17

6717579

GASKET rubber

18

7120881

SCREEN, FILLER Was 6569219 - A

19

6708527

TANK, FUEL

20

6599645

PLUG, STEEL .50'' (13mm) shoulder

20

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

21

HOSE NLA - 30'' (762mm) long - Order Ref. 37

22

6710488

MOUNT

23

53CM830

BOLT

24

ELBOW NLA - W/Ref. 25 - flat boss face - Was 6657083 - A

24

6715183

ELBOW W/Ref. 25 - Check boss face to determine correct replacement o-ring

25

79K5

O RING 10 flat boss face

25

99K5

O-RING tapered boss face

26

43C512

BOLT Was 17C000512B - B

27

6667353

FILTER ASSY W/Ref. 28

27

6667352

FILTER, FUEL W/SEPARATOR 12

27

72F1

FITTING

28

6658180

PLUG, BLEED

29

HOSE NLA - 14'' (356mm) long - Order Ref. 37

30

HOSE NLA - 9.5'' (241mm) long - Order Ref. 37

31

6666522

FUEL PUMP See Illustration FUEL INJECTION SYSTEM/ B14312

32

6667170

PUMP 193 mm (7.6'') long

33

HOSE NLA - 21.5'' (546mm) long - Order Ref. 37

34

7126672

ELBOW barbed - Was 6666302 - A

35

1CM816

BOLT

36

6578172

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot - .3125'' ID

38

6577821

HOSE bulk - sold per foot - .25'' ID

39

30H30

CLAMP

40

HOSE NLA - fuel return - 29.5'' (749mm) long - Order Ref. 38

41

6610510

TIE
