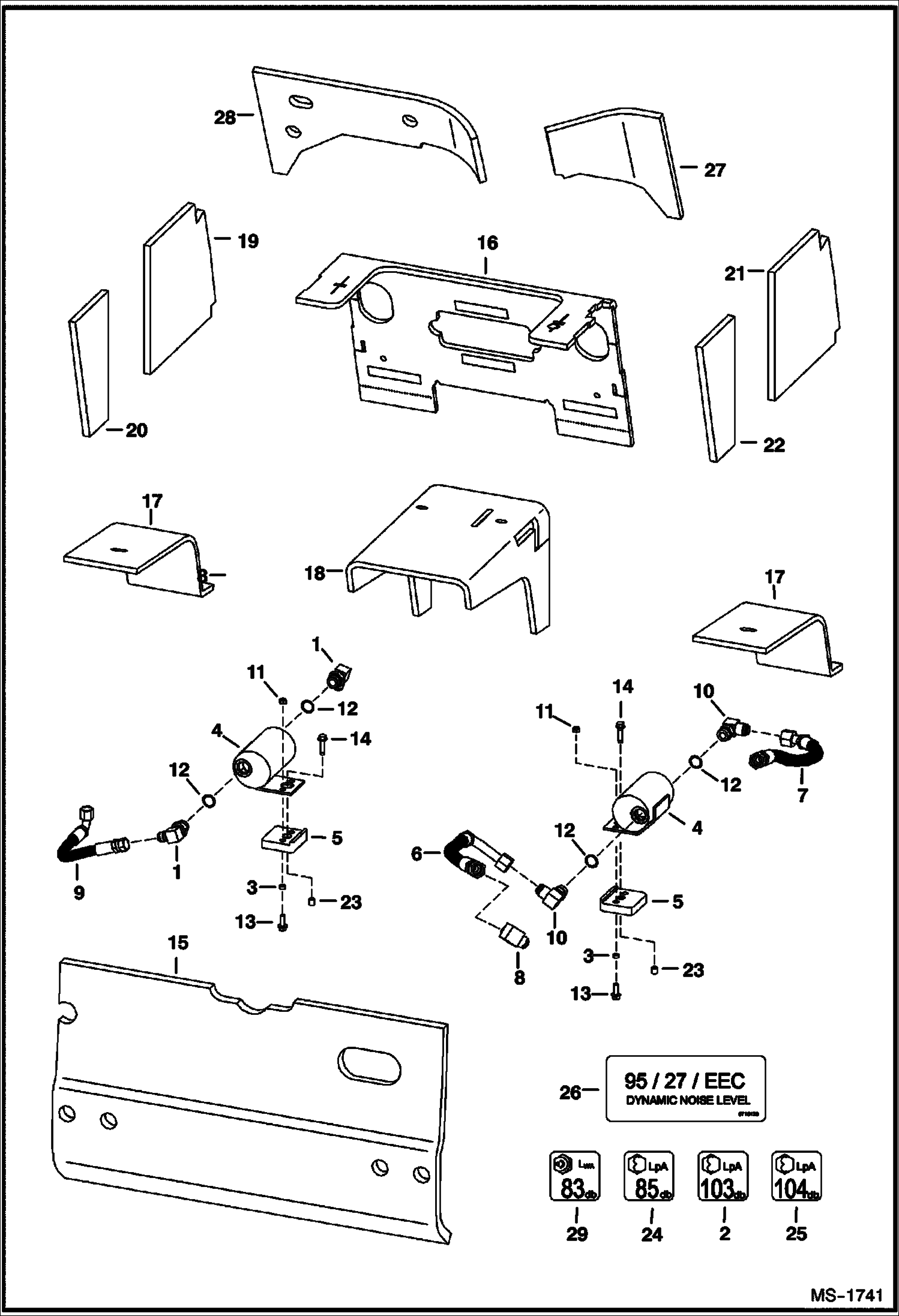

Запчасти Bobcat 800s EUROPEAN ACCESSORIES (Insulation & Hydraulic Muffler) ACCESSORIES & OPTIONS

1

6715651

ELBOW W/Ref. 12 - high flow

1

97K10

O-RING 10 flared end

2

6579403

DECAL noise level - Europe

3

6562619

BUSHING throttle - standard flow

3

6562619

BUSHING throttle - high flow

4

6659982

MUFFLER standard flow

4

6659982

MUFFLER high flow

5

6705333

MOUNT standard flow

5

6705333

MOUNT high flow

6

6719480

HOSE Was 6718073 - A

7

6719481

HOSE Was 6718072 - A

8

77F8

ELBOW W/Ref. 12 - tapered boss face - Was 77FN00008B - A

8

97K12

O'RING flared end

9

6719482

HOSE high flow - Was 6715436 - A

10

17KB1212

FITTING, HYD ELBOW W/Ref. 12 - tapered boss face - Was 17KV00008B - A

10

97K12

O'RING flared end

11

85D6

NUT, 5 standard flow

11

85D6

NUT, 5 high flow

12

99K12

O RING tapered boss face

13

35C616

BOLT 5 standard flow

13

35C616

BOLT 5 high flow

14

84G3724

BOLT standard flow

14

84G3724

BOLT high flow

15

6715106

INSULATION rear door

16

6715195

INSULATION steering

17

6715389

INSULATION pedal

18

6715390

INSULATION trans

19

6731534

INSULATION panel - Was 6715391 - A

20

6715393

INSULATION panel

21

6731535

INSULATION panel - Was 6715434 - A

22

6715435

INSULATION panel

23

6715744

BUSHING standard flow

23

6715744

BUSHING high flow

24

6579385

DECAL noise level - Europe

25

6731994

DECAL, DECIBEL noise level - 104db

26

6715428

DECAL dynamic noise level - Europe

27

6719333

INSULATION blower housing

28

6719332

INSULATION blower housing

29

6579399

DECAL Noise Level - 83 DB
