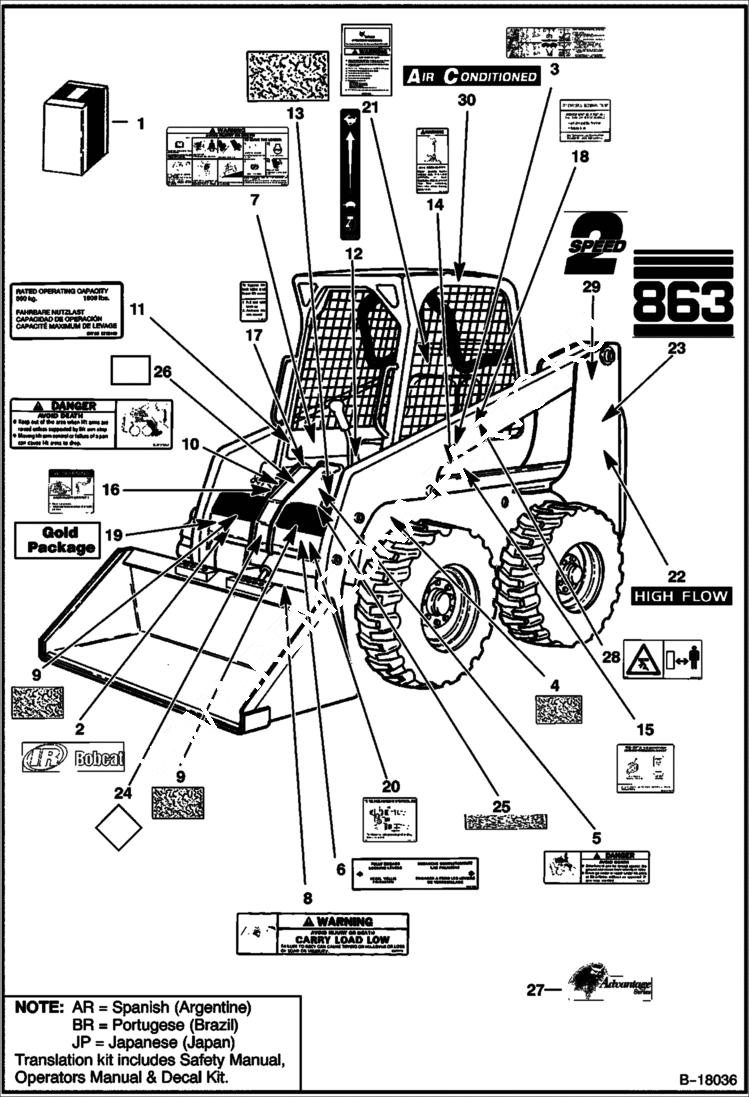

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6901376

KIT decal - Was 6725033 - D

1

6725187AR

KIT translation - SEE NOTE

1

6725187BR

KIT translation - SEE NOTE

1

6725033AR

KIT decal - SEE NOTE

1

6725033BR

KIT decal - SEE NOTE

1

6725033JP

KIT decal - SEE NOTE

2

DECAL NLA - Ingersoll Rand - not in kit - Was 6727310 - A

3

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6728327 - A

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6702301

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728539

DECAL Was 6718698 - A

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6702302

DECAL, DANGER

11

7184775

DECAL, CAPACITY LIFT Was 6710449 - A

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8'' x 8.75'' - (173mm x 222mm)

14

6705720

DECAL lock shield

15

6713715

DECAL pre heat

16

6710358

DECAL warning

17

6711840

DECAL lift lock

18

DECAL NLA - seat & seat bar operating - Order Ref. 3 - Was 6718703 - A

19

6735862

DECAL Gold Package

20

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

21

6718719

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6737783 - A

21

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

21

6558310

SLEEVE wire rope

21

84G3112

BOLT 5

22

6727913

DECAL high flow - not in kit - Was 6714534 - A

23

DECAL NLA - Model No. 863 - W/O Turbo - Order 6731474 - Was 6714536

23

6731474

DECAL Model No. 863 - W/Turbo

24

6718275

DECAL Bobcat advantage

25

6710746

SAFETY TREAD 1.5'' x 15'' (38mm x 381mm)

26

6717343

DECAL, DANGER

27

6718271

DECAL advantage series - L.H. - not in kit

28

6713507

DECAL stay clear - Europe only

29

6729078

DECAL 2 speed - not in kit

30

6729077

DECAL air conditioned - not in kit
