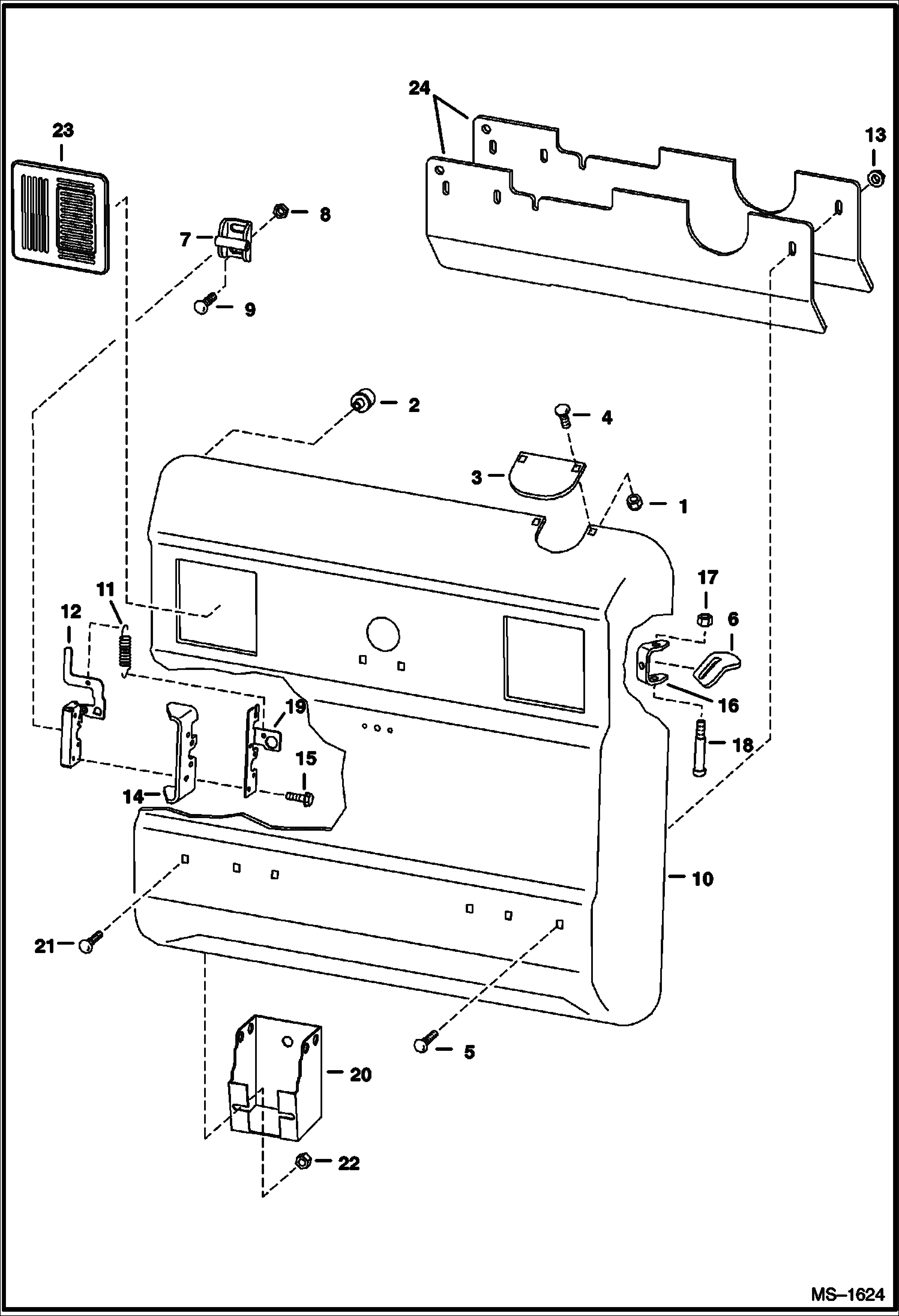

Запчасти Bobcat 800s REAR DOOR (One Piece) (S/N 5144 15610 & 5145 11107 & 5146 11153 & Above) MAIN FRAME

1

61D5

NUT Was 85D000005B - B

2

BUMPER NLA - Order 6655399 - also order 61D000005B (2) nut - Was 6714454 - A

2

6655399

BUMPER

3

6714509

COVER exhaust

4

37C512

BOLT

5

37C628

BOLT

6

6714126

DOOR STOP

7

6715157

STRIKER ASSY. Was 6579969 - A

8

83D8

NUT 5 Was 57D000008B - B,D

9

37C820

BOLT carriage

10

REAR DOOR See BTI357 NLA - Was 6711524 - A

11

6714210

SPRING

12

6670867

LATCH, REAR DOOR

13

57D6

NUT 5

14

6711527

LATCH PLATE weld-on - Was 6700279 - B

15

31C420

BOLT 5

16

6733575

HINGE, REAR DOOR weld-on - Was 6711526 - A

17

59D6

NUT

18

38C856

BOLT

19

6711664

GUIDE, LATCH latch

20

6715318

TOOL HOLDER Was 6714064 - A

21

37C612

BOLT

22

55D6

NUT

23

6670287

COVER

24

6725256

COUNTERWEIGHT Was 6714053 - A
