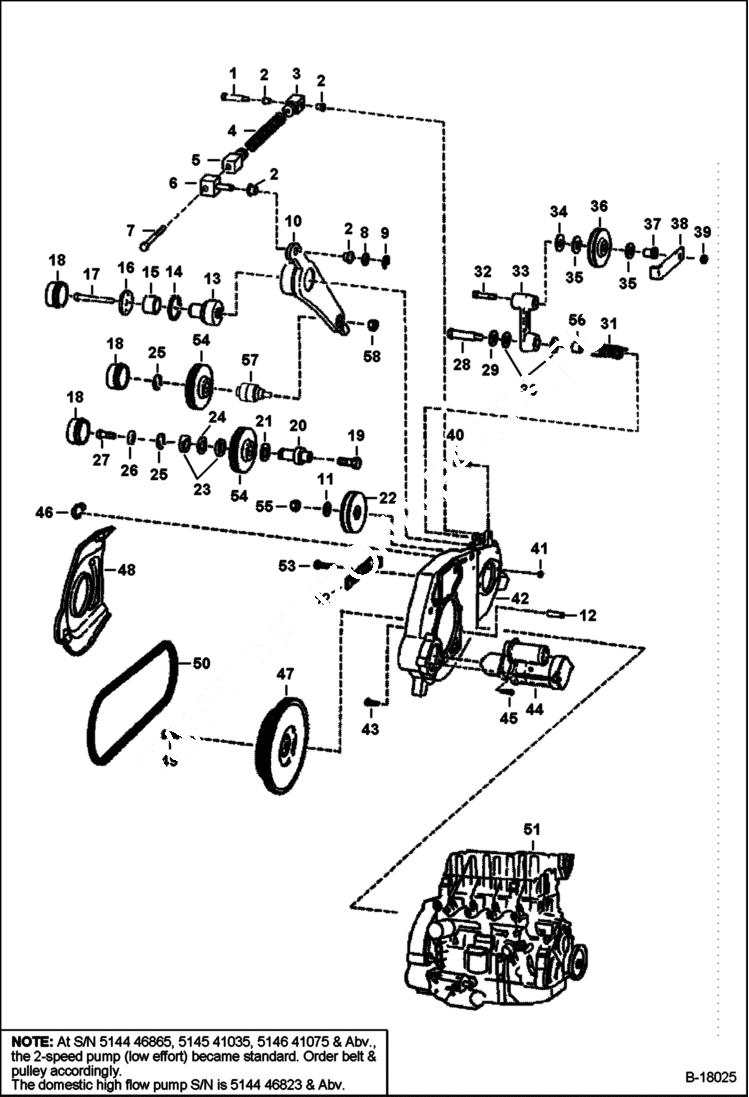

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

38C828

BOLT shoulder

2

1313116

BUSHING

3

6568424

ADAPTER

4

6569498

SPRING ASSY

5

6568425

ADAPTER

6

6587182

SWIVEL PIN

7

6586710

BOLT

8

25E21

WASHER 5

9

6518955

SNAP RING

10

6735709

IDLER Was 6707607 - A

11

6576033

WASHER

12

4JM1216

ROLL PIN

13

6707699

PIVOT

14

6661377

SEAL

15

6587765

BUSHING, PRESS FIT

16

6707698

WASHER

17

17C872

BOLT

18

6660967

CAP grease

19

BOLT NSS - Order Ref. 57 & 58 - Was 17C816 - B

20

SPINDLE NSS - Order Ref. 57 & 58 - Was 6707654 - B

21

SEAL NSS - Order Ref. 57 & 58 - Was 6665307 - B

22

6713342

PULLEY pump - 8 in. (203,2 mm) OD - Was 6713287 - B

22

6713287

PULLEY pump - 2 Speed 8.5 in. (OD)

23

BEARING NSS - Order Ref. 57 & 58 - Was 6661229 - B

24

SHIM NSS - Order Ref. 57 & 58 - Was 6701159 - B

25

6665308

SNAP RING

26

WASHER NSS - Order Ref. 57 & 58 - Was 6707697 - B

27

BOLT 5 NSS - Order Ref. 57 & 58 - Was 17C612 - B

28

38C820

SCREW

29

6655781

BEARING thrust

30

6704820

O-RING

31

6700115

SPRING, TORSION

32

73G656

SCREW

33

6725212

ARM W/Ref. 56 - Was 6707637 - A

34

6704444

WASHER

35

6660995

GREASE RING

36

6662997

PULLEY, FAN DRIVE IDLER cooling fan idler

37

6704443

BUSHING

38

6702474

RETAINER

39

61D6

NUT 5

40

17C832

BOLT hydrostatic pump mounting

41

85D8

NUT, 5 hydrostatic pump mounting

42

6715380

MOUNT, ENG See Illustration ENGINE & ATTACHING PARTS/ E2281 - W/ four hole starter mount

42

6732494

MOUNT See Illustration ENGINE & ATTACHING PARTS/ E2281 - W/ three hole starter mount

43

53CM1230

BOLT

44

STARTER See Illustration STARTER/ D2365

45

45C620

BOLT Was 35C-620 - B

46

6701160

CLIP

47

6707642

FLYWHEEL ASSY W/ ring gear

47

6665222

GEAR, RING STARTER

48

6709921

SHIELD

49

6666452

BOLT

50

6670690

BELT, DRIVE pump drive

50

6662855

BELT, DRIVE pump drive - 2 speed

51

ENGINE See Illustration ENGINE & GASKET KITS/ B16399

52

6707714

STOP

53

35C612

BOLT

54

6708445

PULLEY drive idler

55

92D12

NUT

56

6670682

BEARING nylon

57

6691330

BEARING idler

58

95D8

NUT
