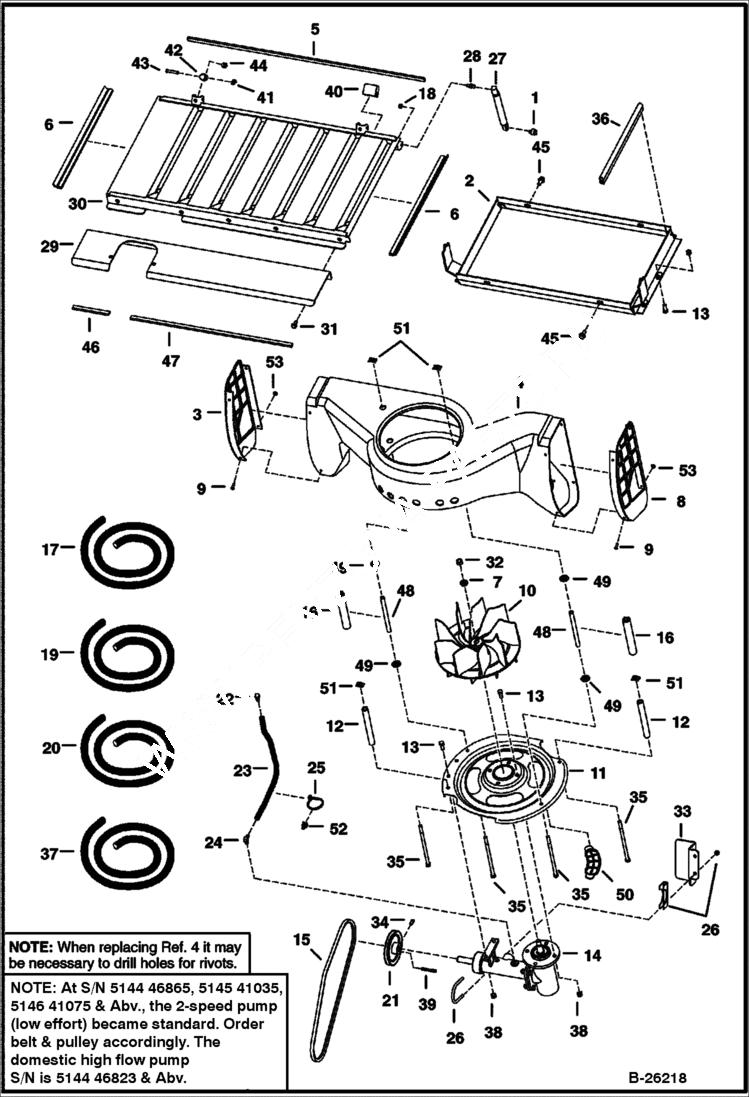

Запчасти Bobcat 800s COOLING SYSTEM POWER UNIT

1

6705052

BALL STUD weld-on

2

6718757

HOUSING plenum - Was 6711630 - B

3

6716574

LOUVER, PLASTIC LH L.H. - plastic - Was 6716571 - B

4

6718562

HOUSING When replacing, it may be necessary to drill holes for rivots. - Was 6717635 - B

5

MOULDING NLA - 34.5'' (876 mm) long - Order Ref. 19

6

MOULDING NLA - 19'' (483 mm) long - Order Ref. 17

7

6701097

WASHER Was 6803867 - A

8

6716572

LOUVER, PLASTIC RH RH - plastic

9

6706517

SCREW

10

6715142

FAN

11

7107175

INLET 4-slot - Was 6717478 - A

12

6577382

SPACER

13

17C616

BOLT 5

14

6734105

HOUSING ASSY See Illustration COOLING FAN DRIVE ASSY./ TS1002 - Was 6707519 - A

15

6713382

BELT, FAN 44.75'' (1137mm) long

15

6707648

BELT See Illustration HYDROSTATIC CIRCUITRY/ PE1070 two speed - 43.75''(1111mm) long

15

6676345

BELT See Illustration HYDROSTATIC CIRCUITRY/ PE1070 - standard & two speed - 44.5'' (1130mm) long

15

6732453

BELT 45.875 in. (1165 mm) Long

16

SPACER NLA - Order Ref. 48 & (2) of Ref. 49 - Was 6704907 - A

17

6646705

SEAL bulk - sold per foot

18

61D5

NUT

19

6511855

SEAL self adhesive - bulk - sold per foot

20

6577822

HOSE bulk - sold per foot

21

6712970

PULLEY 4.75'' (120,7 mm) OD

21

6725130

PULLEY See Illustration HYDROSTATIC CIRCUITRY/ PE1070 - 4'' (101,6MM) OD - two speed

21

6703483

PULLEY, FAN DRIVE IDLER 5.25'' (133,4 mm) OD

21

6712971

PULLEY See Illustration HYDROSTATIC CIRCUITRY/ PE1070 - 05'' (127mm) OD - two speed

21

6579541

PULLEY 5.75'' (146 mm) OD

22

6680970

BREATHER Was 6670627 - A

23

HOSE NLA - 16.5'' (419,1 mm) - 19.5'' (495 mm) long - Order Ref. 20

24

6657376

ELBOW

25

6624289

STRAP, TIE Was 6610510 - B

26

6626631

CLAMP

27

6674285

GAS SPRING Was 6673758 - B

28

6649244

BALL STUD

29

6717731

SHIELD

30

6717730

GRILL

31

84G3112

BOLT 5

32

96D8

NUT

33

6719429

SHIELD belt - Was 6708886 - B

34

6715143

SET SCREW

35

17C6116

BOLT

36

SEAL NLA - 14.5'' (368 mm) long - Order Ref. 37

37

6513152

SEAL bulk - sold per foot

38

61D6

NUT 5

39

7J2208

KEY

40

6579613

STOP

41

6631418

RING, RETAINING

42

6579326

MOUNT

43

6567743

PIN

44

17C608

BOLT

45

35C612

BOLT

46

SEAL NLA - 5.25'' (133 mm) long - Order Ref. 19

47

SEAL NLA - 23.5'' (597 mm) long - Order Ref. 19

48

6732318

SPACER

49

6732457

WASHER Step

50

SCREEN NLA - inlet - Order (4) of 6684474 Insert - Was 6735204 - A

50

6684474

INSERT FAN INLET

51

6684033

NUT Spring

52

6678666

MOUNT, STRAP TIE push in - Use W/tie strap

53

25E6

WSHR Use W/steel louvers
