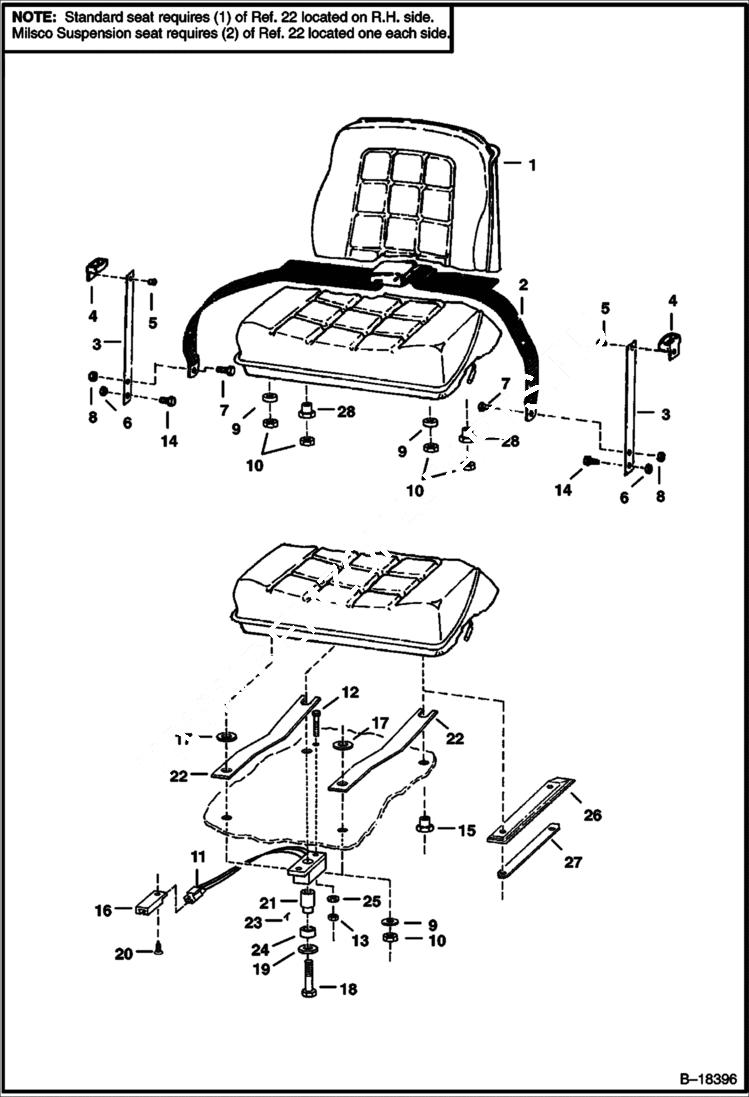

Запчасти Bobcat 800s SEAT MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - W/Spring plates - Order 6675074 seat belt & (2) Ref. 3 6725373 spring plates - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75'' (349,3 mm) long - Use W/NLA 6564774 Seat Belt - Was 6565354 - A

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25'' (311 mm) long - Use W/NLA 6667875 Seat Belt - Order 6711908 Spring Plate, Ref. 4 & Ref. 5 (2) - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 NLA/6725403 seat belt

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

6701174

WASHER

10

61D5

NUT

10

59D5

NUT 5 Was 61D000005B - B

11

6680430

SENSOR Also Order Ref. 23 - Was 6670652 - A

12

35C410

BOLT 5 fastens thru tab of Ref. 11

12

6710539

BOLT fastens thru body of Ref 11

13

83D4

NUT 10 fastens thru tab of Ref. 11

13

50D12

NUT fastens thru body of Ref 11

14

17C612

BOLT 5

15

6707319

NUT spacer

16

6665000

CLIP

17

6706890

WASHER

18

17C508

BOLT

19

25E16

WSHR

20

6664221

RETAINER

21

6710751

BUSHING spacer - Was 6710571 - D

22

6706966

SPRING, SEAT plate - SEE NOTE

23

6680523

KEY,MAGNETIC magnet bushing - Was 6664881 - A

24

6680472

SENSOR tapered - magnetic - Was 6666608 - A

25

25E10

WASHER

26

6711729

COVER

27

6711730

STRIP

28

6571991

GUIDE Was 6707318 - A
