Запчасти Bobcat 800s HYDROSTATIC MOTOR (Rexroth) HYDROSTATIC SYSTEM

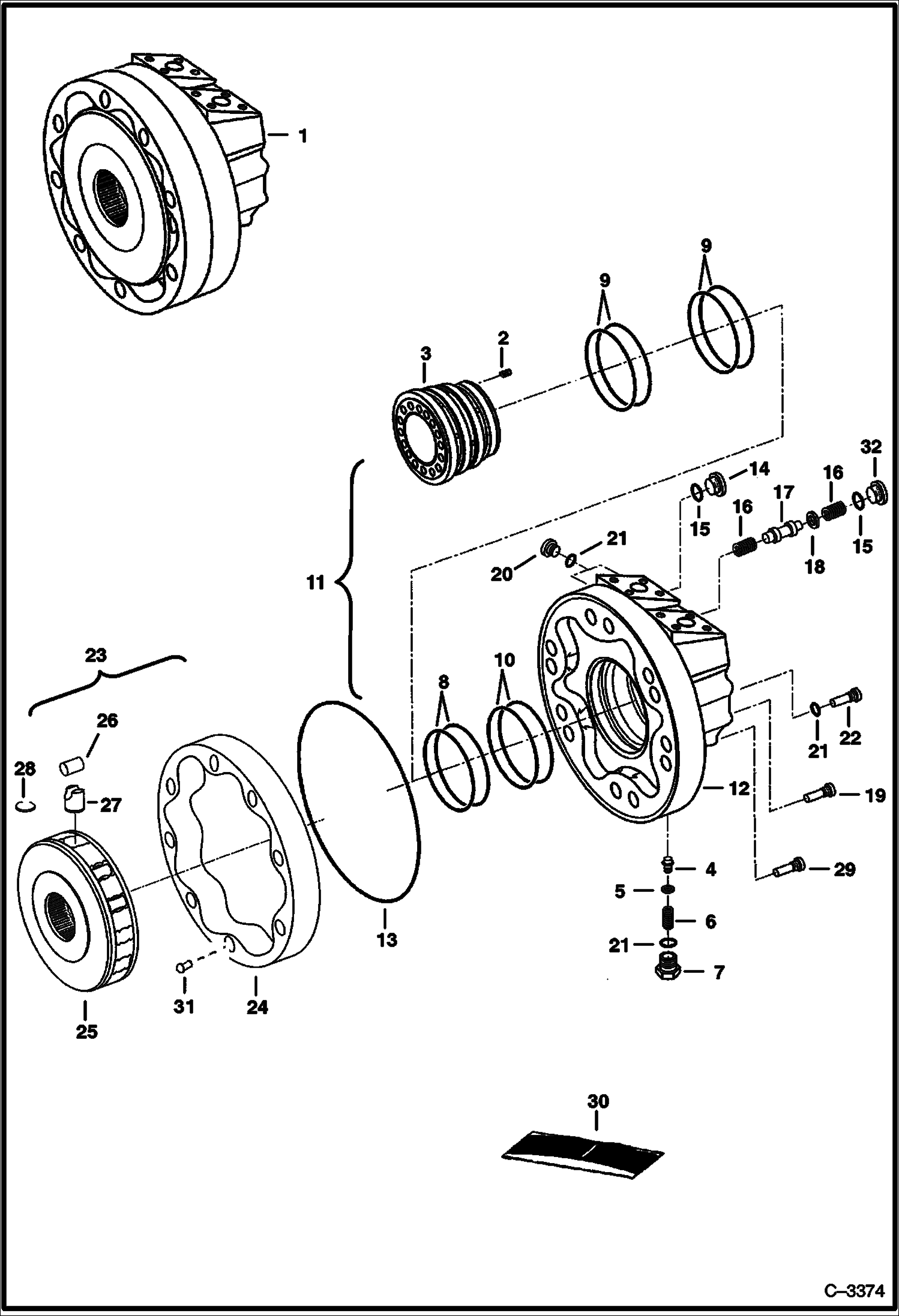

Схема запчастей Bobcat 800s - HYDROSTATIC MOTOR (Rexroth) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6672821

MOTOR, DRIVE HYD 4-bolt flange ports - Ref. 2-28

2

6674037

SPRING

3

6674184

RING

4

6675868

POPPET Was 6674342 - B

5

6674343

SHIM

6

6674344

SPRING

7

6674345

PLUG

8

6675227

SEAL W/ O-ring - Was 6674038 - B

9

6675228

SEAL W/ O-ring - Was 6674336 - B

10

6676022

SEAL W/ O-ring - 73,6 mm I.D. - Was 6674040 - B

11

6674335

HOUSING ASSY rear - Ref. 2-10,14-18 & 20-22

12

6674341

HOUSING rear

13

6674029

SEAL

14

6671845

PLUG W/Ref. 15 - Was 6671759 - B

15

6676023

O-RING Was 6671749 - B

16

6674841

SPRING Was 6674339 - A

17

6675866

SPOOL Was 6674337 - A

18

6674338

WASHER

19

6687081

SCREW Was 6675021 - A

20

6676024

PLUG W/Ref. 15 - Was 6671783 - B

21

6675869

O-RING Was 6671784 - B

22

6674340

PIN locating

23

ROTARY GROUP NLA - Order Ref. 24 & 25 - Was 6674218 - A

23

6684036

BOLT KIT W/6 Bolts & 2 Bushings

24

6675024

CAM Was 6674182 - B

25

6676953

CYLINDER BLOCK W/ pistons & rollers - Was 6674219 - D

26

ROLLER NSS - Order Ref. 25 - Was 6666358 - B

27

PISTON NSS - W/Ref. 28 - Order Ref. 25 - Was 6660026 - A

28

RING NSS - keeper - Order Ref. 25

29

6687080

SCREW Was 6675020 - A

30

6676021

KIT, SEAL Ref. 8 - 10, 13, 15 & 21 - Was 6674201 - B

31

6688449

LOCATING PIN locating

32

PLUG NLA - W/recess - Order 6689129 - Was 6671759 - B

Выбрано товаров: 33
