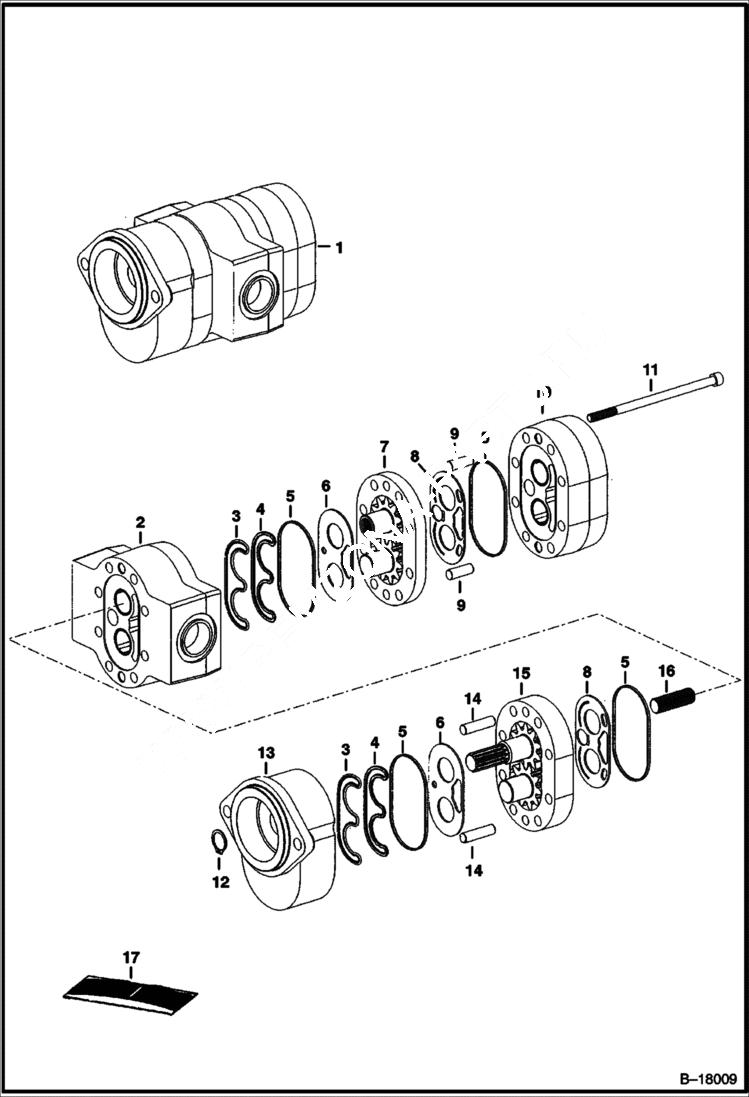

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Cast Iron) (Double Gear Pump) (S/N & Above) (S/N 514449484 - 50945, 514641171 - 41254) HIGH FLOW HYDRAULICS

1

PUMP NLA - 163D1186 - 4-Bolt Flange - Ref. 2-16 - For 4445099 - Order 6681597 Pump - Was 6678225 - A

1

GEAR PUMP NLA - 163D1307 - Was 6681597 - A

1

6687868

PUMP, GEAR DOUBLE 163D71009

2

BODY NSS

3

SEAL NSS

4

SEAL NSS

5

SEAL NSS - seal

6

WEAR PLATE NSS

7

RING NSS

8

WEAR PLATE NSS

9

PIN NSS

10

SECTION NSS - drive

11

BOLT NSS

12

SNAP RING NSS

13

COVER NSS - seal

14

PIN NSS

15

SECTION NSS

16

SHAFT NSS

17

6688326

KIT, SEAL Ref. 3-6, 8 & 12 - Was 6678733 - A
