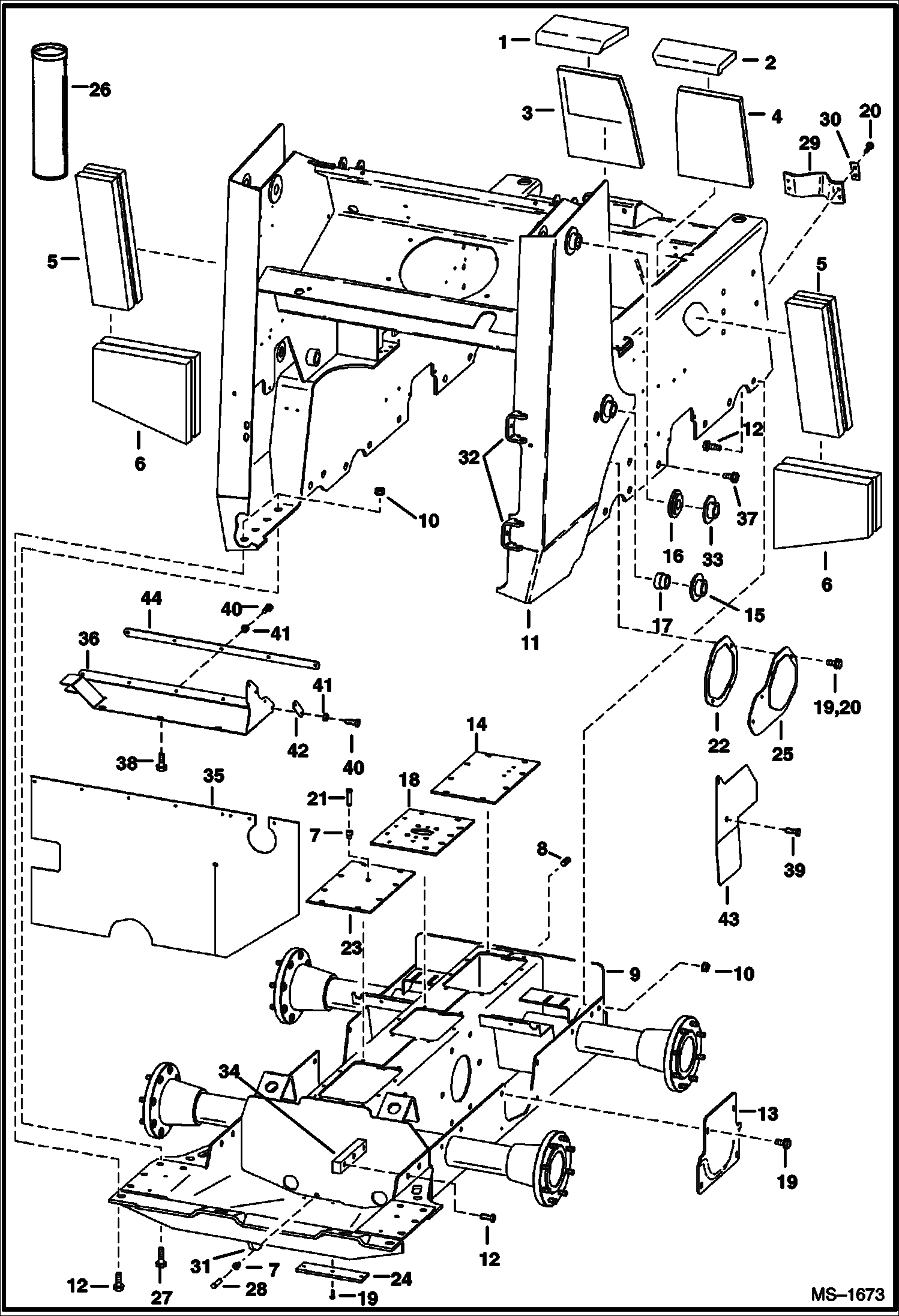

Запчасти Bobcat 800s MAIN FRAME MAIN FRAME

1

6703963

INSULATION crossmember

2

6703964

INSULATION crossmember

3

6732726

INSULATION crossmember - Was 6703965 - A

4

6732725

INSULATION crossmember - Was 6703969 - A

5

7152242

INSULATION, STRIP fender - Was 6703967 - B

6

6703968

INSULATION transmission

7

6553411

BUSHING

8

6731121

PLUG Was 11F000012B - A

9

CHAINCASE See Illustration DRIVE TRAIN/ TS1425

10

83D12

NUT

11

6709924

MAIN FRAME

12

31C1228

BOLT

13

6706808

COVER 12.80''(325,1 mm) hole pattern

13

6719201

COVER 13.80''(350,5mm) hole pattern

14

6578505

COVER See Illustration DISC BRAKE/ MS1626

15

6705047

BUSHING weld-on - Was 6702584 - B

16

6710744

BUSHING weld-on

17

6713823

BUSHING weld-on - Was 6558992 - B

18

6706683

COVER See Illustration DISC BRAKE/ MS1626

19

84G3712

BOLT 5

19

84G3712

BOLT 5 M46 pump - high flow

20

84G3716

SCREW 5

20

84G3716

SCREW 5 M46 pump - high flow

21

6680970

BREATHER Was 6670627 - A

22

SHIM NLA - for high flow machines - Order Ref. 25 - Was 6713082 - A

22

6713082

SHIM M46 pump - high flow

23

6700330

COVER See Illustration DISC BRAKE/ MS1626

24

6700182

COVER, DRAIN

25

6713311

COVER 7 sided - 4 holes

25

6719086

COVER right - Was 6717110 - A

25

6717111

COVER left

26

6633583

SEALANT, POLYURETHANE 300 ML chaincase cover

27

6673642

BOLT Was 31C001232B - B

28

6599645

PLUG, STEEL

29

6702164

SPACER flexible

30

6579106

SHIM

31

6706485

HOOK tie down - weld-on

32

6577394

BRACKET weld-on - for 2-piece rear door

32

6708987

HINGE, WELD-ON for 1-piece rear door

33

6710745

BUSHING weld-on

34

6706857

BLOCK

35

6715272

SHIELD exhaust

36

6715271

BRACKET shield

37

6718486

PLUG

38

35C616

BOLT 5

39

84G3112

BOLT 5

40

17C412

BOLT 5

41

83D4

NUT 10

42

6715268

CLAMP

43

6715273

SHIELD

44

6715269

CLAMP shield
