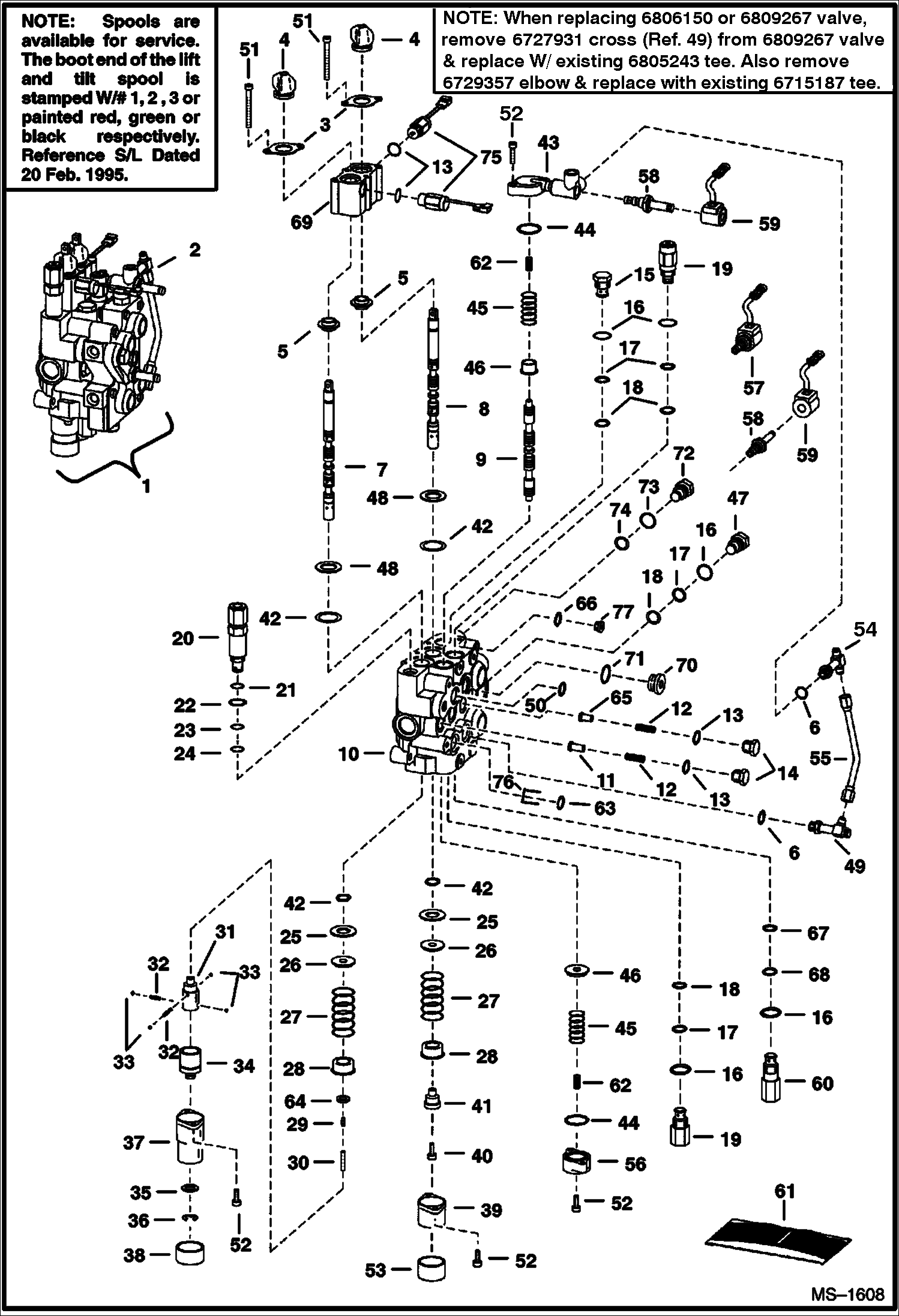

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (Spool Lock) (W/ BICS Control Valve) (S/N 514450006, 514541082, 514641202 & Below) HYDRAULIC SYSTEM

1

VALVE See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

3

6589564

RETAINER

4

6587763

BOOT

5

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

6

99K6

O RING

7

SPOOL NLA - Lift - # 1 or Red - SEE NOTE - Order 6814511 - Was 6674808 - A

7

SPOOL NLA - Lift - # 2 or Green - SEE NOTE - Order 6814511 - Was 6674809 - A

7

SPOOL NLA - Lift - # 3 or Black - SEE NOTE - Order 6814511 - Was 6674810 - A

7

6814511

SPOOL, LIFT

8

SPOOL NLA - Tilt - # 1 or Red - SEE NOTE - Order 6814512 - Was 6674814 - A

8

SPOOL NLA - Tilt - # 2 or Green - SEE NOTE - Order 6814512 - Was 6674815 - A

8

SPOOL NLA - Tilt - # 3 or Black - SEE NOTE - Order 6814512 - Was 6674816 - A

8

6815152

SPOOL, TILT Was 6811412 - A

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6678574

RELIEF VALVE port relief - W/Ref. 16-18 - Was 6673184 - A

20

VALVE NLA - main relief - W/Ref. 21-24 - pressure preset at factory - Was 6676198 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6805651

BLOCK aux

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6805243

TEE W/ 2 male JIC ends - W/Ref. 6 - For 6806150 valve

49

6727931

TEE W/ 3 male JIC ends - W/Ref. 6 - for 6809267 & 6810244 valves

50

55K204

O RING 10

51

29G444

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6805696

TEE W/Ref. 6 - tapered boss face

54

97K6

O RING flared end

55

6806496

TUBELINE

56

6588781

END CAP

57

SOLENOID NLA - W/Ref. 58 & 59 - Was 6677201 - A

58

6676249

STEM, VALVE SOLENOID Was 6666616 - B

58

6679961

NUT Coil

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT W/ nut - 10 volt - pwm

59

6676566

NUT

60

6678552

VALVE Port Relief & Anti-cav. - W/Ref. 16 - 3500 PSI - Use In Tilt Cylinder Base End Port - Was 6671632 - A

60

6673904

SEAL KIT W/Ref. 16, 67 & 68

61

6816252

SEAL KIT two spool - Ref. 4, 26, 26, 42, 48, 51 & 64 - Was 6806941 - A

61

6816253

KIT, SEAL complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 50- 52 & 63 - also Order 6816252 seal kit - Was 6809448 - A

61

6661328

SEAL KIT main relief - Ref. 21-24

61

6809425

SEAL KIT upper deck - Ref. 13 & 16-18 - Was 6586461 - A

62

6595131

SPRING .72'' OD - Red

63

55K212

O RING 10

64

54K20002

O'RING 10

65

6596569

SEAT load check

66

95K6

O'RING

67

O-RING NSS - Order Ref. 60 kit

68

O-RING NSS - Order Ref. 60 kit

69

6812031

BLOCK lift and tilt lock - Was 6805657 - A

70

90K8

PLUG W/Ref. 71 - Was 90KV00008B - A

71

95K12

O-RING

72

6806561

PLUG W/Ref. 73 & 74

73

79K7

O RING 10

74

25K20012

O RING 10 Was 58K-12 - B

75

SOLENOID NLA - spool lock - W/Ref. 13 - 3 in. (76,2 mm) wire - Order 6677383 - Was 6674786 - A

75

6677383

SOLENOID, LOCK SPOOL Spool lock - W/Ref. 13 - 5''(127mm) wire

76

6668791

ORIFICE 0.185

77

6812171

PLUG W/Ref. 66 - Was 90KV00005B - B
