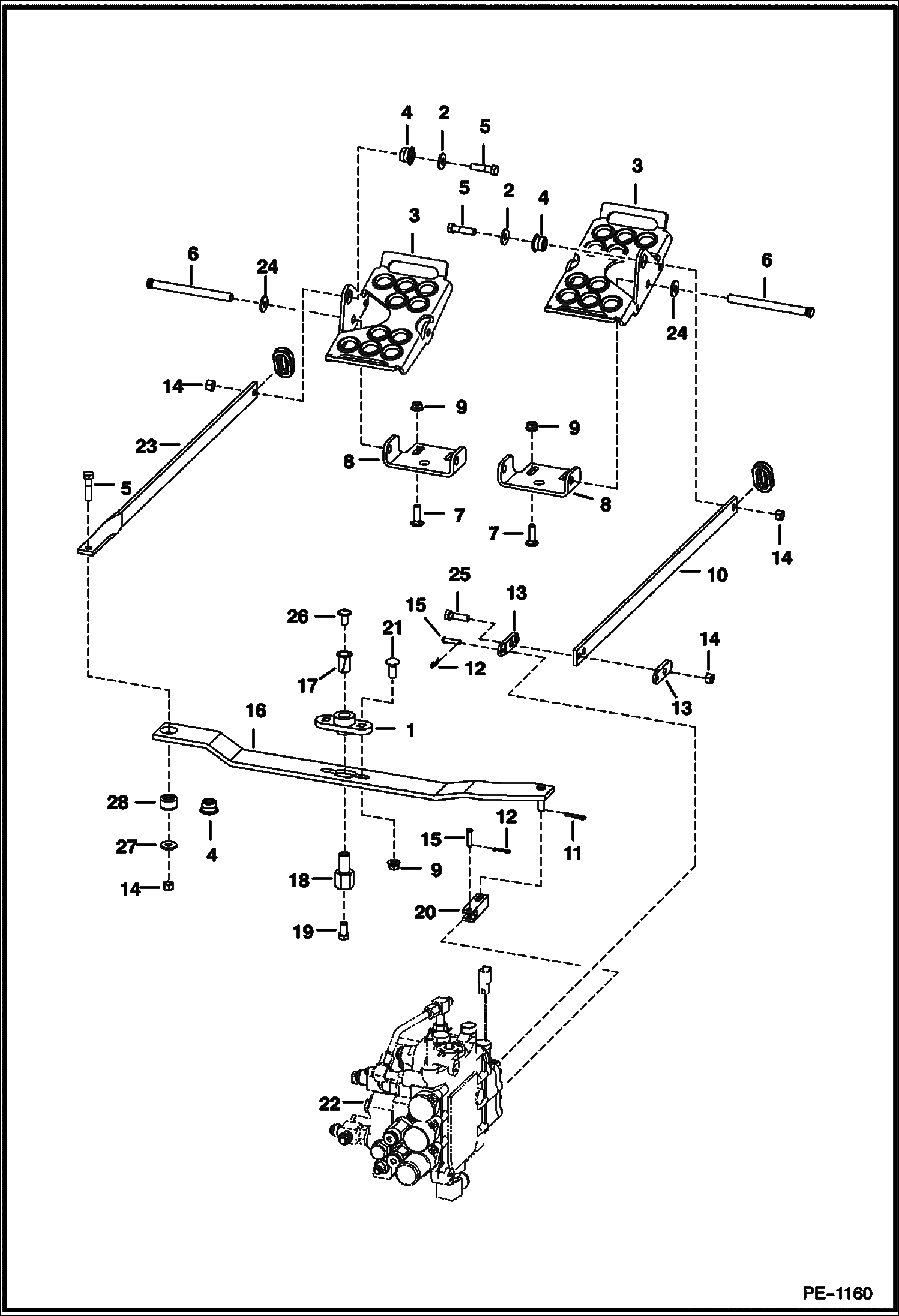

Запчасти Bobcat 800s CONTROL PEDALS HYDRAULIC SYSTEM

1

6708043

BUSHING

2

6563914

WASHER

3

7115219

PEDAL Was 6726680 - A

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

6564657

PIN

7

37C620

BOLT Was 7C000620B - B

8

6726679

MOUNT Was 6564658 - A

9

57D6

NUT 5

10

6717823

BAR Was 6710329 - B

11

1306637

CLIP

12

6513495

COTTER PIN

13

6708009

LINK

14

95D6

NUT

15

6564654

PIN

16

LEVER NLA - Hole - Order 6717825 & 6678067 - Was 6717825 - A

16

6717825

LEVER Hole

17

6512026

BUSHING

18

6718283

RETAINING NUT Was 6706104 - B

19

17C612

BOLT 5

20

6706105

YOKE

21

37C616

BOLT

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1608

23

6719305

BAR Was 6710328 - B

24

25E21

WASHER 5 Used if serrations on pins are too long

25

17C620

BOLT

26

6665839

BOLT

27

619021

WASHER, 5

28

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A
