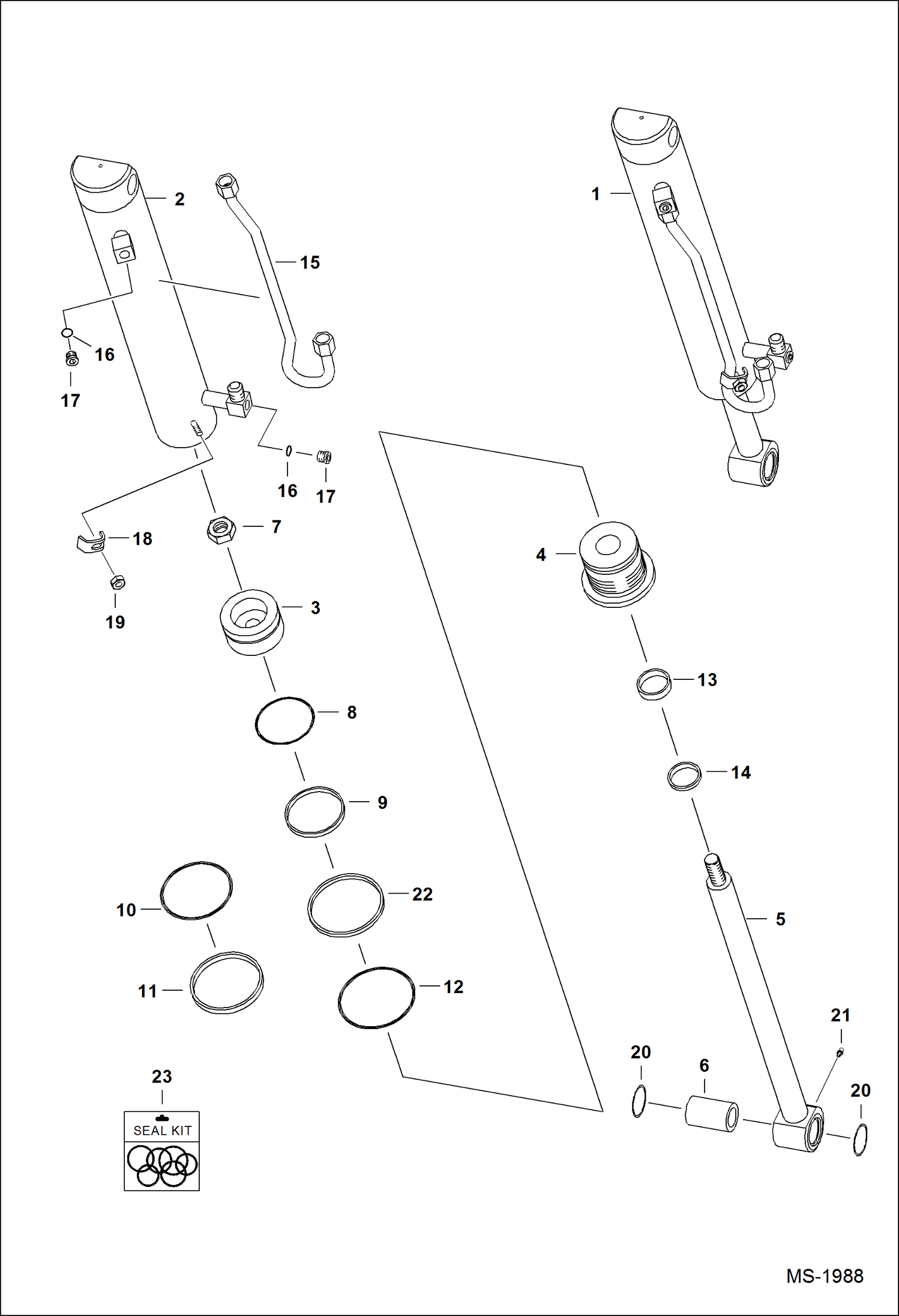

Запчасти Bobcat 800s TILT CYLINDER HYDRAULIC SYSTEM

1

6804674

CYLINDER, TILT tilt - Ref. 2-20

2

6596974

TUBE, CASE CYL TILT 3.5'' (88,9mm) I.D.

3

6800468

PISTON

4

6800469

HEAD

5

6804678

SHAFT, ROD CYL TILT W/Ref. 6

6

6805150

BUSHING, PRESS FIT wear - W/grease fitting hole

7

6810539

NUT Was 6804592 - A

8

25K30300

O RING 10 Was 54K30300 - A

9

1530265

PISTON SEAL

10

O RING 10 NLA - Order Ref. 22 - Was 58K338 - B

11

RING NLA - back-up - Order Ref. 22 - Was 73K338 - B

12

82K238

O-RING Was 58K-238 - A

13

6669267

SEAL

14

6687000

WIPER ROD wiper - Was 6669268 - A

15

6532590

TUBELINE, HYD

16

95K6

O'RING tapered boss face

16

75K6

O-RING Flat Boss Face

17

90KV5

PLUG W/Ref. 16 - tapered boss face - allen socket head

17

90K5

PLUG W/Ref. 16 - flat boss face - allen socket head

17

6812171

PLUG W/Ref. 16 - flat boss face - hex head

18

6562266

CLAMP

19

95D6

NUT

20

6654117

SEAL, OIL 51 mm (2'') OD

20

225855

SEAL, OIL 10 38 mm (1.5'') OD

21

10H35

FITTING, GREASE 10

22

7008353

SEAL, QUAD

23

7196898

KIT, SEAL Ref. 7-9, 12-14 & 22 - Was 7138006 - A
