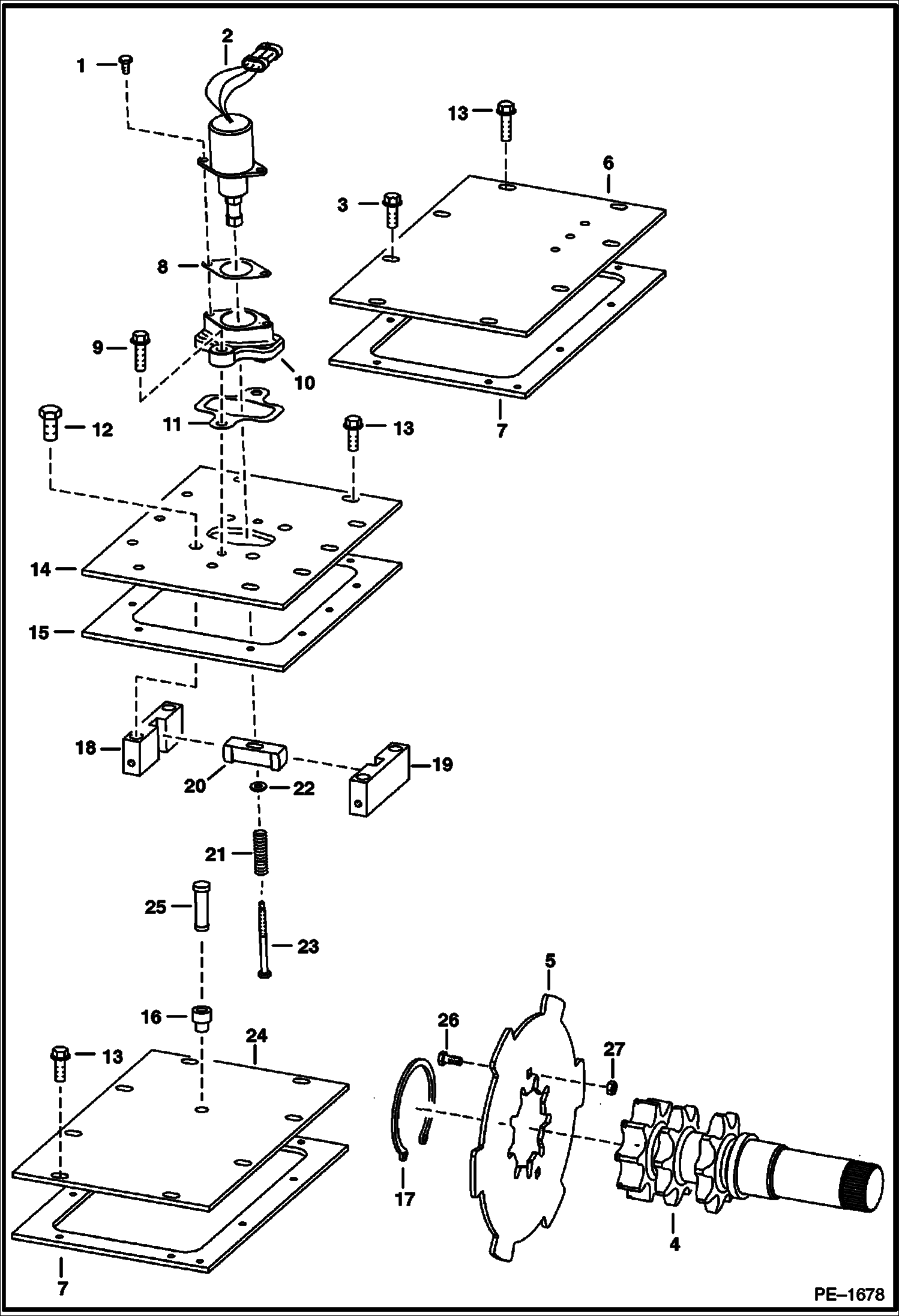

Запчасти Bobcat 800s DISC BRAKE (S/N 514446001, 514541001, 514641001 & Above) DRIVE TRAIN

1

17C412

BOLT 5

2

6681512

SOLENOID Was 6667992 - A

3

84G3712

BOLT 5

4

6706805

SHAFT, TRANS See Illustration MOTOR CARRIER/ TS1227

5

6715630

BRAKE disc

6

6729173

COVER See Illustration MAIN FRAME/ TS1028

7

6703097

GASKET, TRANS COVER

8

6706737

GASKET

9

84G3720

BOLT

10

6706718

MOUNT

11

6708016

GASKET

12

47C820

BOLT

13

84G3716

SCREW 5

14

6706683

COVER See Illustration MAIN FRAME/ TS1028 single speed

14

6725496

COVER See Illustration MAIN FRAME/ TS1028 two speed

15

6708070

GASKET, COVER BRAKE

16

6553411

BUSHING

17

6662298

RING, RETAINER

18

6719056

BLOCK guide - LH

19

6719057

BLOCK guide - RH

20

6714278

WEDGE, LOCK TRACTION for brake disc

21

6708018

SPRING

22

25E13

WASHER 5

23

6708267

BOLT

24

6700330

COVER See Illustration MAIN FRAME/ TS1028

25

6680970

BREATHER See Illustration MAIN FRAME/ TS1028 Was 6670627 - A

26

37C512

BOLT carriage

27

59D5

NUT 5
