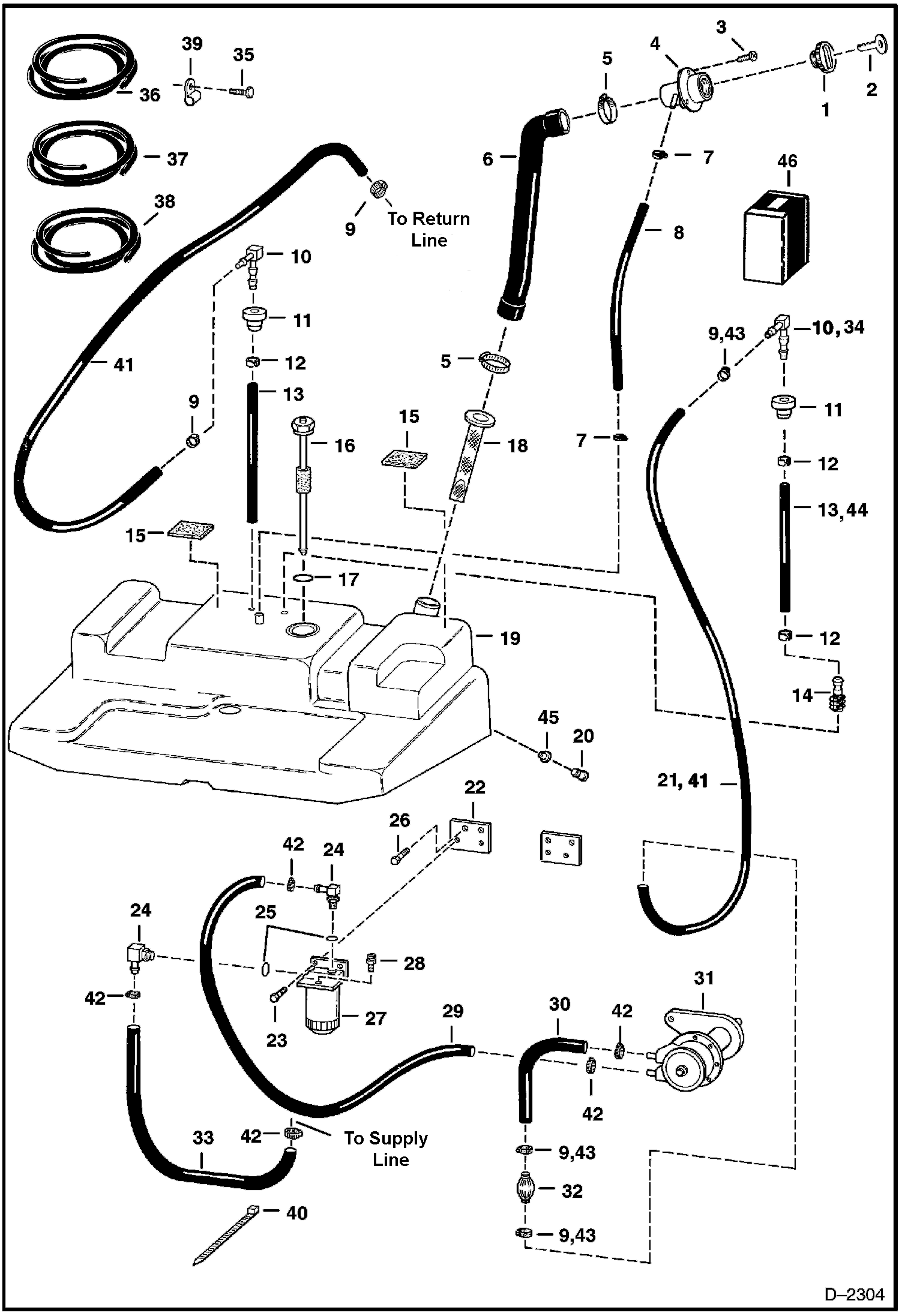

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

6661114

CAP. DIESEL green fuel fill - W/Ref. 2

1

6661696

CAP, FUEL LOCKING locking - code PK510 - W/Ref. 2

2

6587458

KEY code PK510

3

6706517

SCREW

4

6701449

FILLER TUBE

5

42H32

HS CLAMP5 Was 42H000024B - B

6

6728141

HOSE Was 6710277 - A

7

42H10

HOSECLAM5

8

HOSE NLA - 38'' (965,2 mm) long - Order Ref. 36

9

5HM13

CLAMP Was 6515575 - A

10

6598908

ELBOW outlet .25'' OD - Was 6681462 - A

11

6553411

BUSHING 0.38'' ID

12

6661213

RING, COMPRESSION .324'' (8.23 mm) ID

13

6569752

HOSE BULK/FT 13'' (330,2 mm) - Was 6579554 - A

14

6650239

SCREEN, FUEL PICKUP spring coiled

15

6578278

PAD self adhesive one side

16

SENSOR See Illustration ENGINE ELECTRICAL/ PE1326 NLA - fuel - W/Ref. 17 - Was 6669642 - A

16

7179839

SENSOR FUEL See Illustration ENGINE ELECTRICAL/ PE1326 W/Ref. 17 - Was 6680438 - A

17

6717579

GASKET rubber

18

7120881

SCREEN, FILLER Was 6569219 - A

19

6708527

TANK, FUEL

20

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

21

HOSE NLA - 30'' (762 mm) long - Order Ref. 37

22

6710488

MOUNT

23

53CM830

BOLT

24

6715183

ELBOW W/Ref. 25 - check boss face to determine correct replacment o-ring

25

99K5

O-RING tapered boss face

25

79K5

O RING 10 flat boss face

26

43C512

BOLT

27

6667353

FILTER ASSY W/Ref. 28

27

6667352

FILTER, FUEL W/SEPARATOR 12

27

72F1

FITTING

28

6658180

PLUG, BLEED

29

HOSE NLA - 14'' (356mm) long - Order Ref. 37

29

HOSE NLA - 13'' (330mm) long - Order Ref. 37

30

HOSE NLA - 9.5'' (241mm) long - Order Ref. 37

30

HOSE NLA - 9.25'' (235mm) long - Order Ref. 38

31

6666522

FUEL PUMP See Illustration FUEL INJECTION SYSTEM/ B17430

32

6667170

PUMP 193 mm (7.6'') long

32

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

33

HOSE NLA - 17.5'' (445mm) long - Order Ref. 37

34

6726567

ELBOW outlet .405'' OD - Was 6666302 - B

35

1CM816

BOLT

36

6578172

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot - .3125'' ID

38

6577821

HOSE bulk - sold per foot - .25'' ID

39

30H30

CLAMP

40

6610510

TIE

41

HOSE NLA - 29.5'' (749mm) long - Order Ref. 38

41

HOSE NLA - 29.5'' (749mm) long - Order Ref. 38

42

5HM14

CLAMP

43

5HM15

CLAMP

44

6729854

TUBE 12.5'' (317,5 mm) long

45

6717402

BUSHING 0.54'' ID
