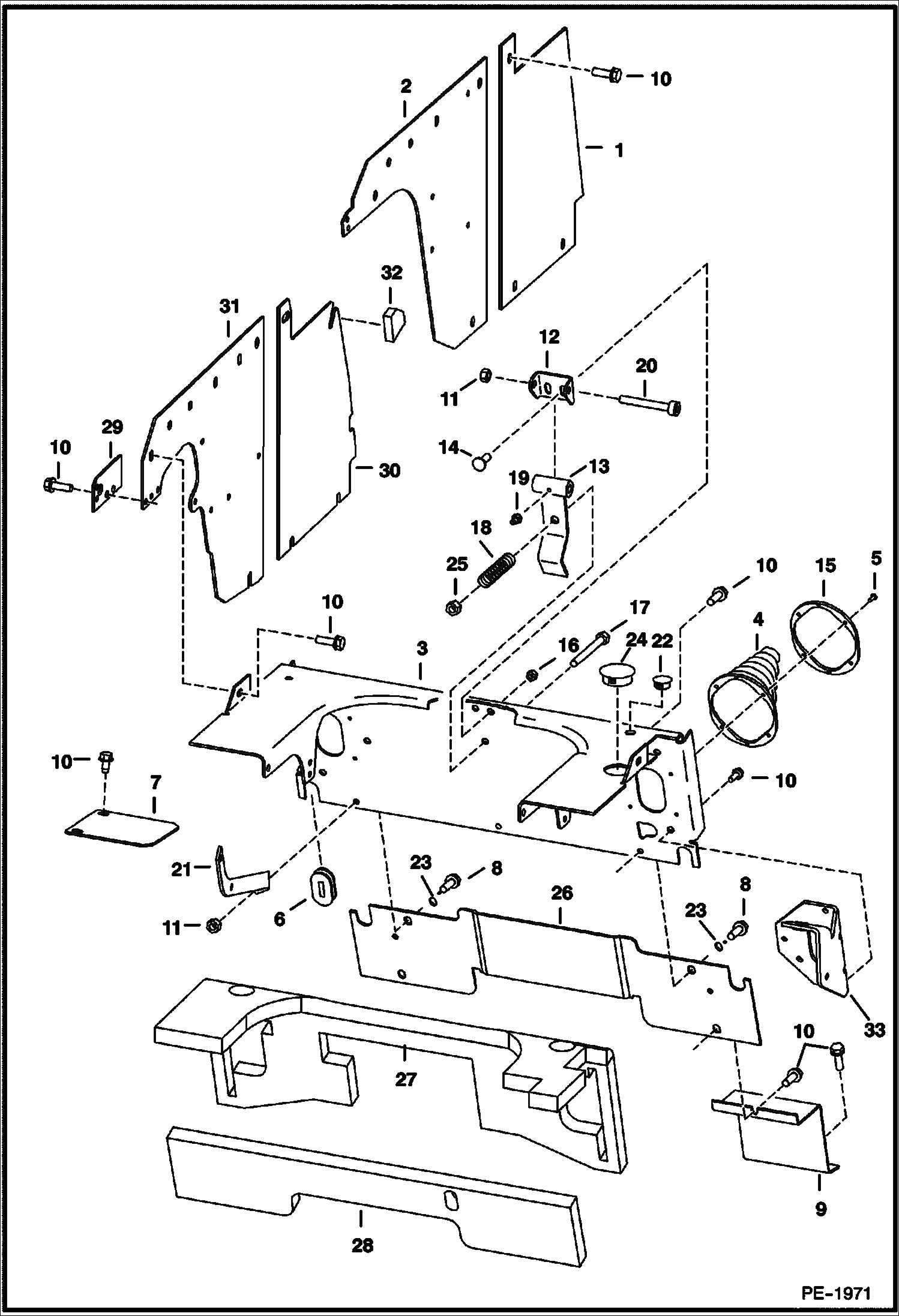

Запчасти Bobcat 800s PANELS MAIN FRAME

1

6729786

PANEL Was 6718487 - A

2

6729787

PANEL LH & RH - Was 6719376 - A

2

6729787

PANEL RH

2

6731838

PANEL LH

3

7106707

SHIELD Also Order 6734520 cover - Was 6718305 - A

4

6532127

BOOT W/Ref. 15

5

6630207

RIVET 5

6

6577961

GROMMET

7

6729774

COVER 5.31'' x 4.84'' - 2 mounting holes - (A220 Chaincase)

8

84G3716

SCREW 5

9

6700772

PANEL

10

84G3712

BOLT 5

11

95D6

NUT

12

6701951

MOUNT

13

6701950

ARM

14

10C512

BOLT

15

PLATE NLA - Order Ref. 4

16

59D5

NUT 5

17

17C664

BOLT

18

6505082

SPRING

19

10H25

FITTING, GREASE 5

20

38C836

BOLT

21

6703551

BRACE

22

6657719

PLUG 0.75'' dia hole - Was 6649949 - B

22

6648348

PLUG 0.81'' dia hole

23

616783

WASHER

24

6707674

PLUG for 1.25'' (31.8 mm) dia hole

25

59D6

NUT

26

6718915

PANEL Was 6716865 - B

27

6716800

INSULATION

28

6701674

INSULATION panel

29

6732449

PLATE Cable - 4.12'' x 2''

30

6732177

PANEL front

31

6731899

PANEL rear

32

6733529

SEAL .5'' (12.7 mm) thick - Use W/Ref. 30

33

BRACKET See Illustration HAND CONTROLS/ B18013 R.H. - Was 6733022 - A

33

BRACKET See Illustration HAND CONTROLS/ B18013 L.H. - Was 6733024 - A
