Запчасти Bobcat 800s STROBE LIGHT ACCESSORIES & OPTIONS

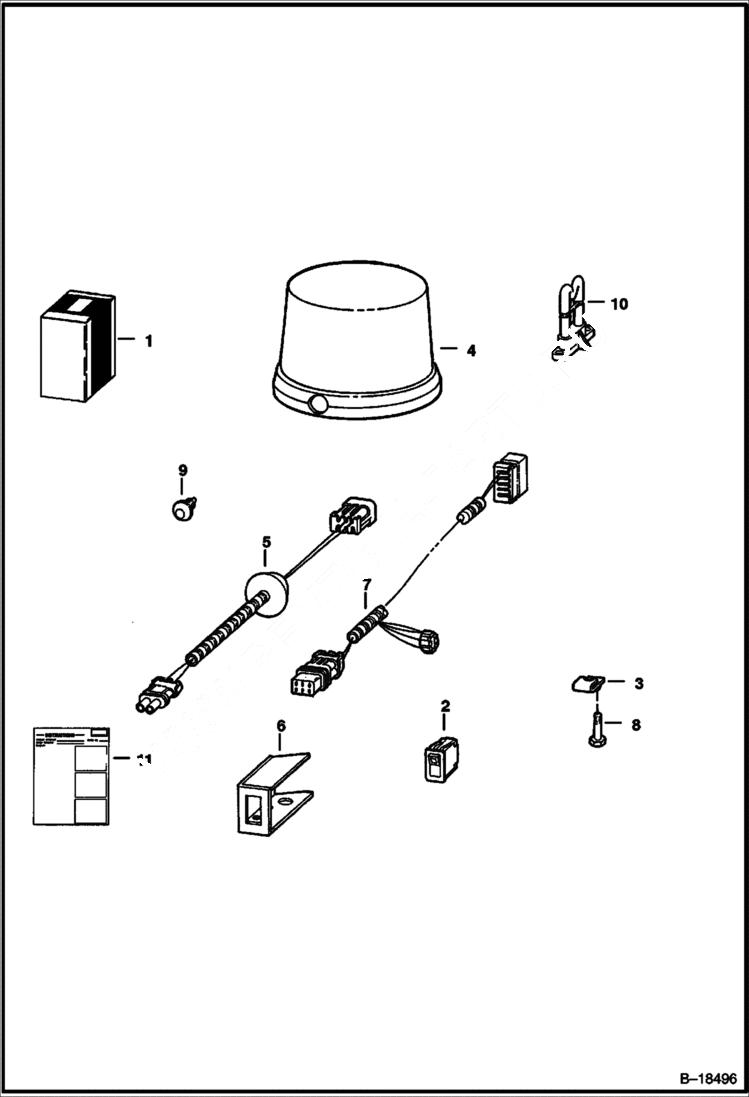

Схема запчастей Bobcat 800s - STROBE LIGHT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6712696

STROBE KIT strobe light - Ref. 2-11

2

6668816

SWITCH

3

7160765

NUT Was 6660988 - A

4

LIGHT NLA - Strobe - magnetic base - Was 6669191 - A

5

6708318

HARNESS beacon

6

6711708

MOUNT switch

7

6712258

HARNESS strobe

8

35C412

BOLT

9

6669308

RETAINER

10

6665022

FLASH TUBE bulb - 3-pin rectangle base

10

6675858

FLASH TUBE bulb - 5-pin or 8-pin round base

11

6724071

INSTRUCTIONS

Выбрано товаров: 12
