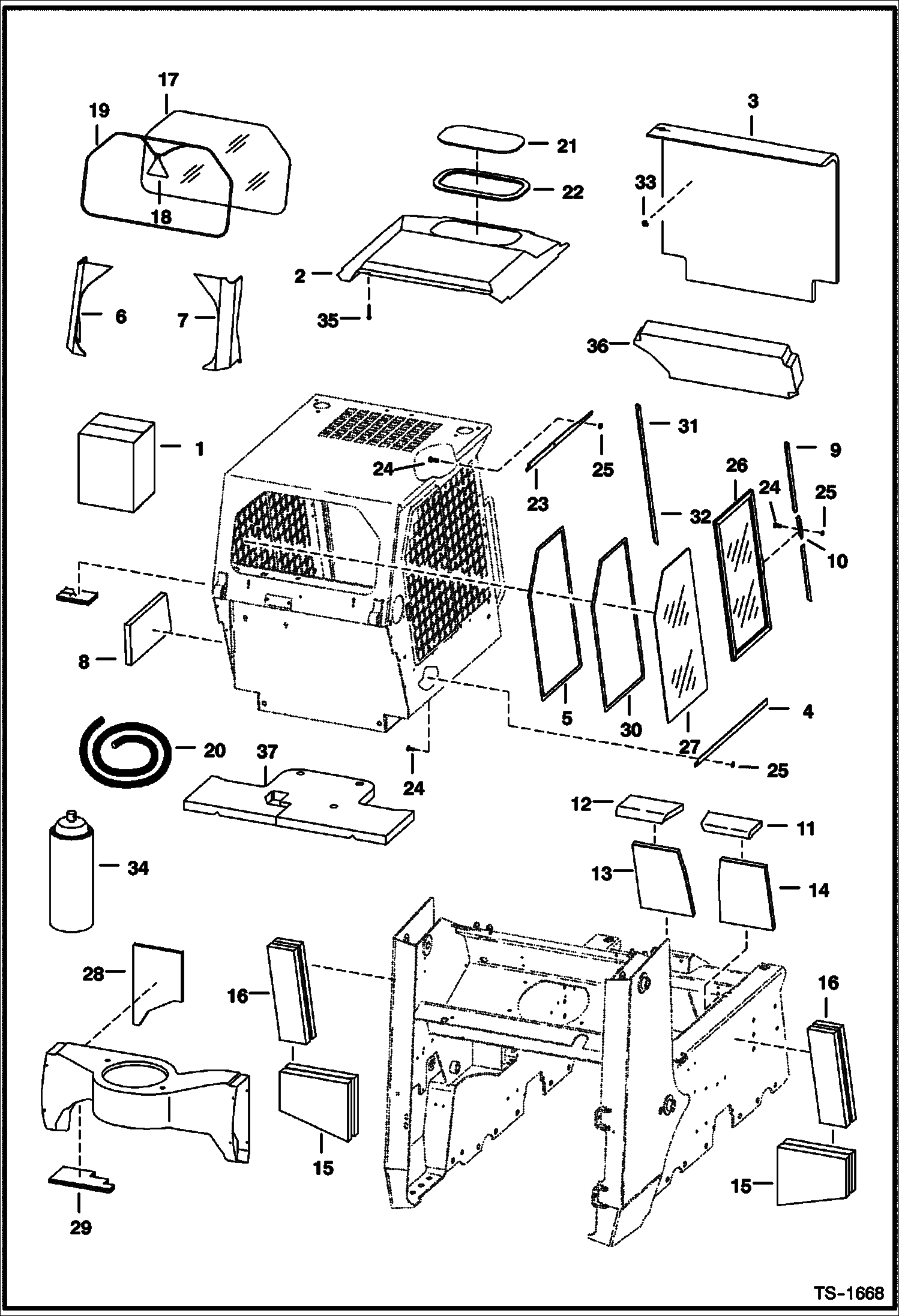

Запчасти Bobcat 800s SOUND OPTION (85 Decibels) ACCESSORIES & OPTIONS

1

SOUND KIT SALES - Ref. 2-20 & 22

2

6706155

INSULATION cab top - Use W/Ref. 33

2

6715094

INSULATION cab top - Use W/Ref. 33 & 35 - for side console - Was 6712537 - A

3

6708682

INSULATION cab back - Use W/Ref. 33

4

6661689

TRACK LH

4

6661690

TRACK RH

5

6631549

HOOK scotchmate

6

6715098

INSULATION cab back - L.H. - Use W/Ref. 33 - Was 6706156 - A

7

6715097

INSULATION cab back - R.H. - Use W/Ref. 33 - Was 6706157 - A

8

6703451

INSULATION cab side - Use W/Ref. 34

9

6630919

TRACK R.H.

10

6630924

BRACKET

11

6703964

INSULATION crossmember

12

6703963

INSULATION crossmember

13

6732726

INSULATION crossmember - Was 6703965 - A

14

6732725

INSULATION crossmember - Was 6703969 - A

15

6703968

INSULATION transmission

16

7152242

INSULATION, STRIP fender - Was 6703967 - B

17

WIND.REAR NLA - Order 6729730 window - Also Order 2134mm (84'') of 6675387 seal and 6554149 cord - Was 6701651 - A

18

6731478

EXIT TAG Was 6559515 - A

19

EXTRUSION NLA - 81.5'' (2070mm) long - Order Ref. 20

19

CORD NLA - 81.5'' (2070,1 mm) long - Order Ref. 20 - Also Order Ref. 18 (6731478 exit tag)

20

6665568

EXTRUSION bulk - sold per foot

20

6554149

CORD, BULK/FT bulk - sold per foot

21

6705735

WINDOW top

22

6664351

SEAL Use W/cab headliner

22

6665012

SEAL Use W/O cab headliner

23

6703159

TRACK RH

23

6703160

TRACK LH

24

35C410

BOLT 5

25

83D4

NUT 10

26

6658143

WINDOW LH

26

6658142

WINDOW RH

27

6702731

WINDOW, CAB

28

6719332

INSULATION blower housing - Was 6703453 - A

29

INSULATION NLA - blower housing - Was 6703454 - A

30

6631548

LOOP scotchmate

31

6706744

TRACK LH - top half

32

6706745

TRACK LH - bottom half

33

6664310

CLIP

34

6652818

ADHESIVE insulation - 24 oz. spray can

35

6669308

RETAINER snap-in - for 6712537 insulation only

36

6727299

INSULATION cab back - Was 6715096 - B

37

6715095

INSULATION seat pan
