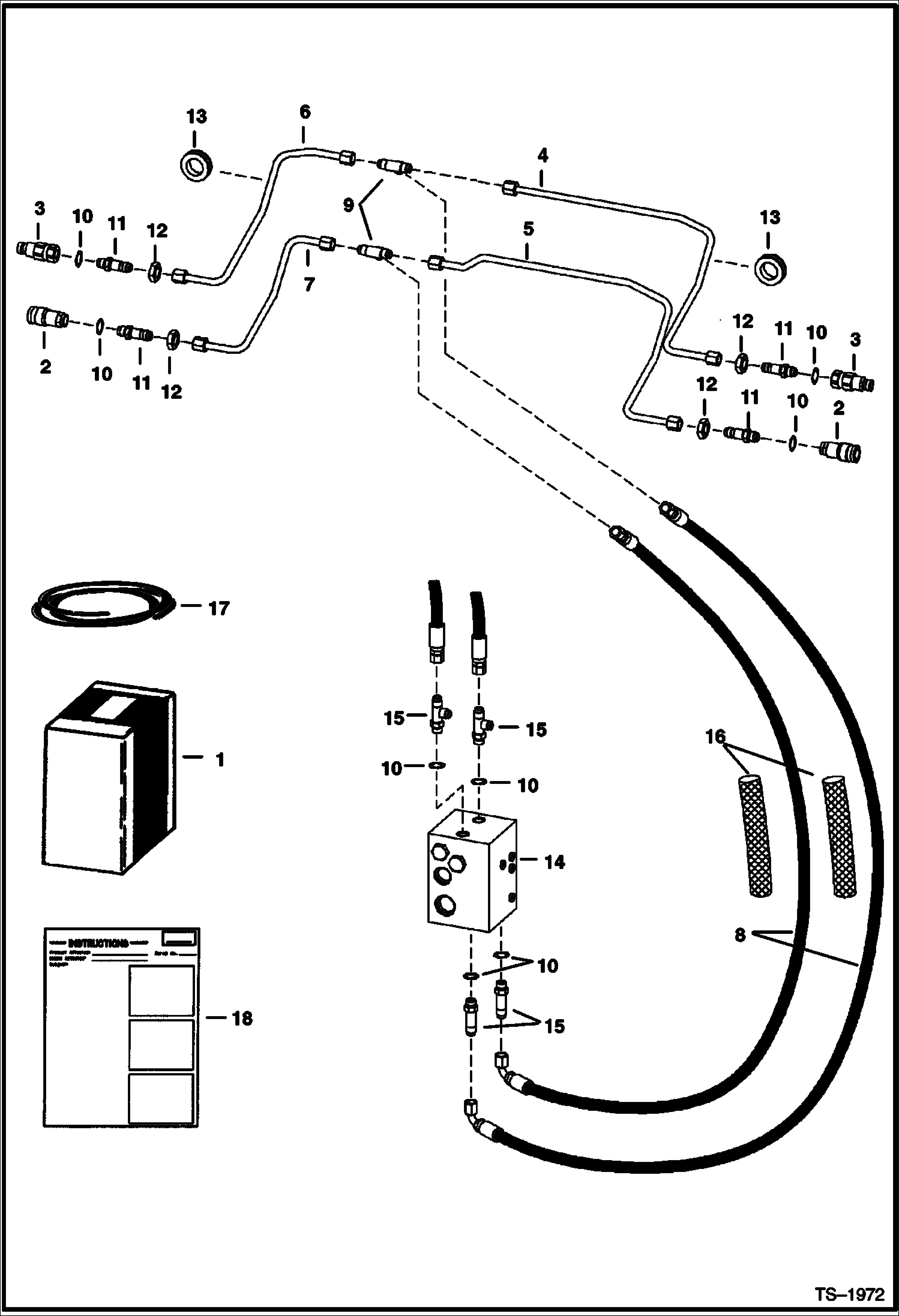

Запчасти Bobcat 800s REAR AUXILIARY HYDRAULICS KIT (High Horsepower Hydraulics) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-13 & 18 - Order components - Was SALES 6713805

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6717952

TUBELINE Was 6711647 - A

5

6713255

TUBELINE

6

6717953

TUBELINE Was 6711649 - A

7

6713256

TUBELINE

8

6714879

HOSE Was 6712241 - A

9

10K5

TEE

10

79K6

O RING 10 flat boss face

10

99K6

O RING tapered boss face

11

45K5

FITTING

12

86F5

NUT

13

6515603

GROMMET

14

6669203

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R diverter - not in kit - Was 6665572 - B,D

15

21K5

TEE W/Ref. 10 - flat boss face - not in kit - Was 16K000005B - B,D

15

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 10 - tapered boss face - not in kit - Was 21KV00005B - A

15

97K6

O RING flared end - not in kit

16

SHIELD NLA - 61'' (1550mm) long - Order Ref. 17

17

6665878

SHIELD bulk - sold per foot - 1.35'' (34,4mm) I.D.

18

6900089

INSTRUCTIONS
